With Consult-II

  1. Turn ignition switch to "ON". (Do not start engine.)
  2. Select "DATA MONITOR" mode for A/T with CONSULT-II.
  3. Start engine.
  4. Run engine for at least 2 consecutive seconds at idle speed.
  5. If DTC is detected, go to DIAGNOSTIC PROCEDURE .

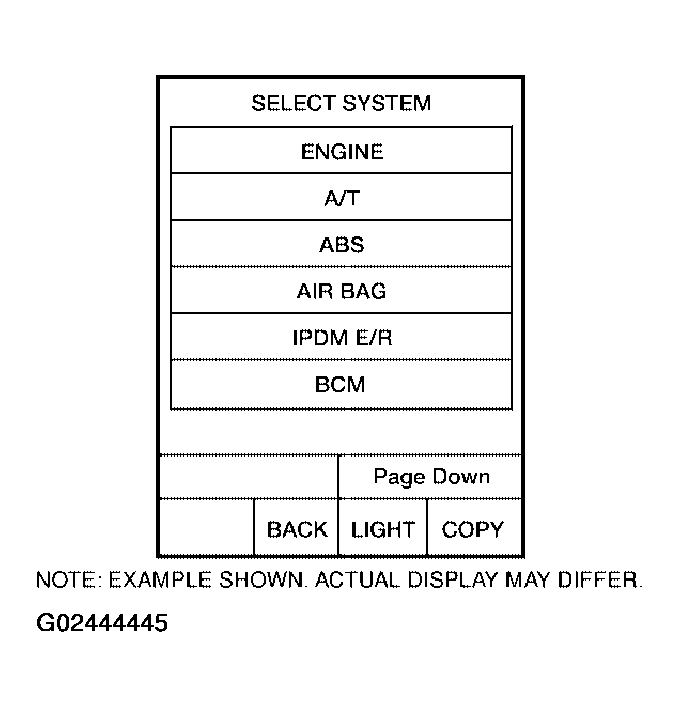

    Fig 1: CONSULT-II Select System Screen
    G02444445Courtesy of NISSAN MOTOR CO., U.S.A.
