Diagnostic Procedure

CHECK DTC
WITH CONSULT-II
1. Turn ignition switch "ON". (Do not start engine.)
2. Select "SELF-DIAG RESULTS" mode for "A/T" with CONSULT-II.
3. Touch "ERASE".
4. Turn ignition switch "OFF" and wait at least 10 seconds.
5. Perform DTC CONFIRMATION PROCEDURE .
Is the "TCM.RAM" displayed again?
- YES: Replace the control valve with TCM. Refer to Control Valve With TCM and A/T Fluid Temperature Sensor 2 .
- NO: INSPECTION END

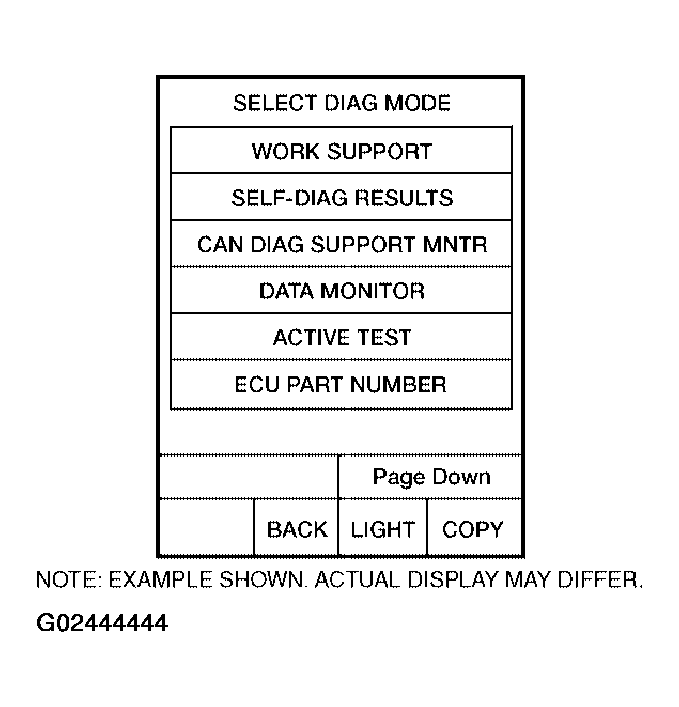

Fig 1: CONSULT-II Select Diag Mode Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
