Stop Lamp Switch
Check continuity between terminals of the stop lamp switch harness connector.

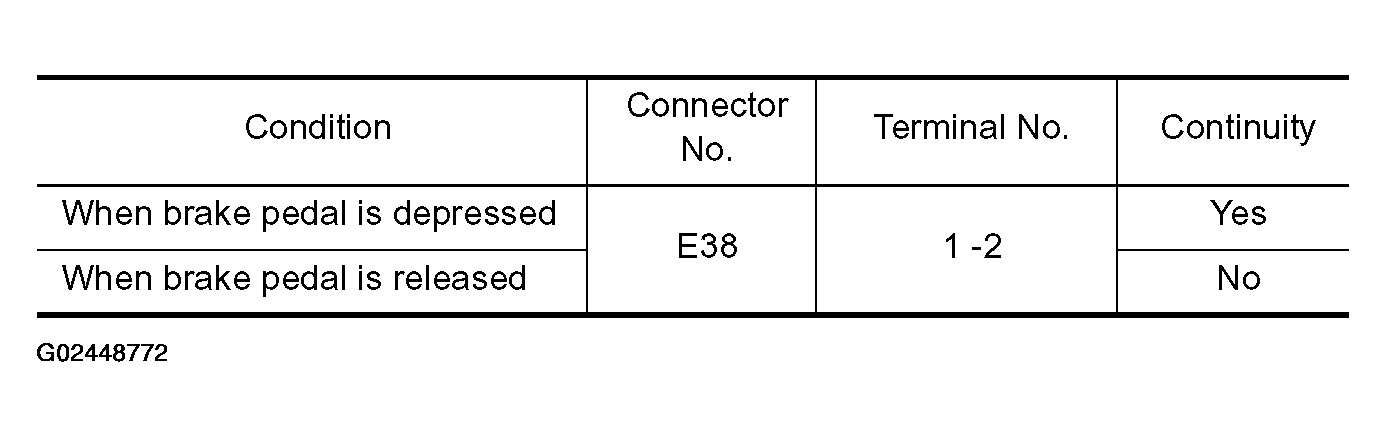

Fig 1: Stop Lamp Switch Continuity Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Check stop lamp switch after adjusting brake pedal.

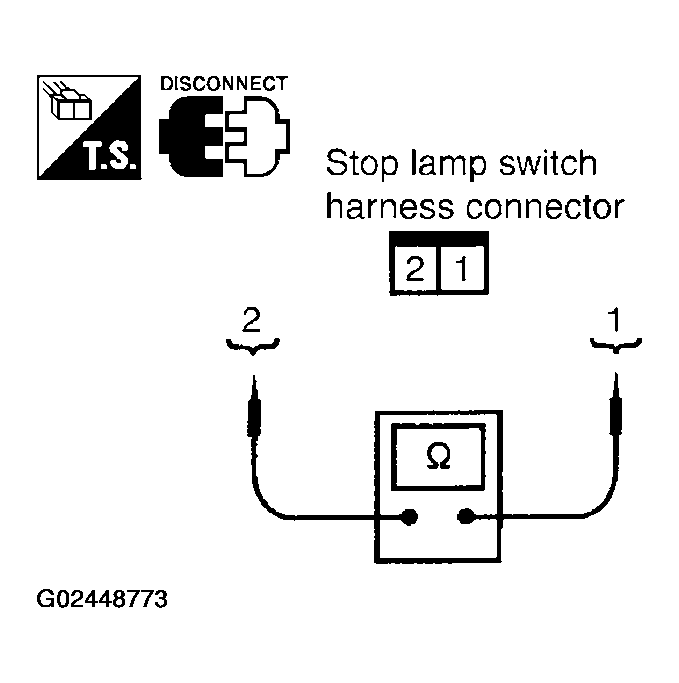

Fig 2: Checking Stop Lamp Switch Continuity
Courtesy of NISSAN MOTOR CO., U.S.A.
