Key Switch

Check continuity between terminals of the key switch and key lock solenoid.

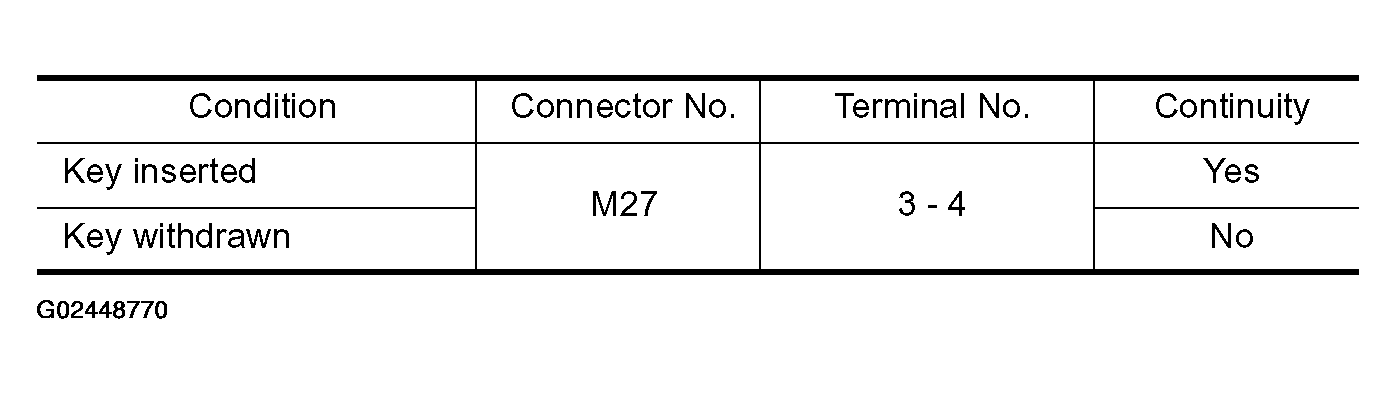

Fig 1: Key Switch Continuity Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

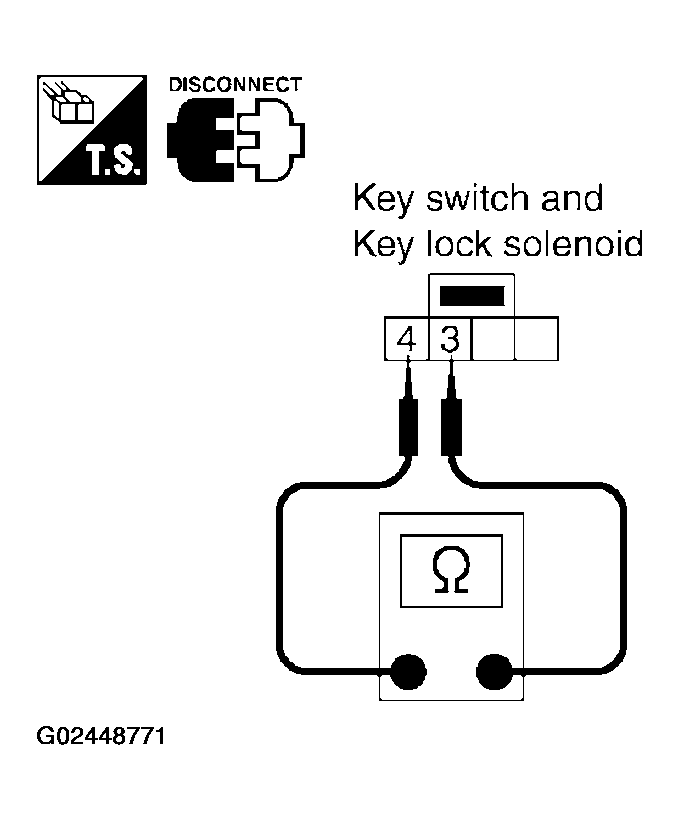

Fig 2: Checking Key Switch Continuity
Courtesy of NISSAN MOTOR CO., U.S.A.
