Key unlock

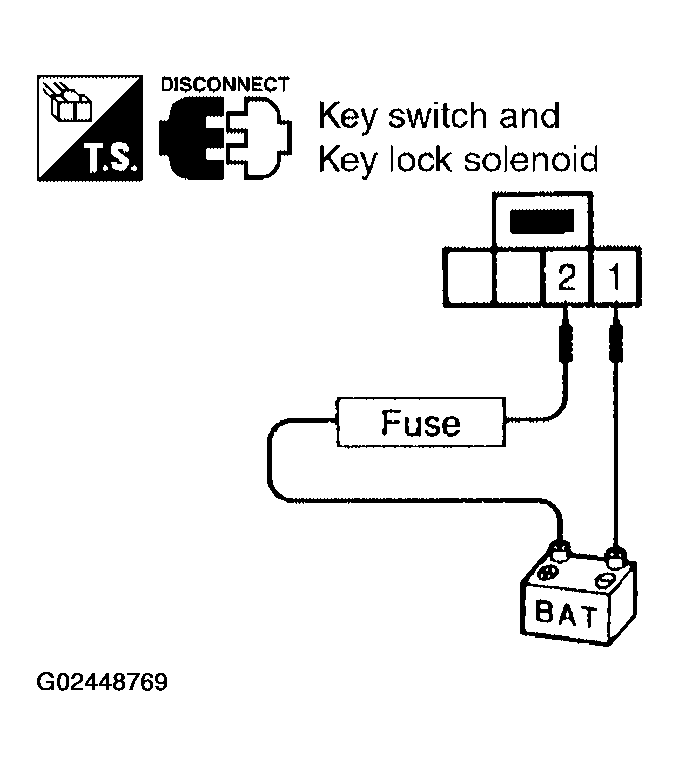

- Check operation by applying battery voltage to key switch and key lock solenoid.
CAUTION:
Be careful not to cause burnout of the harness.
KEY UNLOCK CONNECTOR TERMINALS CONNECTION
| Connector No. |
Terminal No. |
| M27 |
2 (Battery voltage) - 1 (Ground) |
Courtesy of NISSAN MOTOR CO., U.S.A.
