Detention Switch

For key:

• Check continuity between terminals of the A/T device.

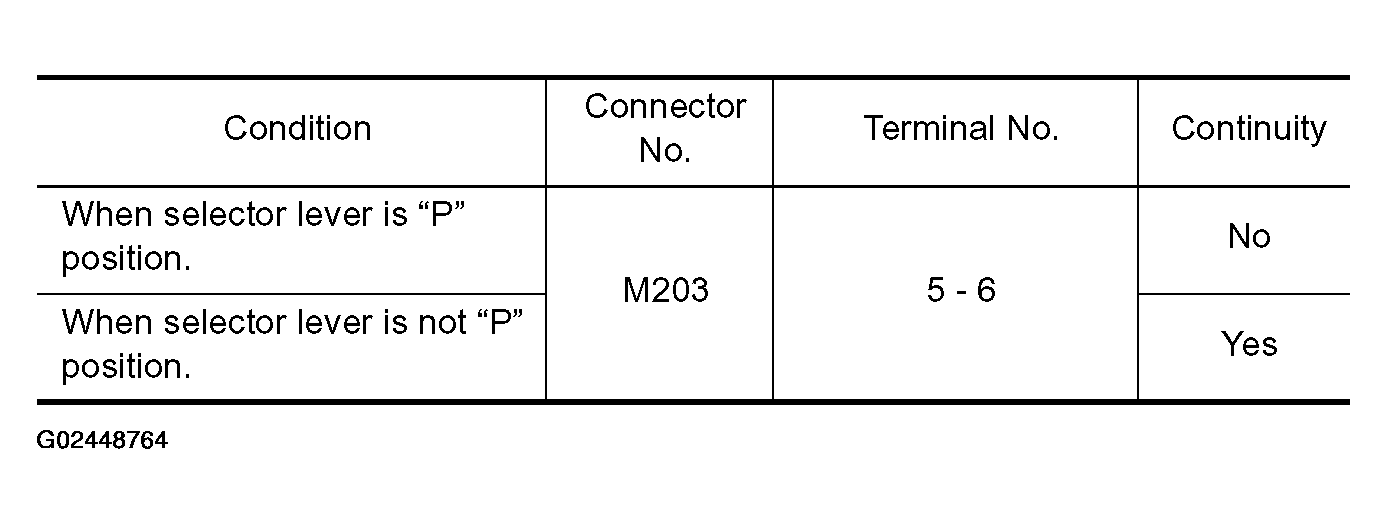

  Fig 1: Detention Switch Continuity Chart - For Key

  Courtesy of NISSAN MOTOR CO., U.S.A.

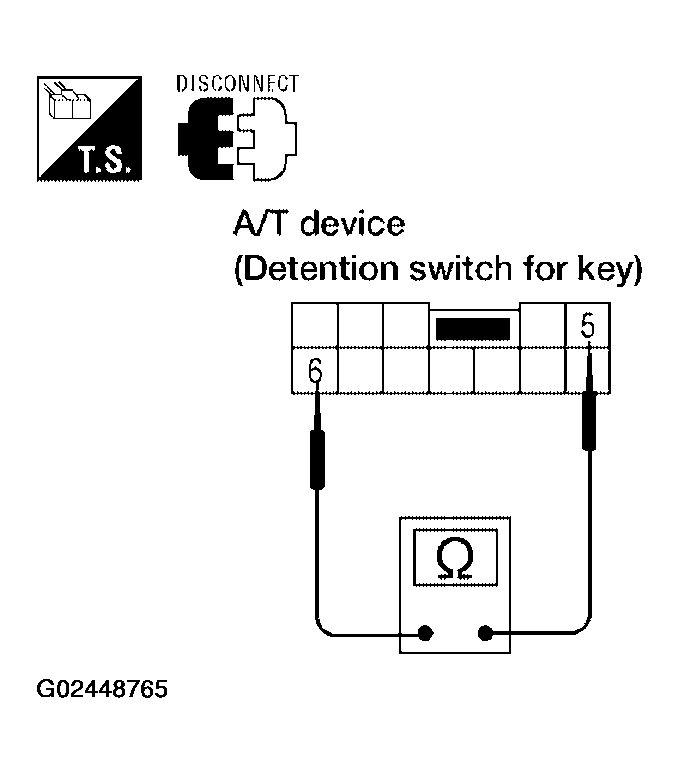

  Fig 2: Checking Detention Switch Continuity - For Key

  Courtesy of NISSAN MOTOR CO., U.S.A.

For shift:

• Check continuity between terminals of the A/T device.

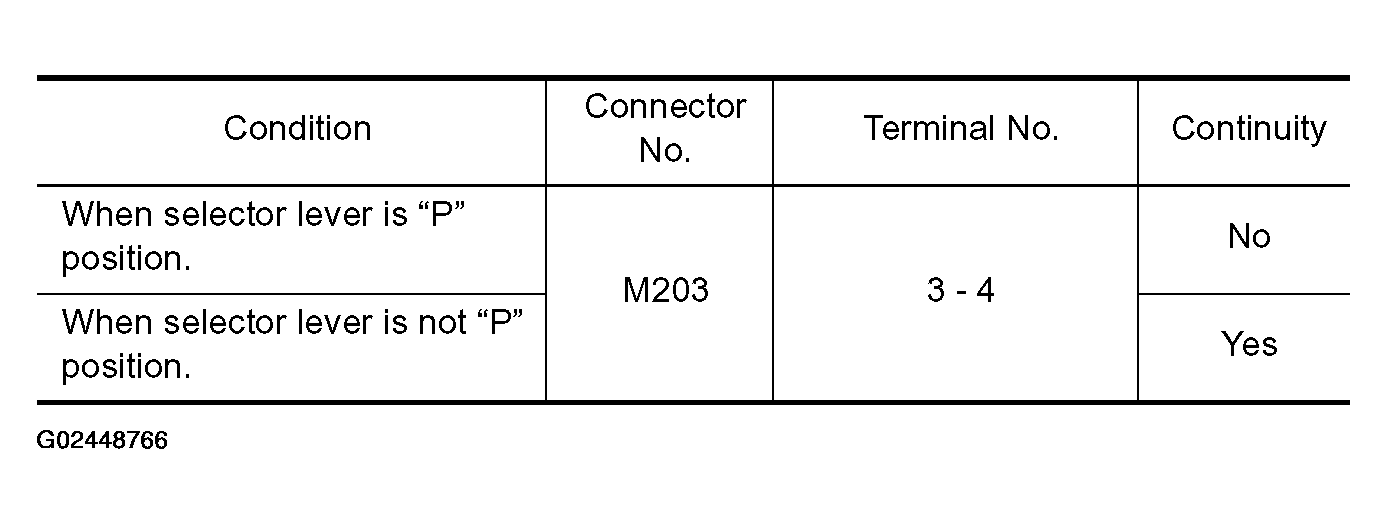

  Fig 1: Detention Switch Continuity Chart - For Shift

  Courtesy of NISSAN MOTOR CO., U.S.A.

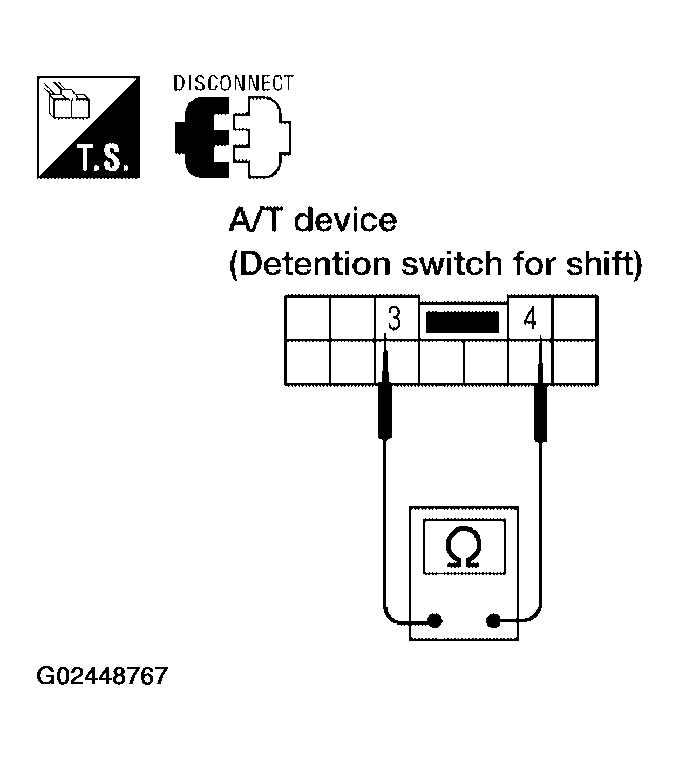

  Fig 2: Checking Detention Switch Continuity - For Shift

  Courtesy of NISSAN MOTOR CO., U.S.A.
