Normal Control

Each clutch is adjusted to the necessary pressure to match the engine drive force.

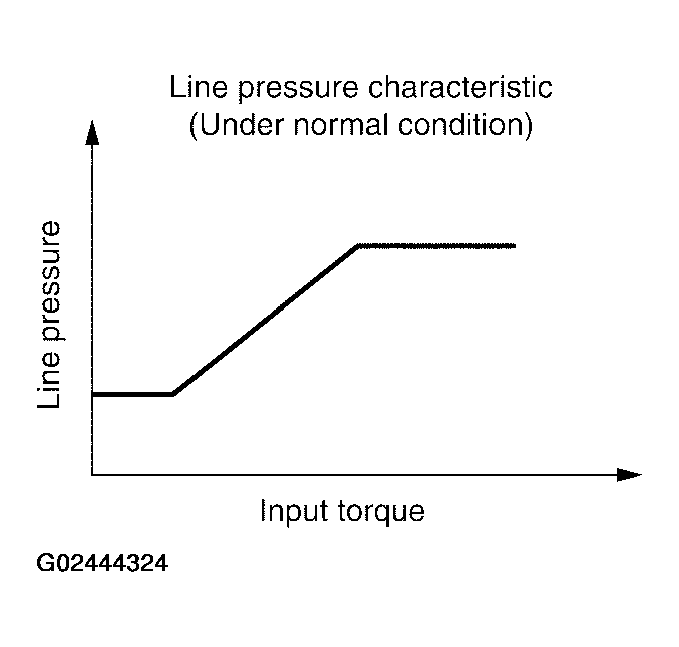

Fig 1: Line Pressure Graph (Normal Control)
G02444324Courtesy of NISSAN MOTOR CO., U.S.A.
