Cross-Sectional View (4WD models)
Cross-Sectional View (4WD models)

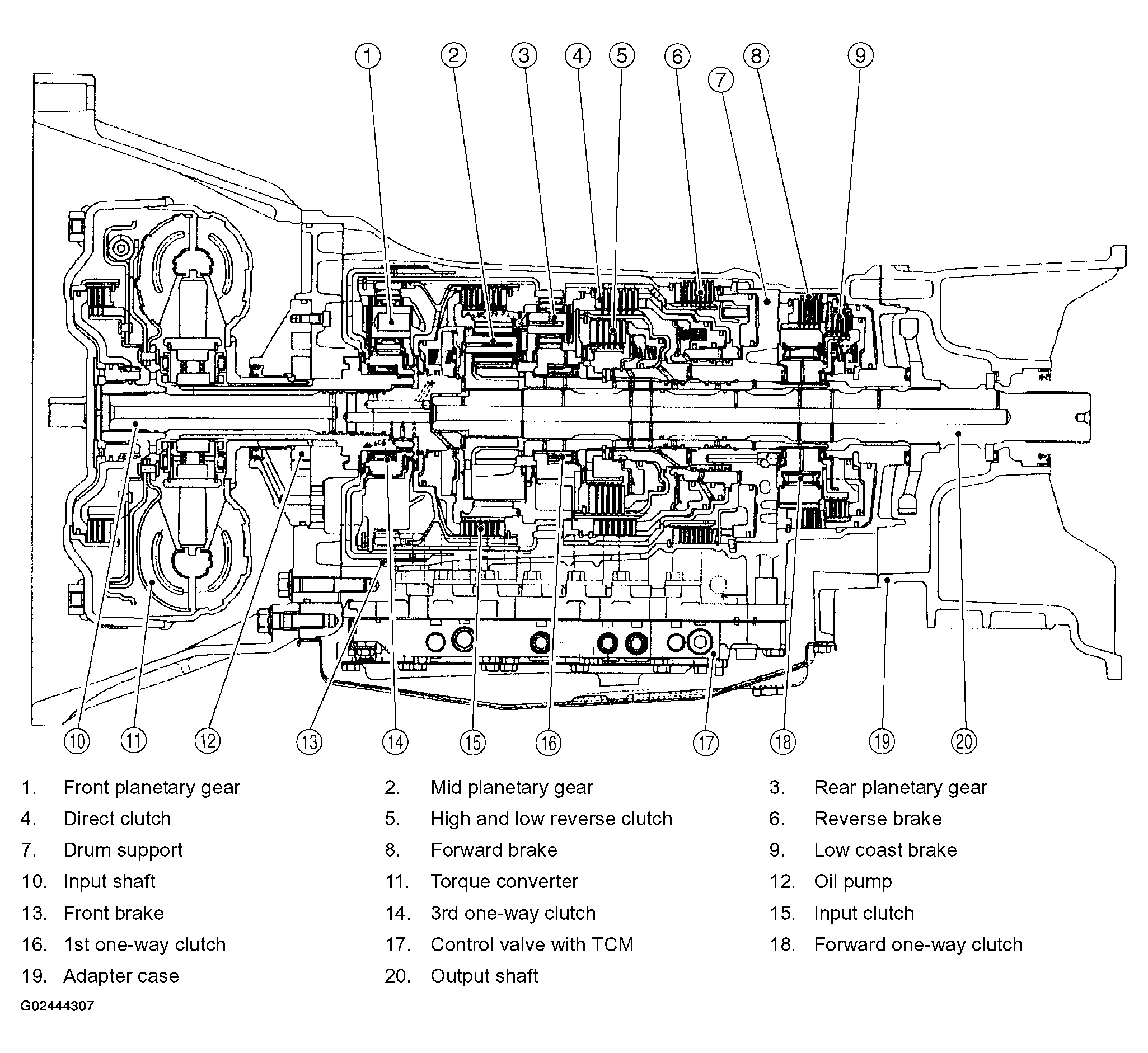

Fig 1: Cross-Sectional View Automatic Transmission (4WD Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
