Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Actuator & Electric Unit (Control Unit) | On left side of engine compartment. See Figure . |
| Air Bag Diagnosis Sensor Unit (Control Unit) | Below rear of center console. See Figure . |
| A/T Device (M203) | At base of shifter assembly. See Figure . |
| Automatic Drive Positioner Control Unit | Behind left side of dash. See Figure . |

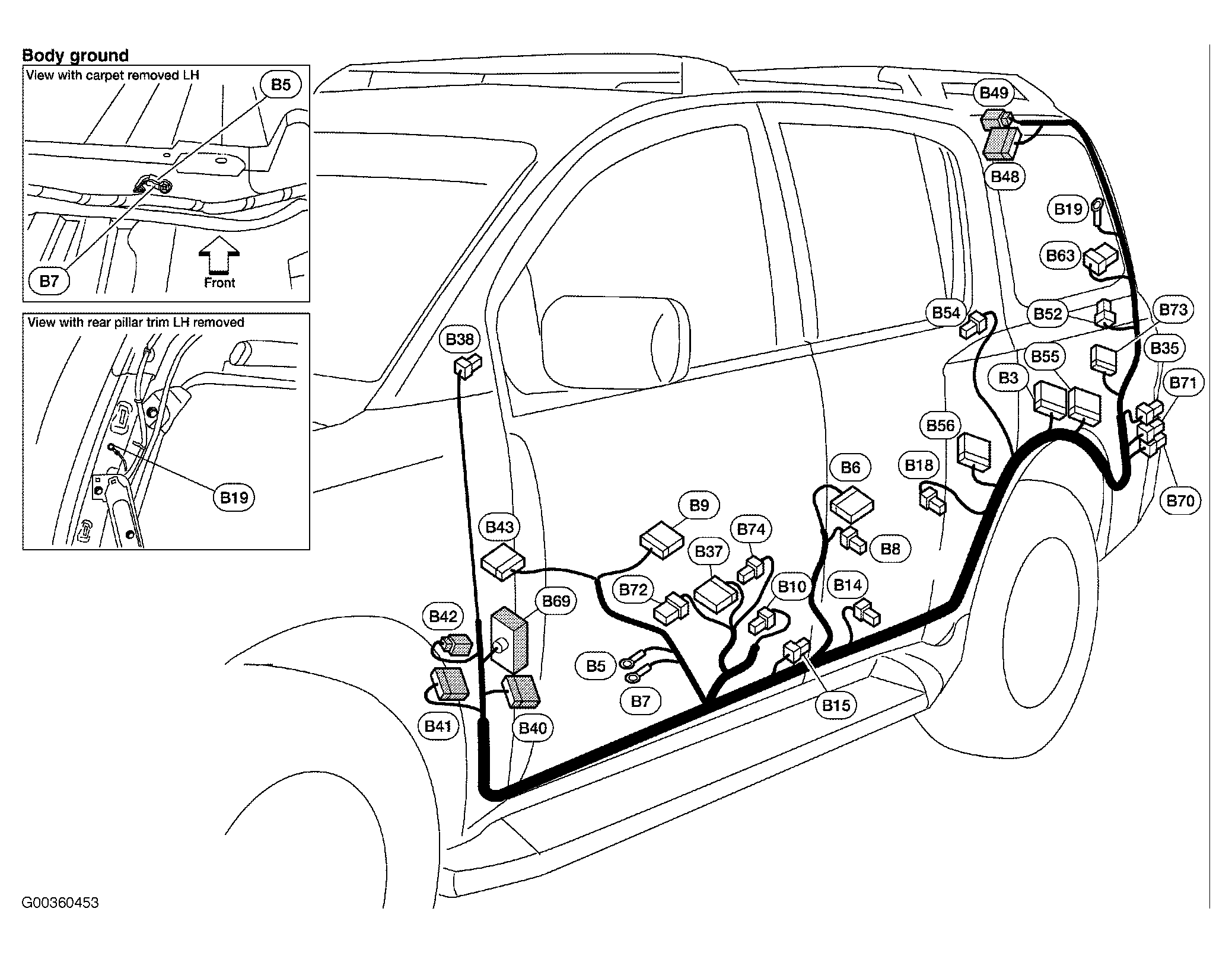

| Back Door Control Unit (B55) | Behind left rear quarterpanel. See Figure . |
| BCM | Behind center of dash. See Figure . |
| Display Control Unit (NAVI) (M94) | Behind upper center of dash. See Figure . |
| ECM | At right side of engine compartment. See Figure . |
| NAVI Control Unit (With Navigation System) | Under right front seat. See Figure . |
| Rear View Camera Control Unit (B73) | Left side of cargo area. See Figure . |
| Shift Lock Control Unit | Behind right side of dash. See Figure . |
| Sonar Control Unit (B56) | Behind left rear quarterpanel. See Figure . |
| Suspension Control Unit (B3) | Behind left rear quarterpanel. See Figure . |

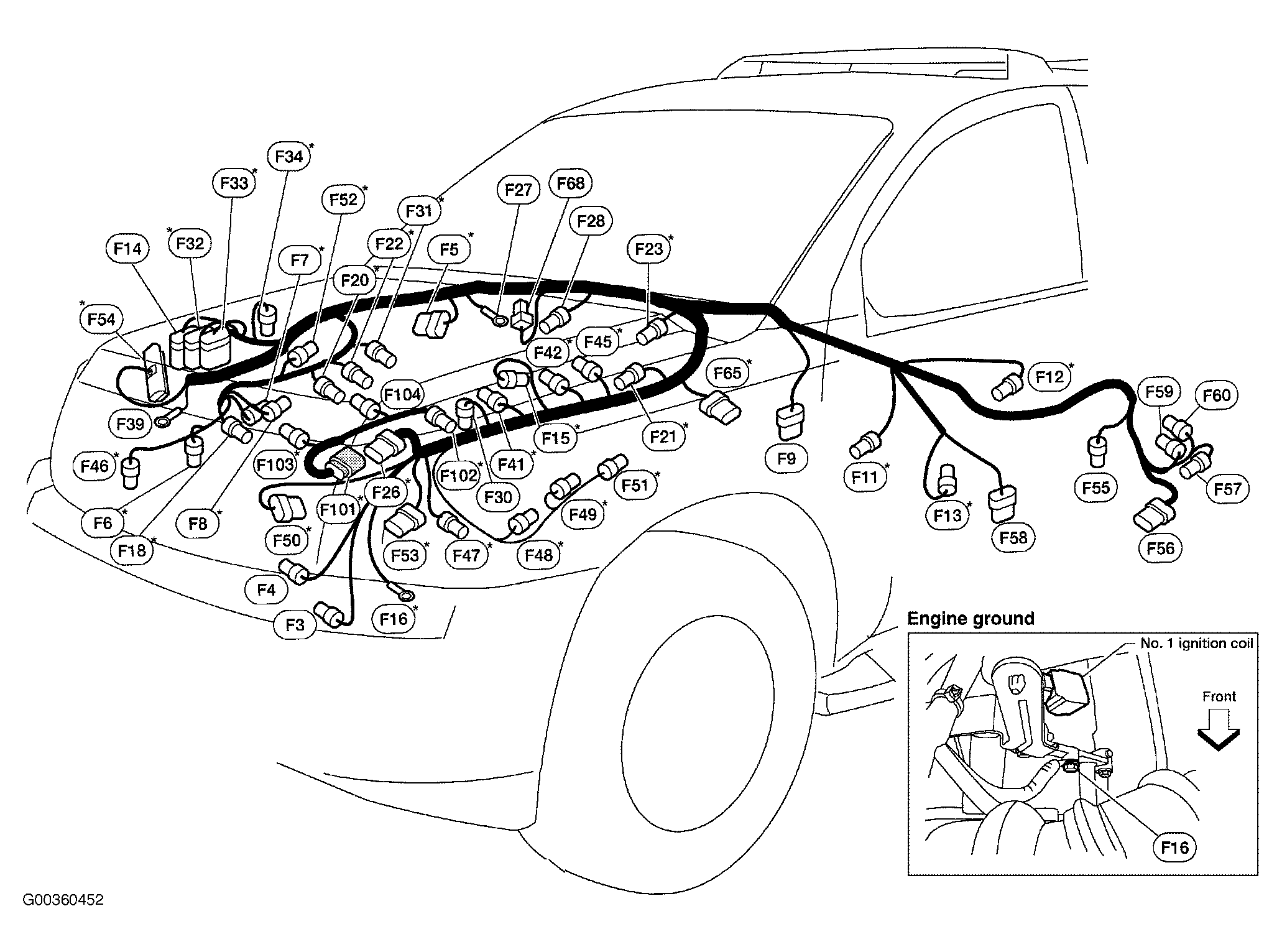

| Transfer Control Device (W/4-Wheel Drive) (F58) | At top front of transmission. See Figure . |
| Transfer Control Unit (W/4-Wheel Drive) | Behind lower right side of dash. See Figure . |
