DTC P0112, P0113: IAT Sensor
>>
Wiring Diagram
DTC P0112, P0113: IAT Sensor: Wiring Diagram
For references to PG-POWER, see
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS

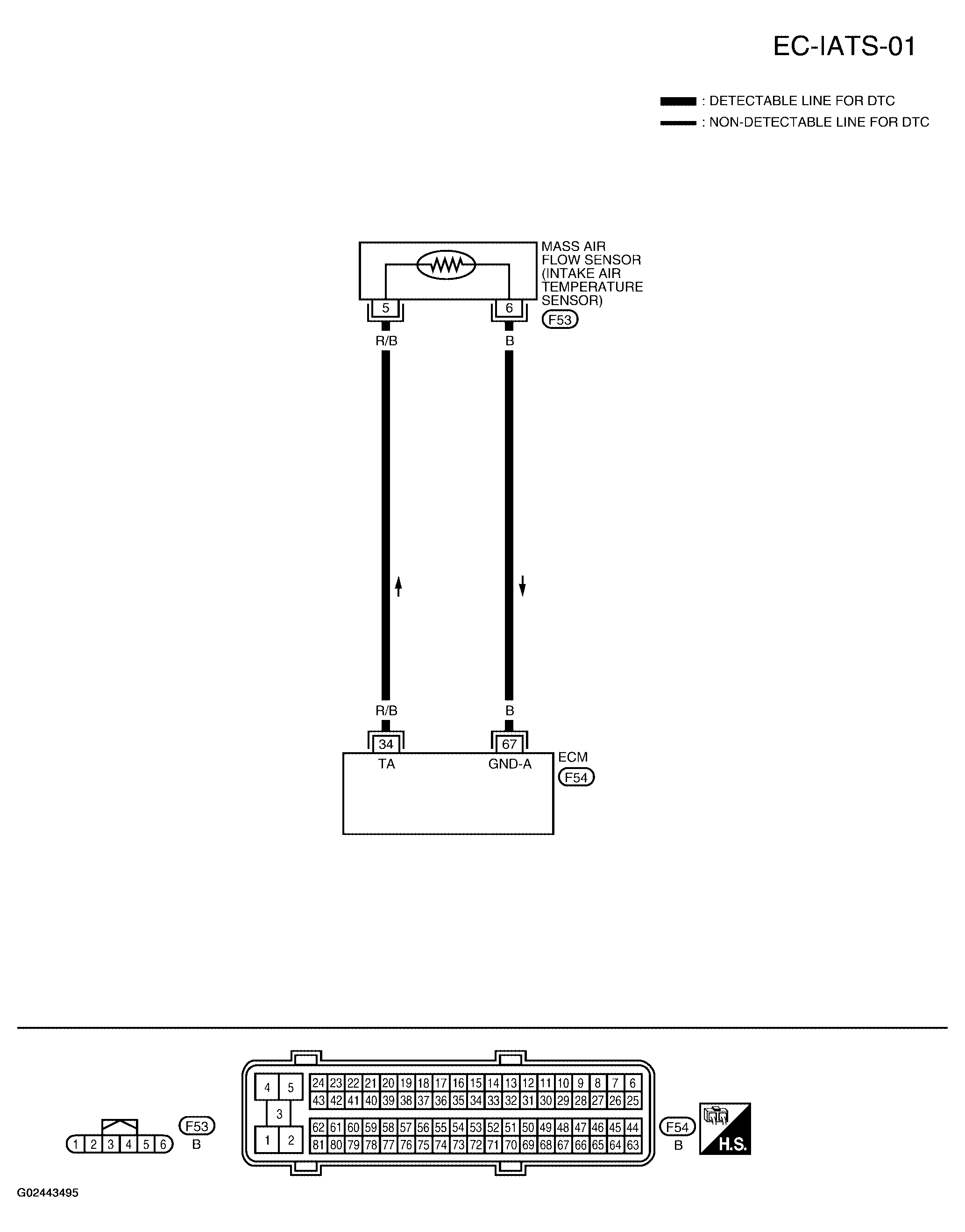

Fig 1: Wiring Diagram - (EC-IATS-01)
Courtesy of NISSAN MOTOR CO., U.S.A.
