Home >> Nissan-Datsun >> 2005 >> Armada SE, RWD >> Repair and Diagnosis >> Engine Mechanical >> Engine Lubrication System >> Oil Pump >> Removal And Installation >> Notes

Removal And Installation: Notes

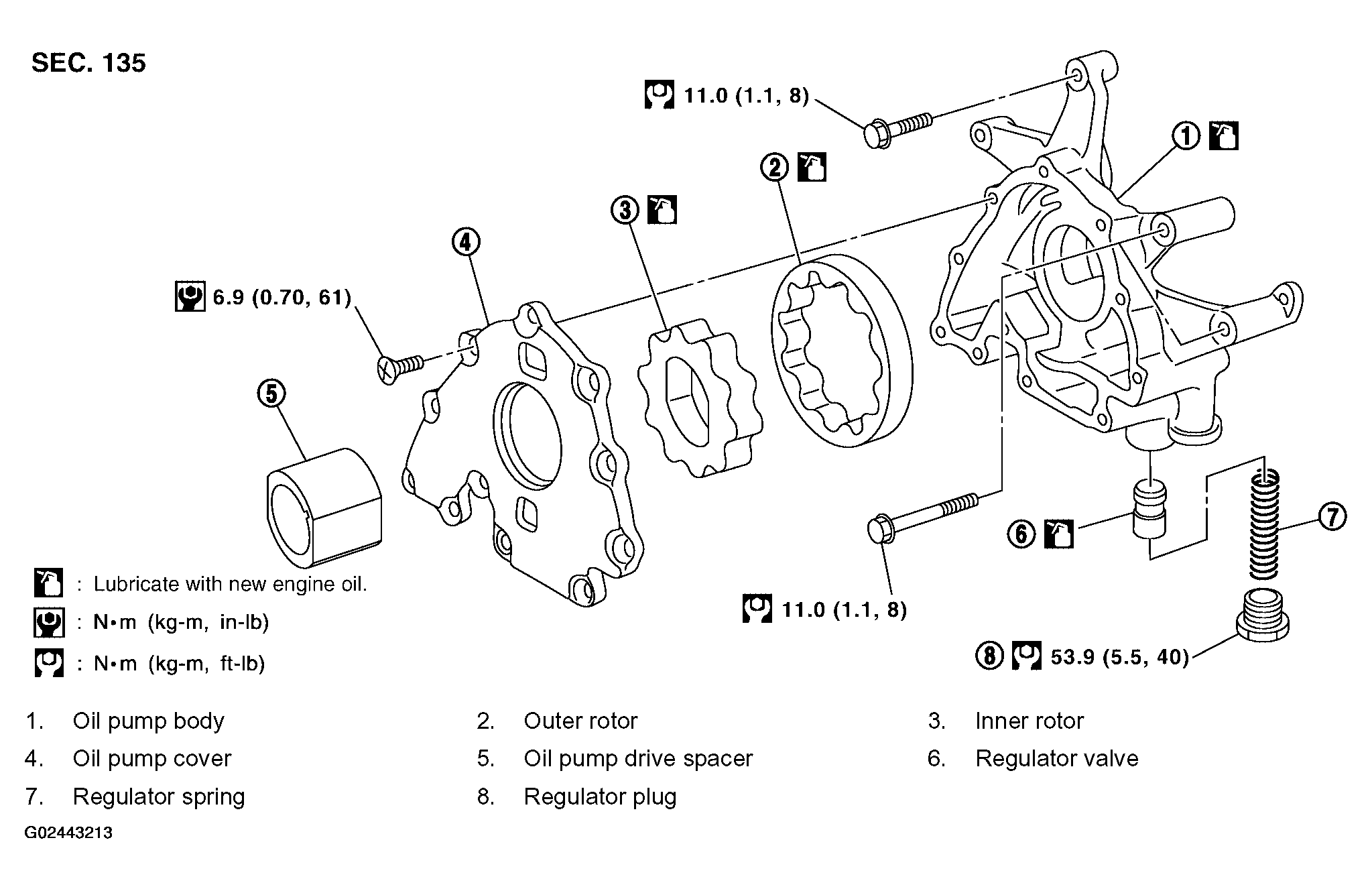

Fig 1: Exploded View Of Oil Pump With Torque Specifications

G02443213

Courtesy of NISSAN MOTOR CO., U.S.A.
