Disassembly And Assembly: Assembly

Installation is in the reverse order of removal.

NOTE: Install the inner rotor and outer rotor with the punched marks on the oil pump cover side.

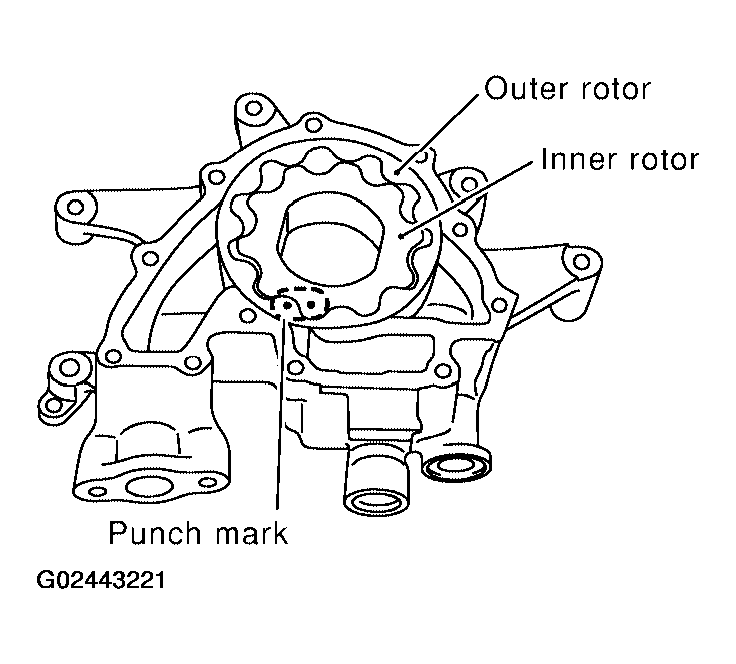

Fig 1: Installing Inner Rotor & Outer Rotor With Punched Marks On Oil Pump Cover Side

Courtesy of NISSAN MOTOR CO., U.S.A.
