LEMON Manuals
: Even more car manuals for everyone
Home
>>
Nissan-Datsun
>>
2005
>>
Armada SE, RWD
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Engine Lubrication System
>>
Lubrication System
>>
Lubrication Circuit
Lubrication Circuit

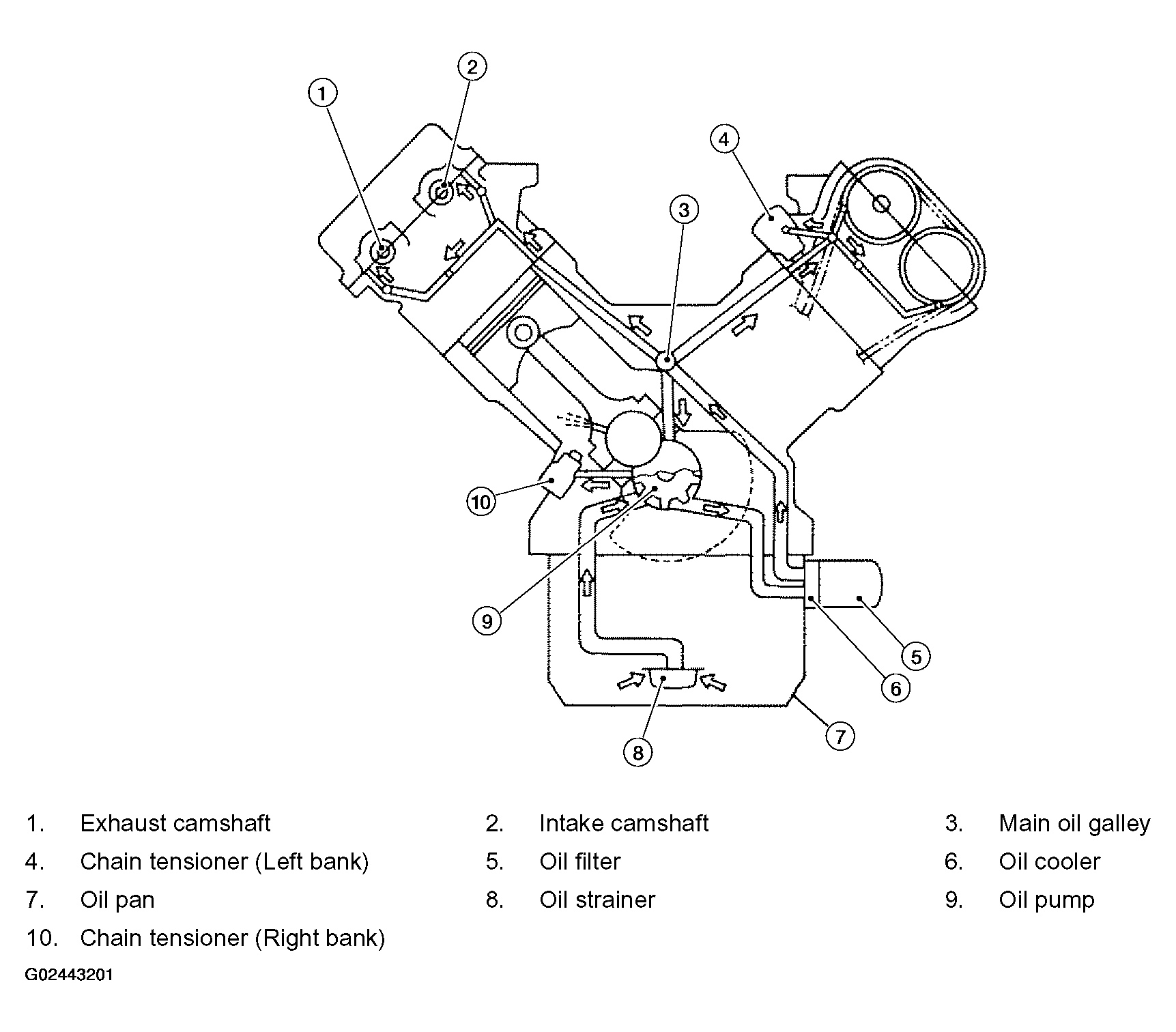

Fig 1: Identifying Lubrication Circuit Operation
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
