Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

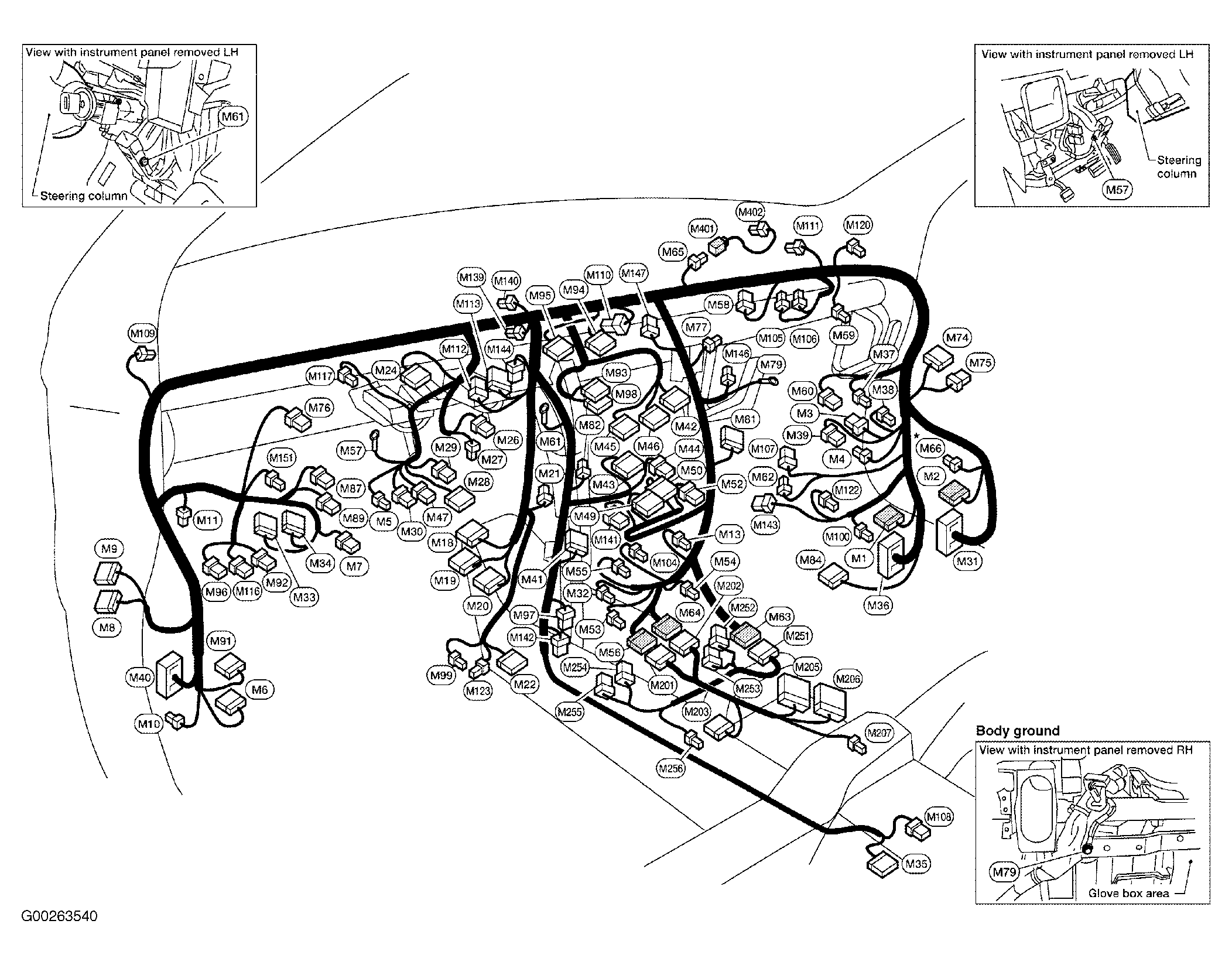

Fig 1: Dash & Center Console

Courtesy of NISSAN MOTOR CO., U.S.A.

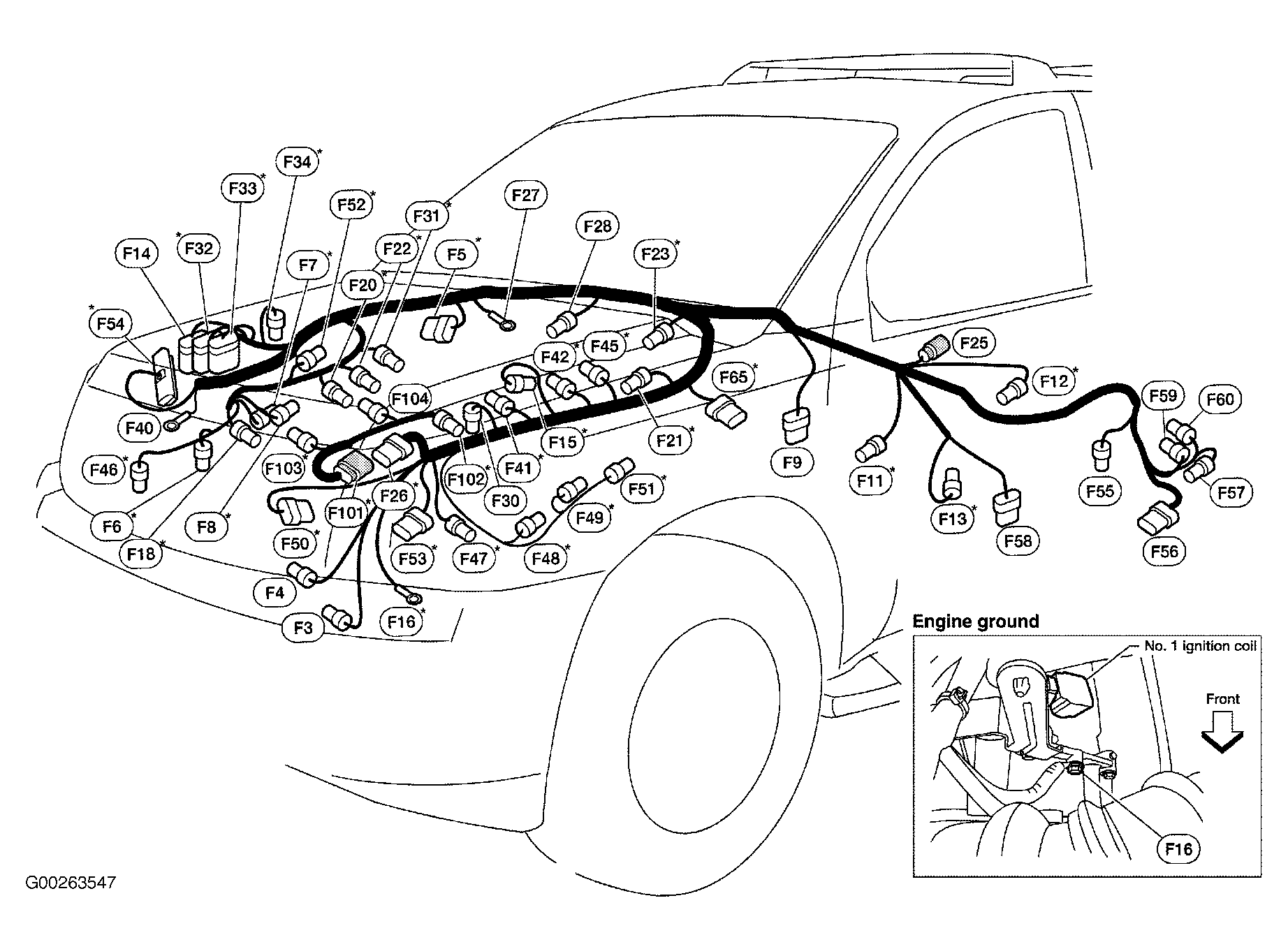

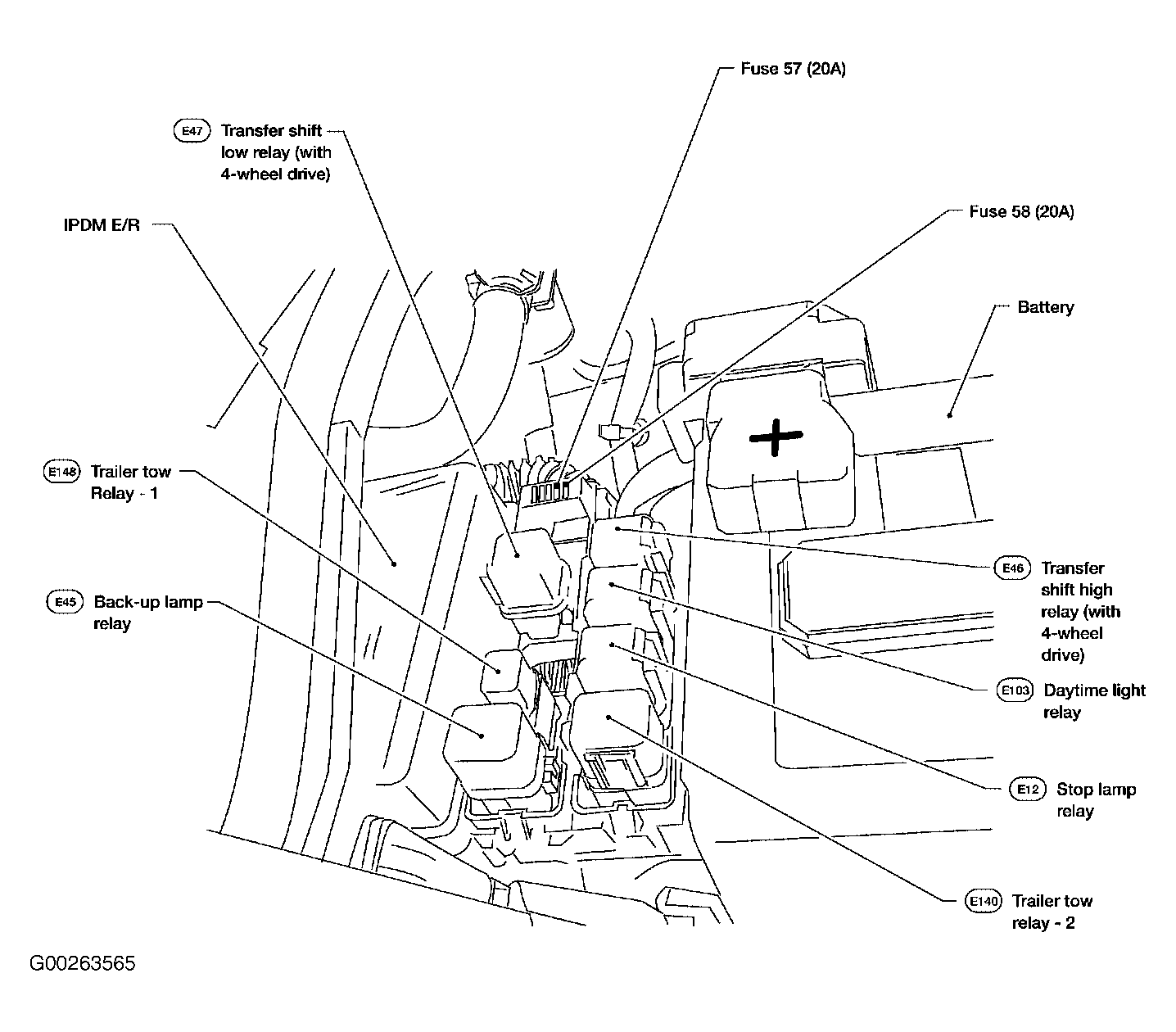

Fig 2: Left Side Of Engine Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

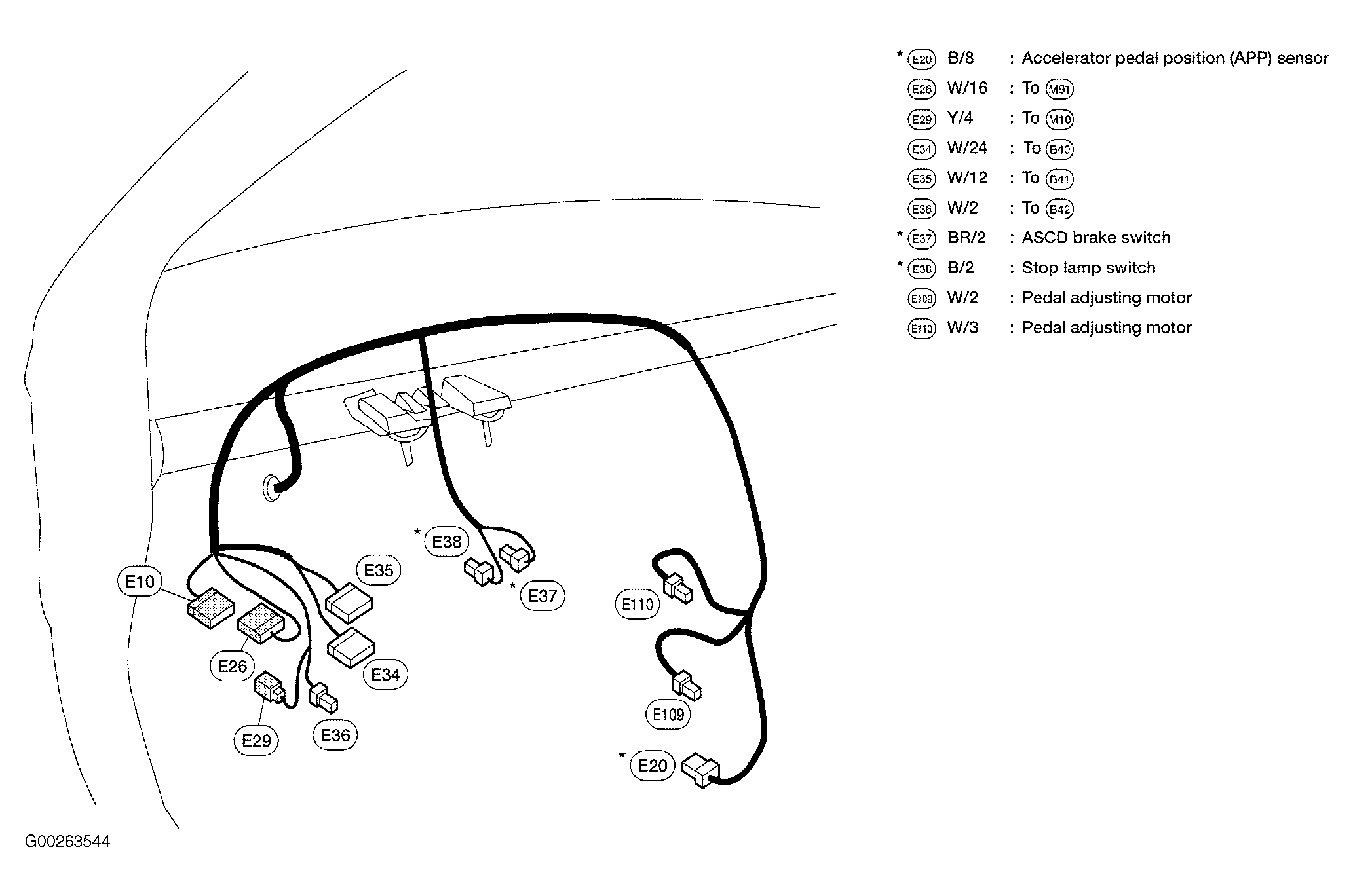

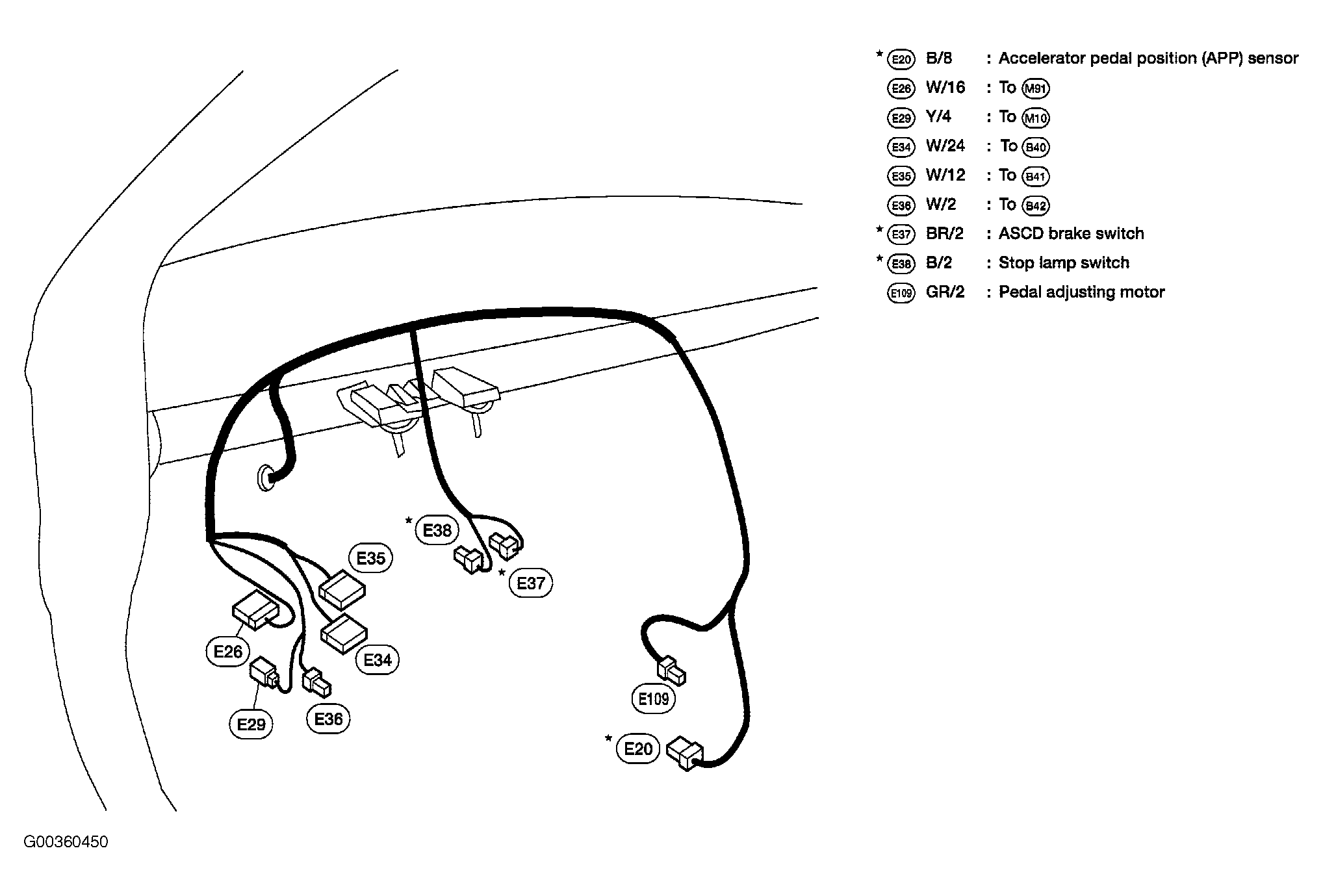

Fig 3: Left Side Of Dash

Courtesy of NISSAN MOTOR CO., U.S.A.

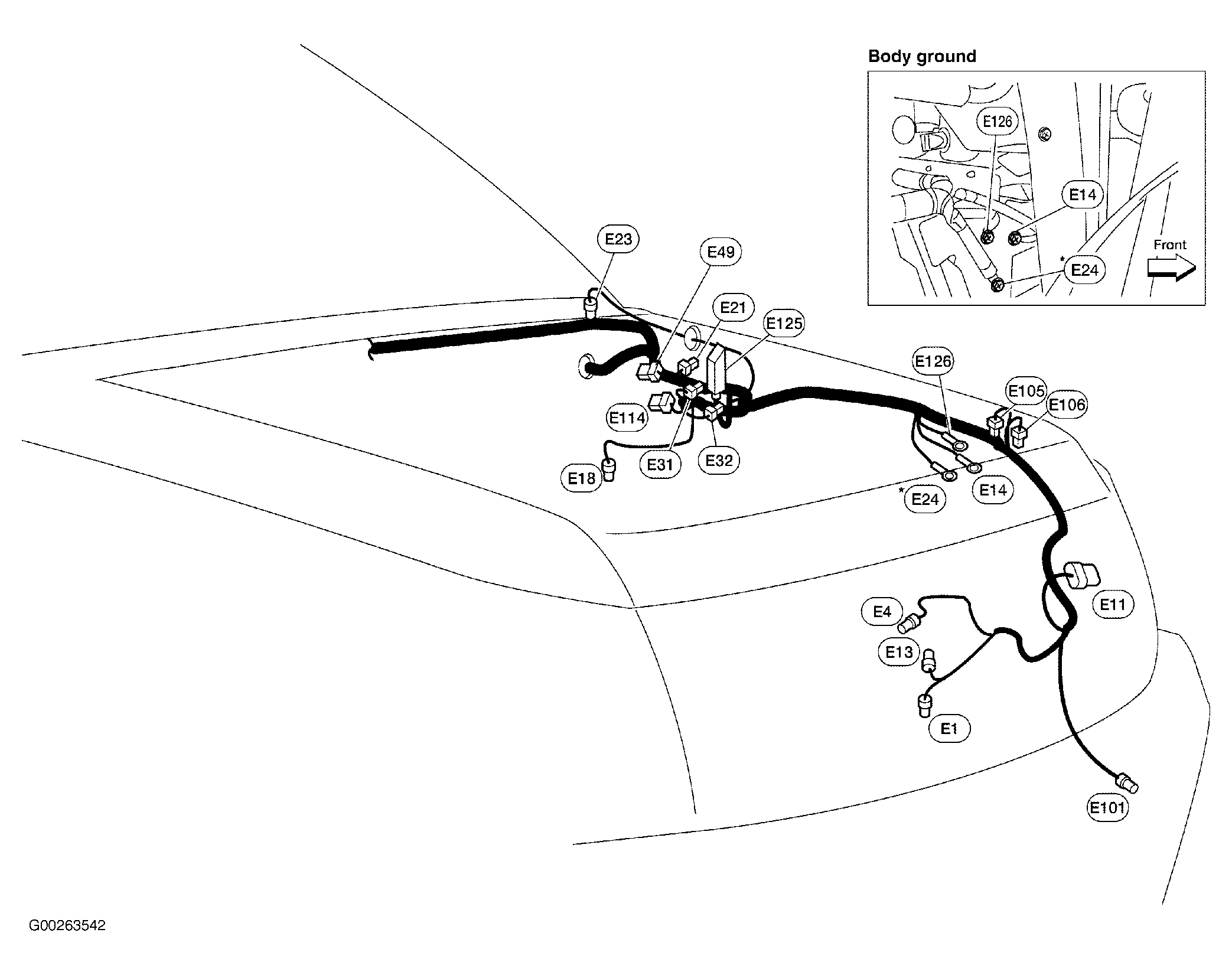

Fig 4: Right Side Of Engine Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Engine

Courtesy of NISSAN MOTOR CO., U.S.A.

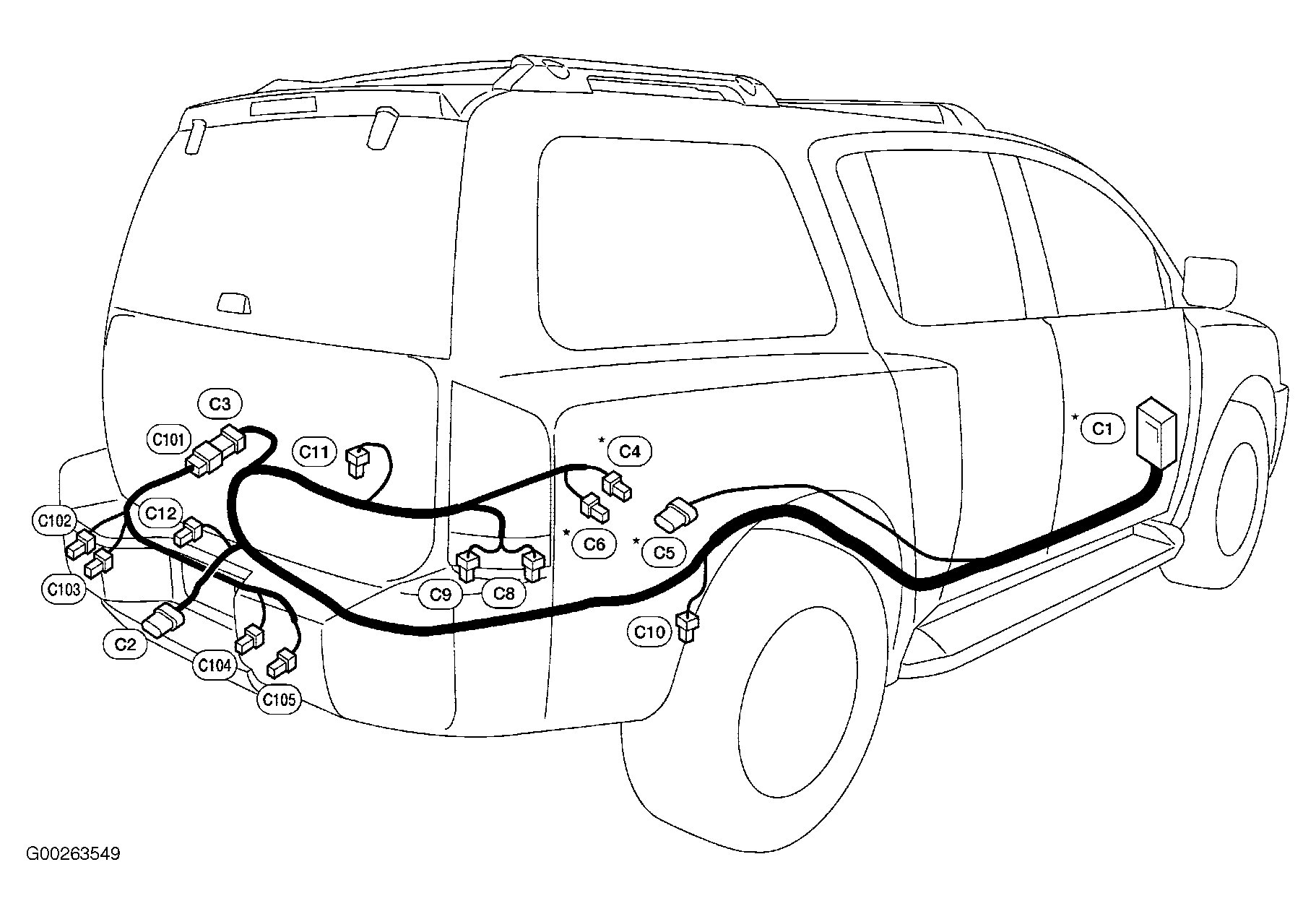

Fig 6: Rear Of Vehicle

Courtesy of NISSAN MOTOR CO., U.S.A.

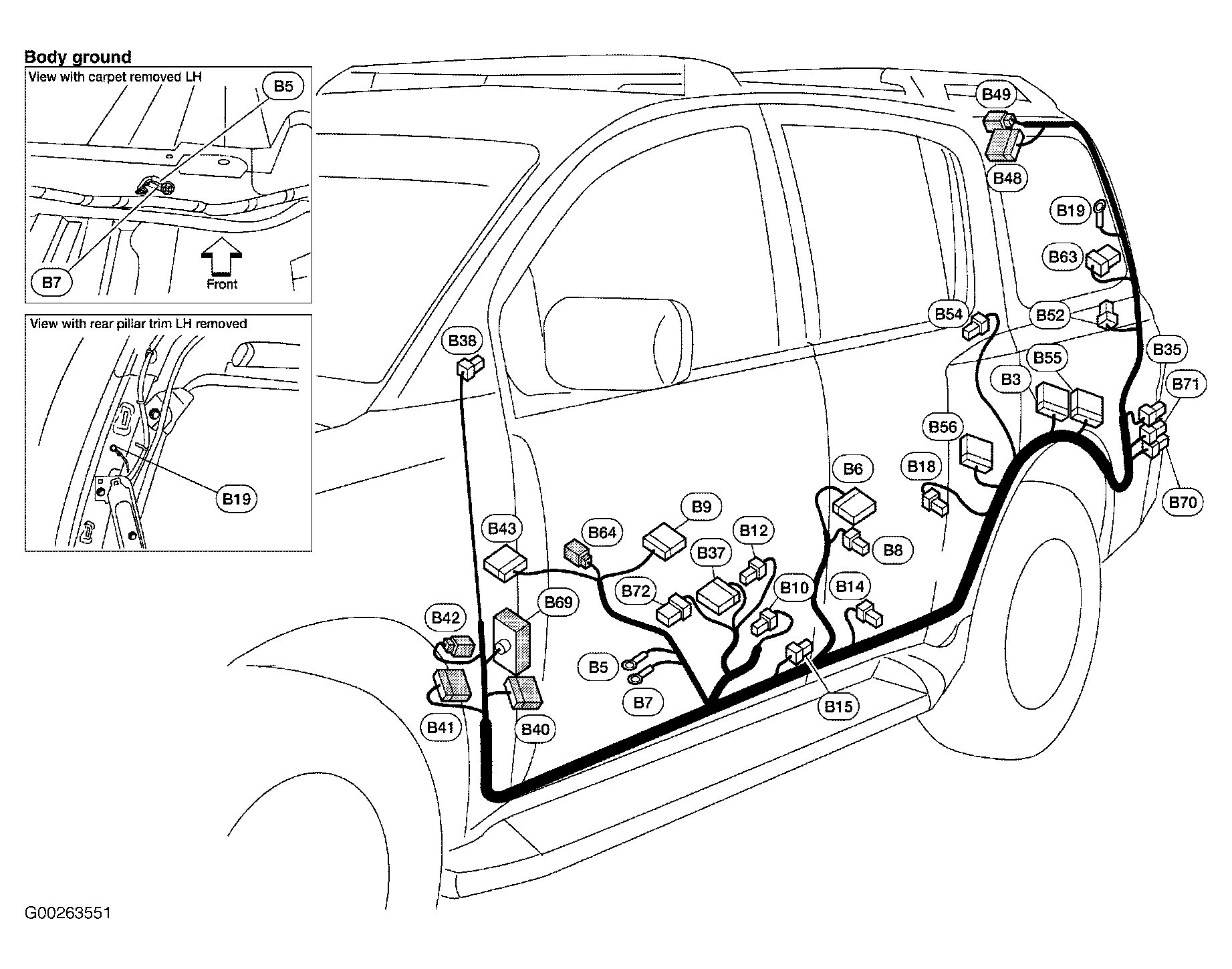

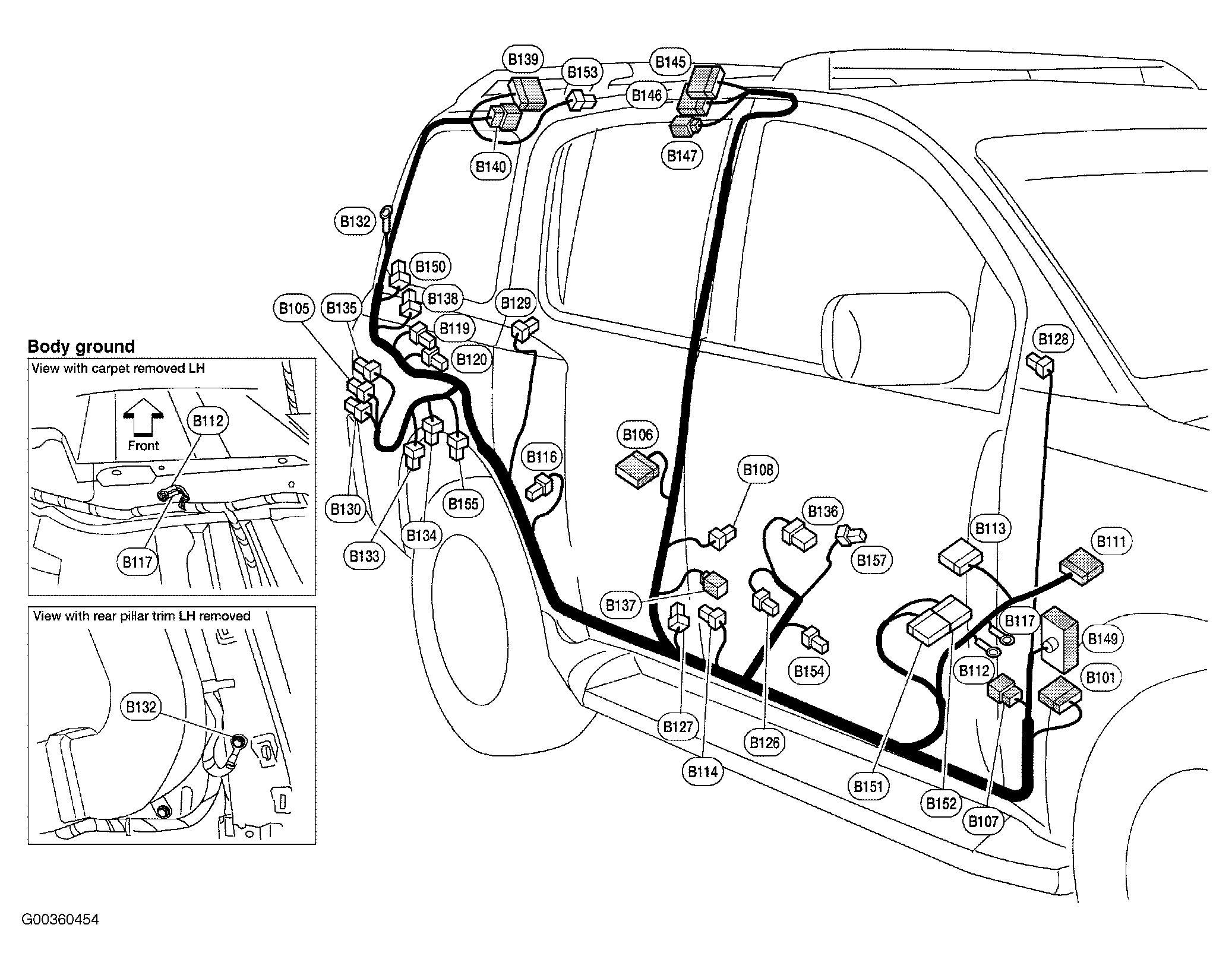

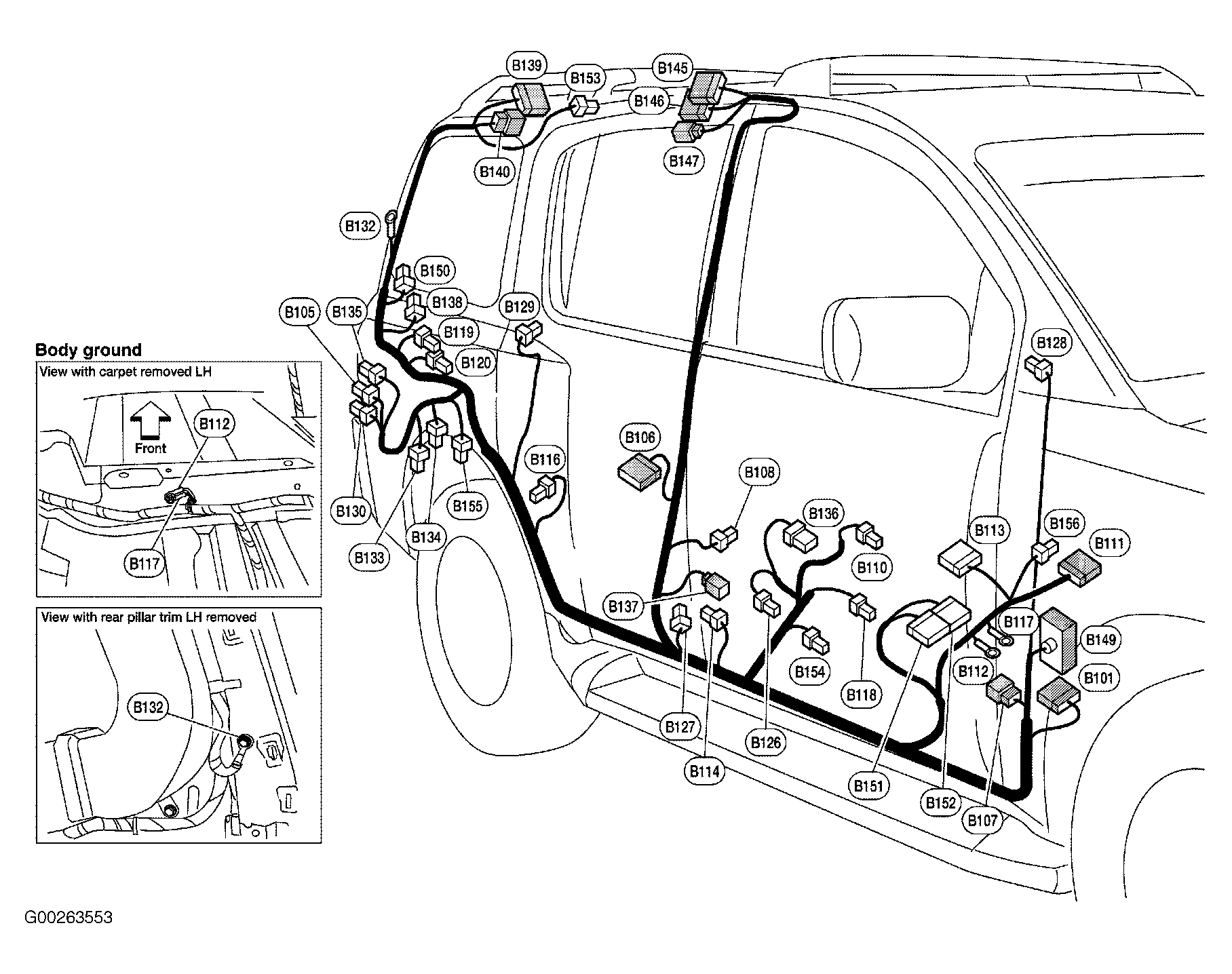

Fig 7: Left Side Of Vehicle

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: Right Side Of Vehicle

Courtesy of NISSAN MOTOR CO., U.S.A.

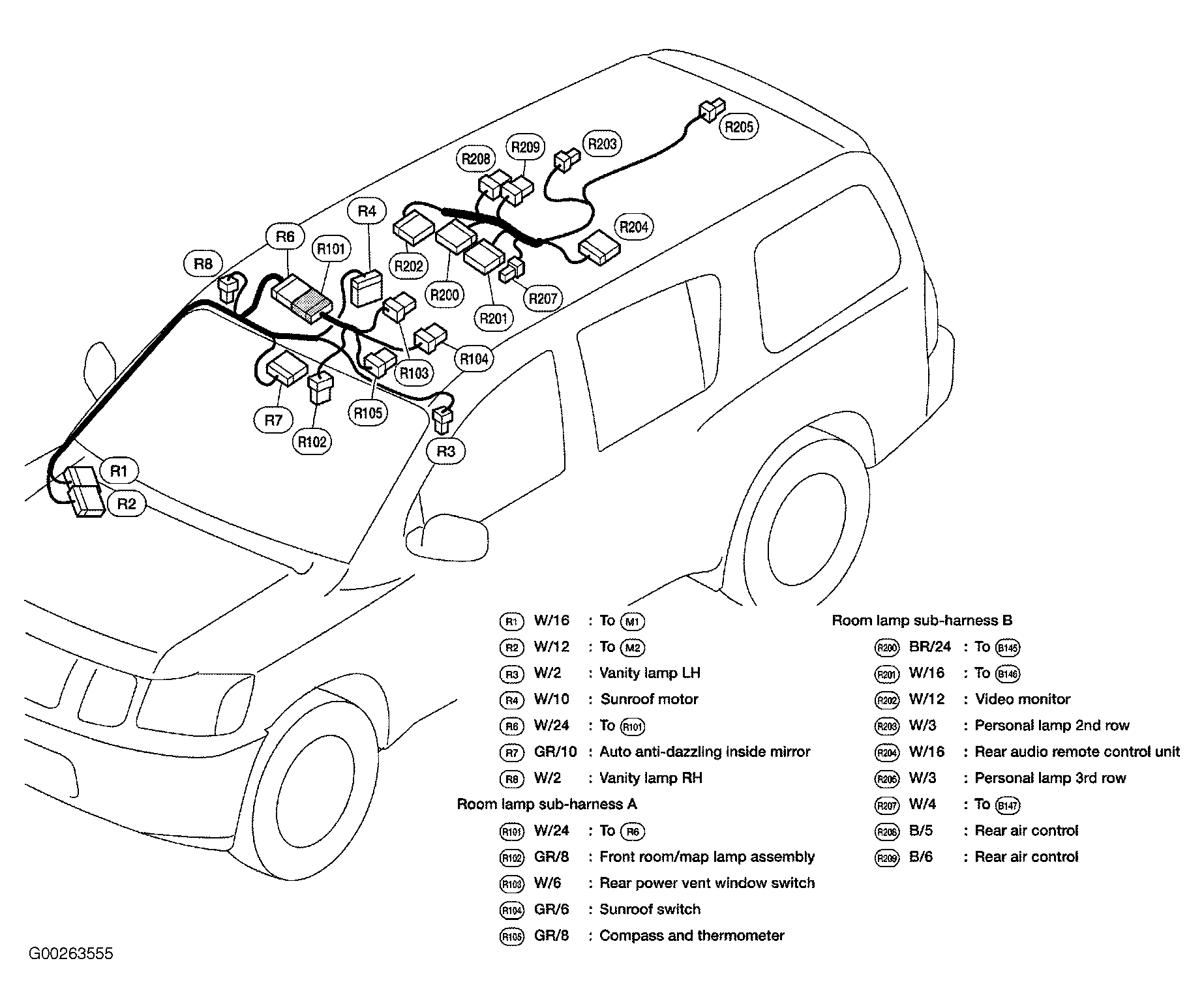

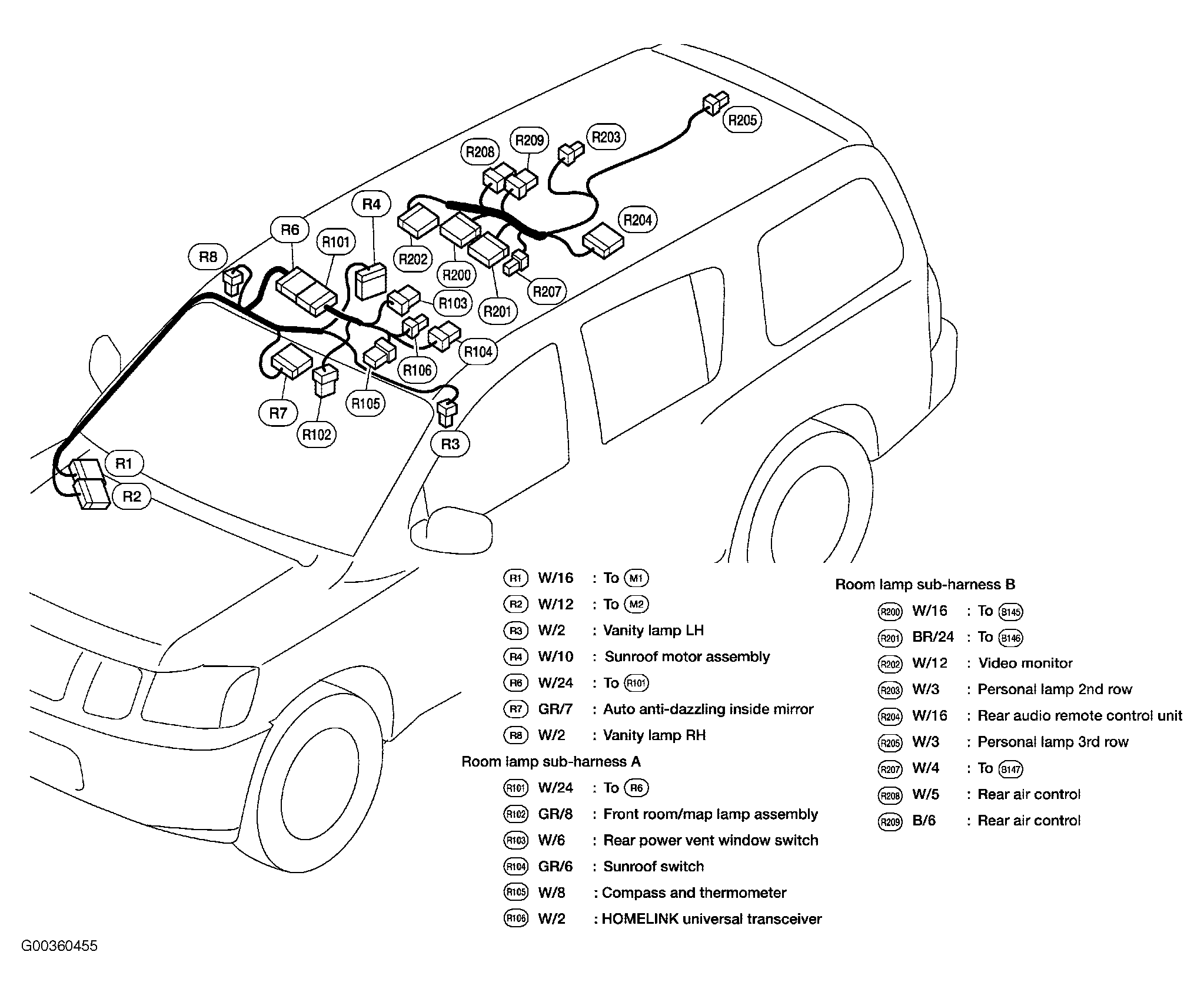

Fig 9: Roof

Courtesy of NISSAN MOTOR CO., U.S.A.

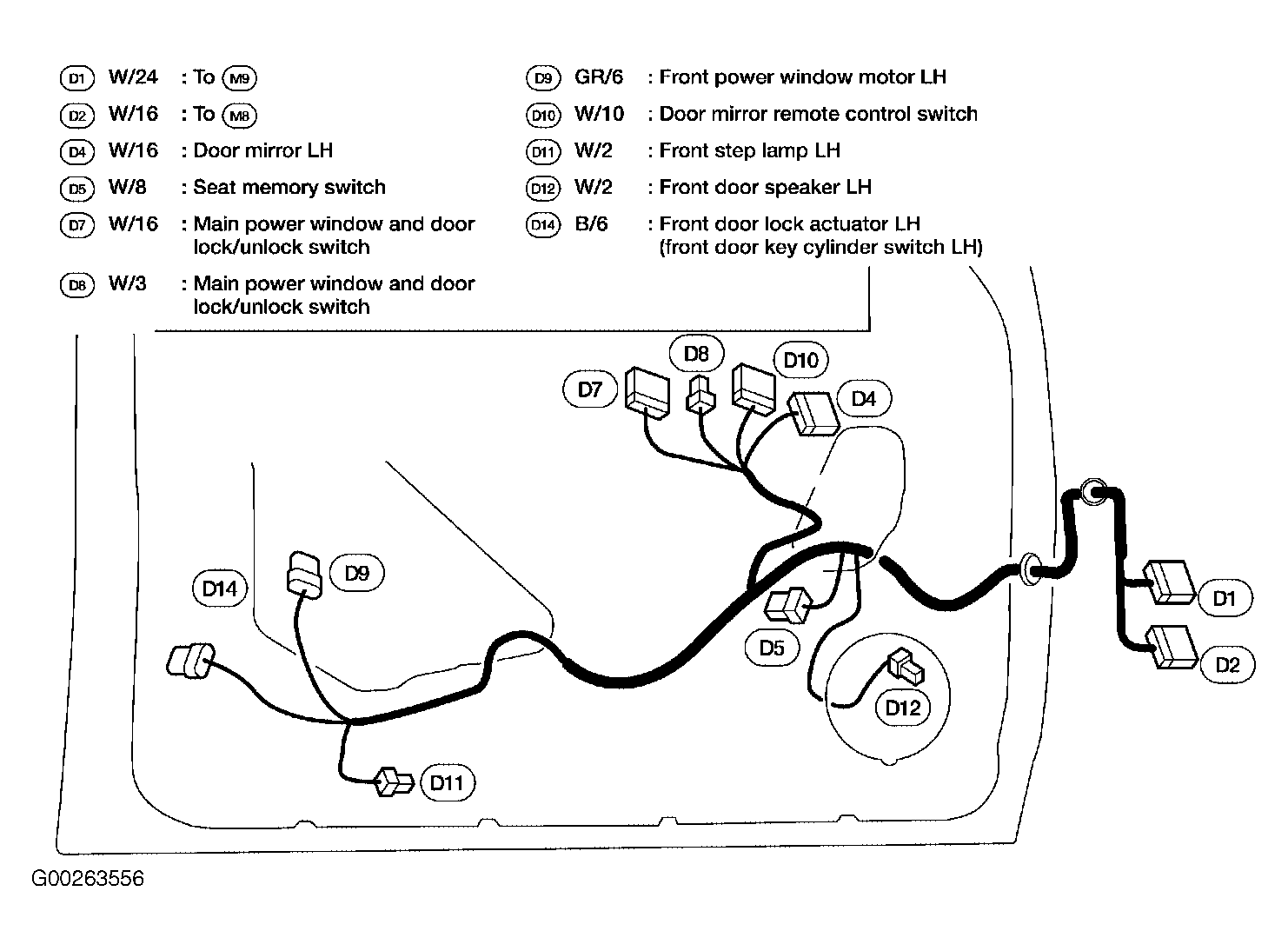

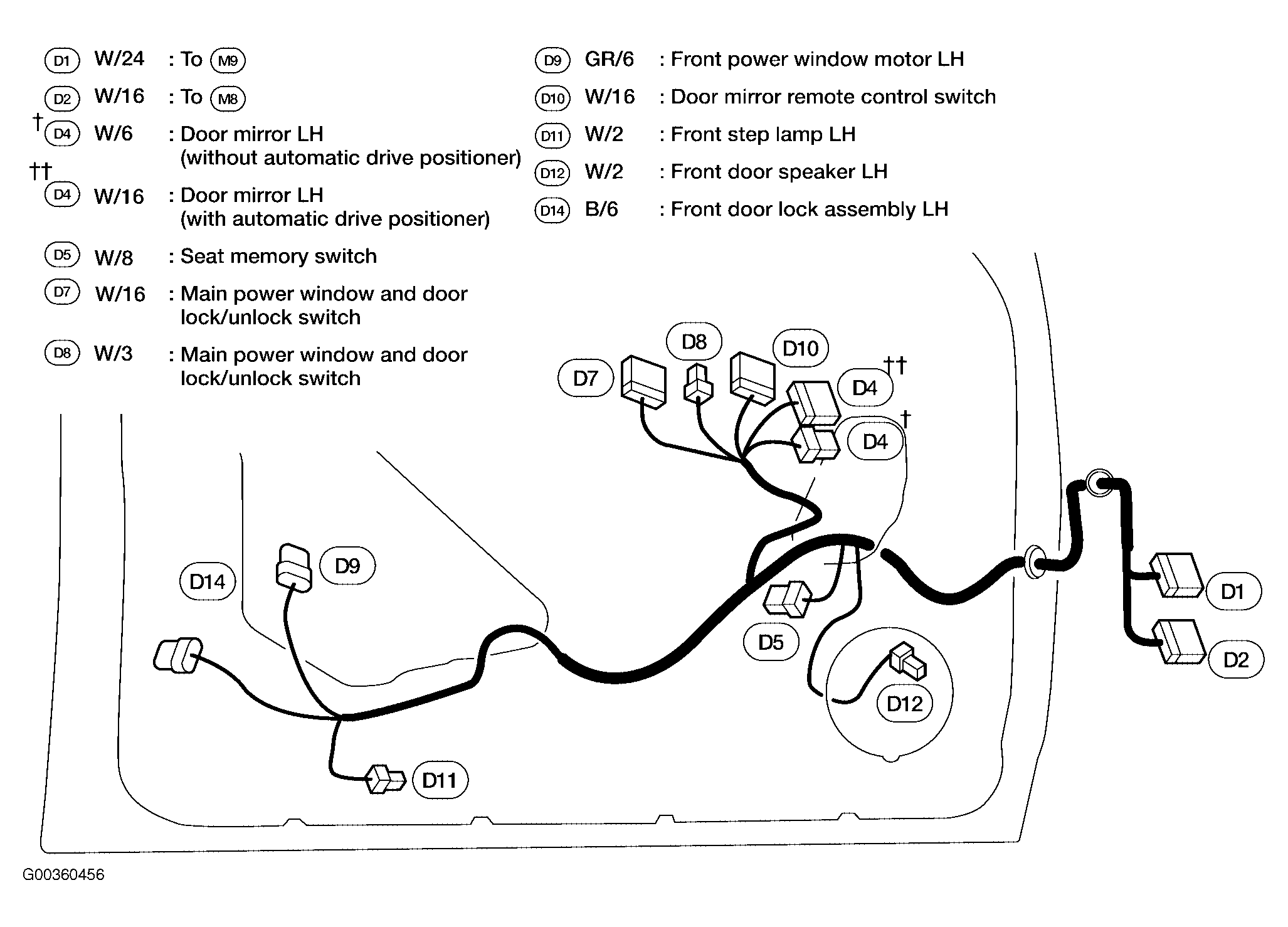

Fig 10: Left Front Door

Courtesy of NISSAN MOTOR CO., U.S.A.

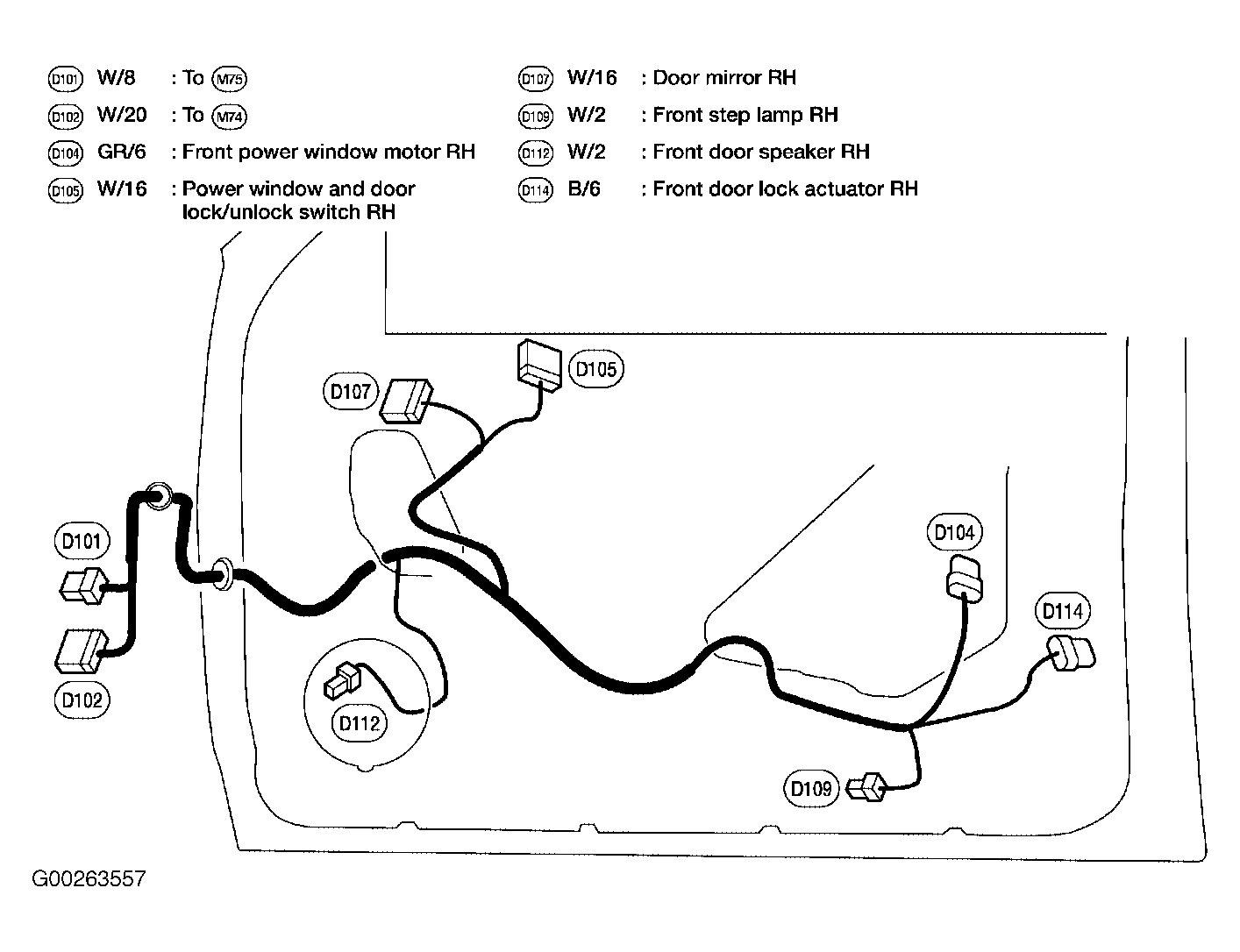

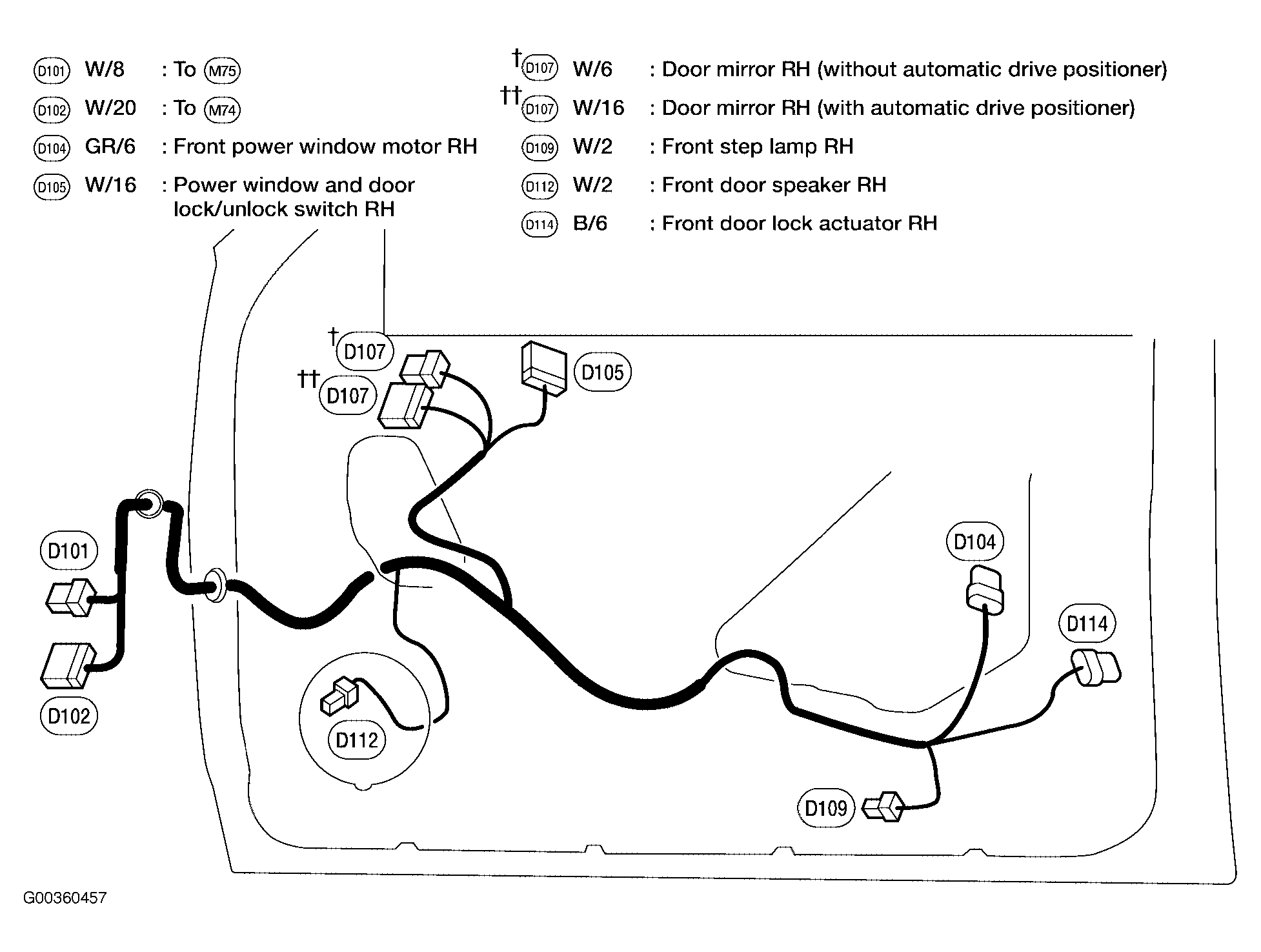

Fig 11: Right Front Door

Courtesy of NISSAN MOTOR CO., U.S.A.

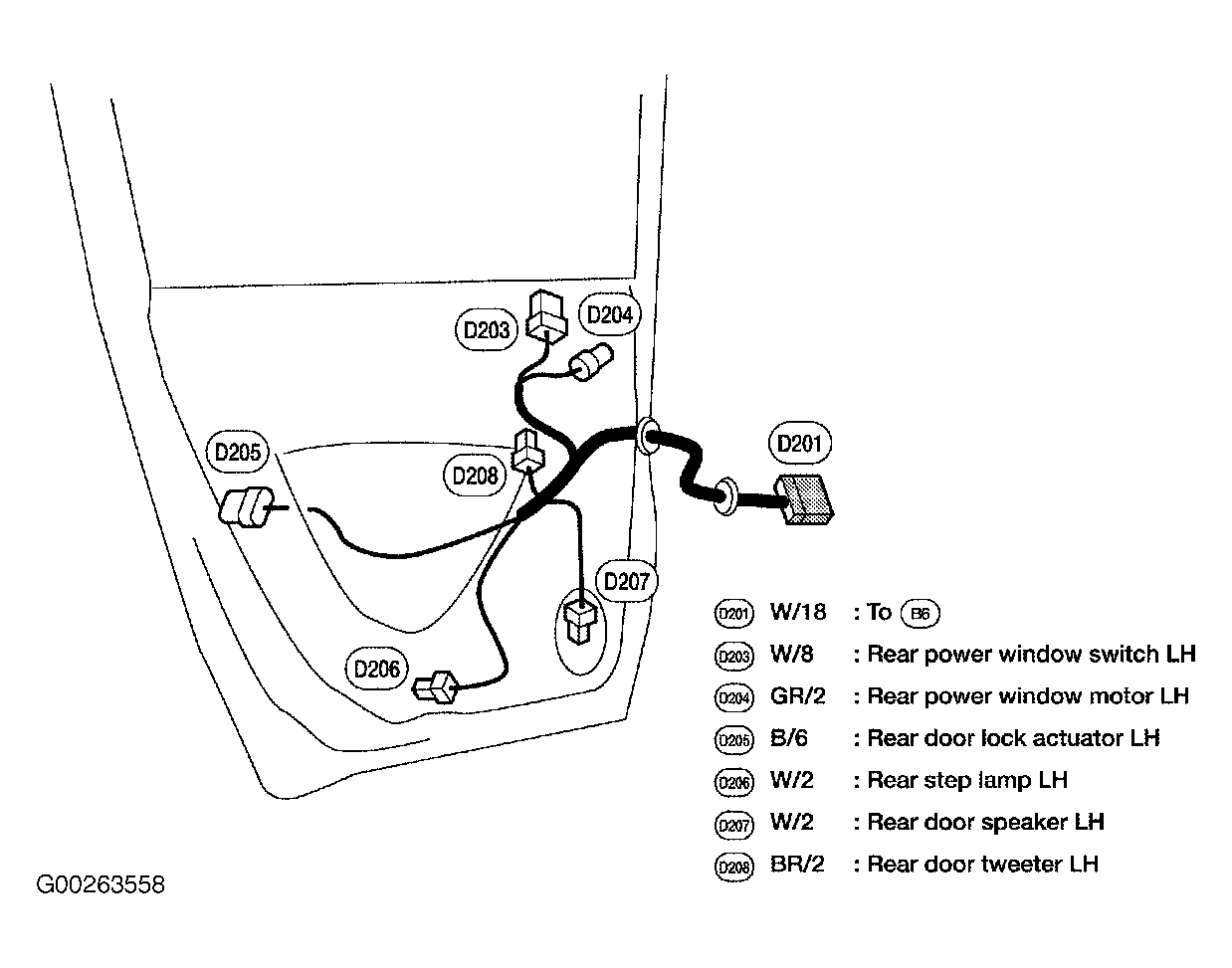

Fig 12: Left Rear Door

Courtesy of NISSAN MOTOR CO., U.S.A.

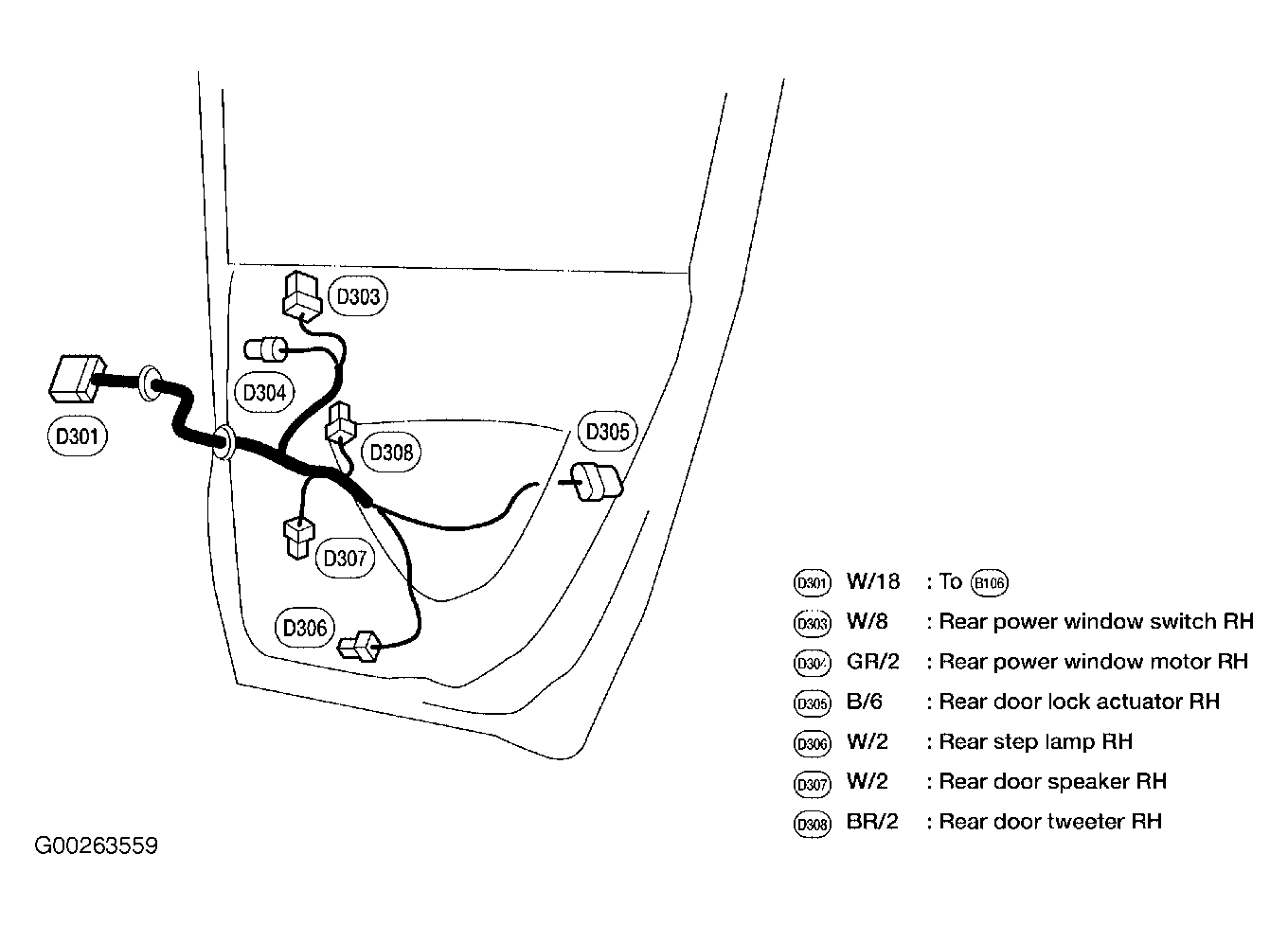

Fig 13: Right Rear Door

Courtesy of NISSAN MOTOR CO., U.S.A.

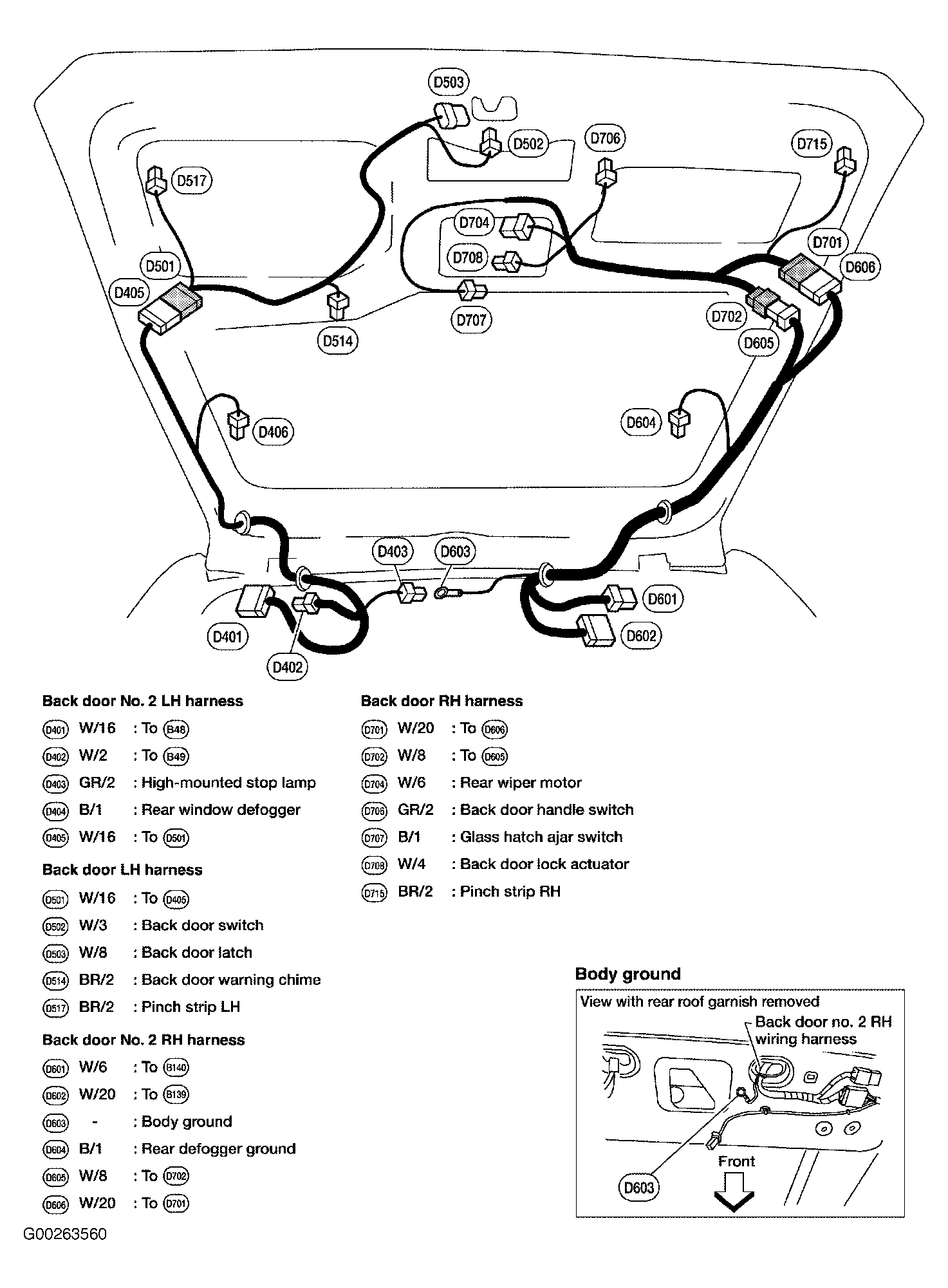

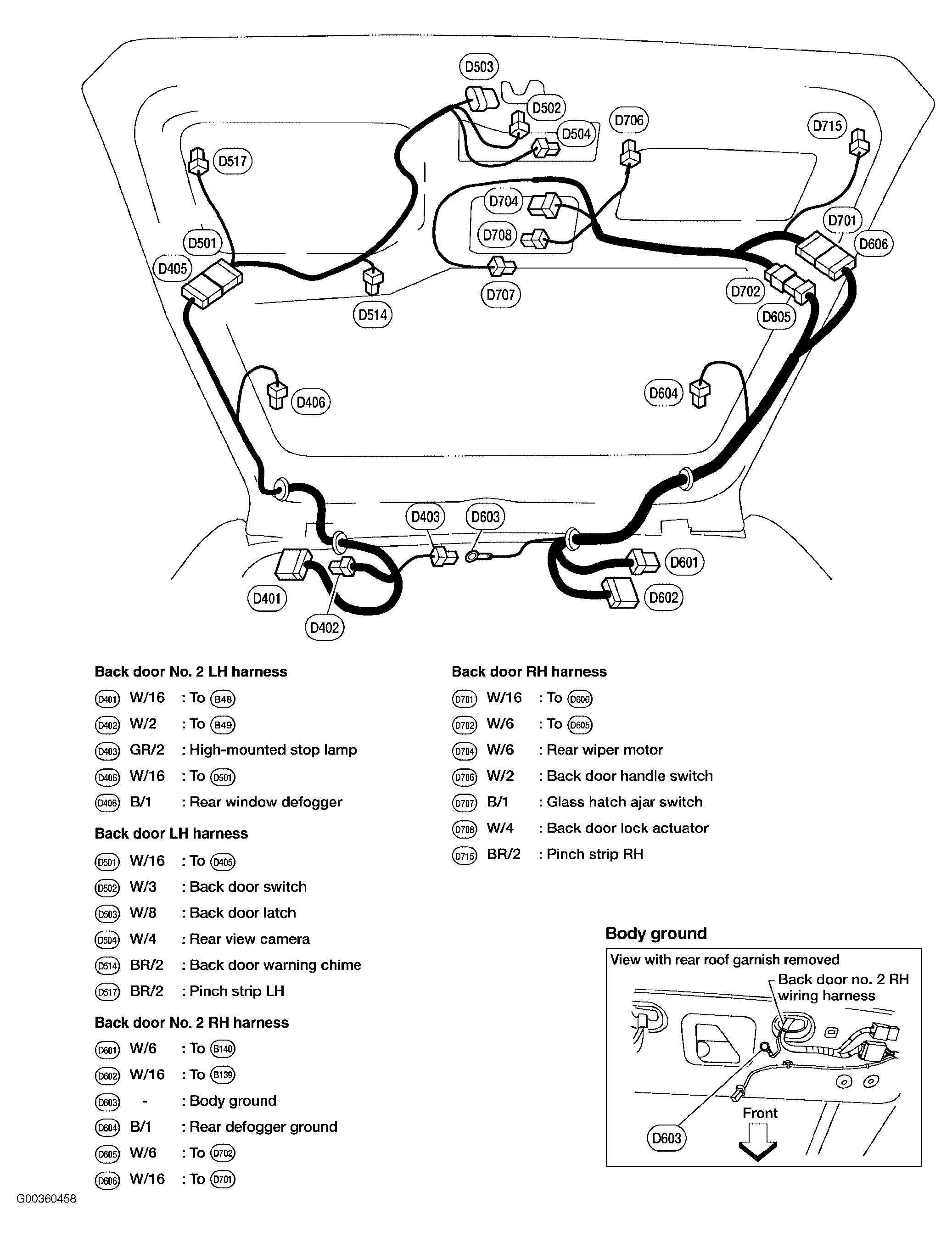

Fig 14: Back Door

Courtesy of NISSAN MOTOR CO., U.S.A.

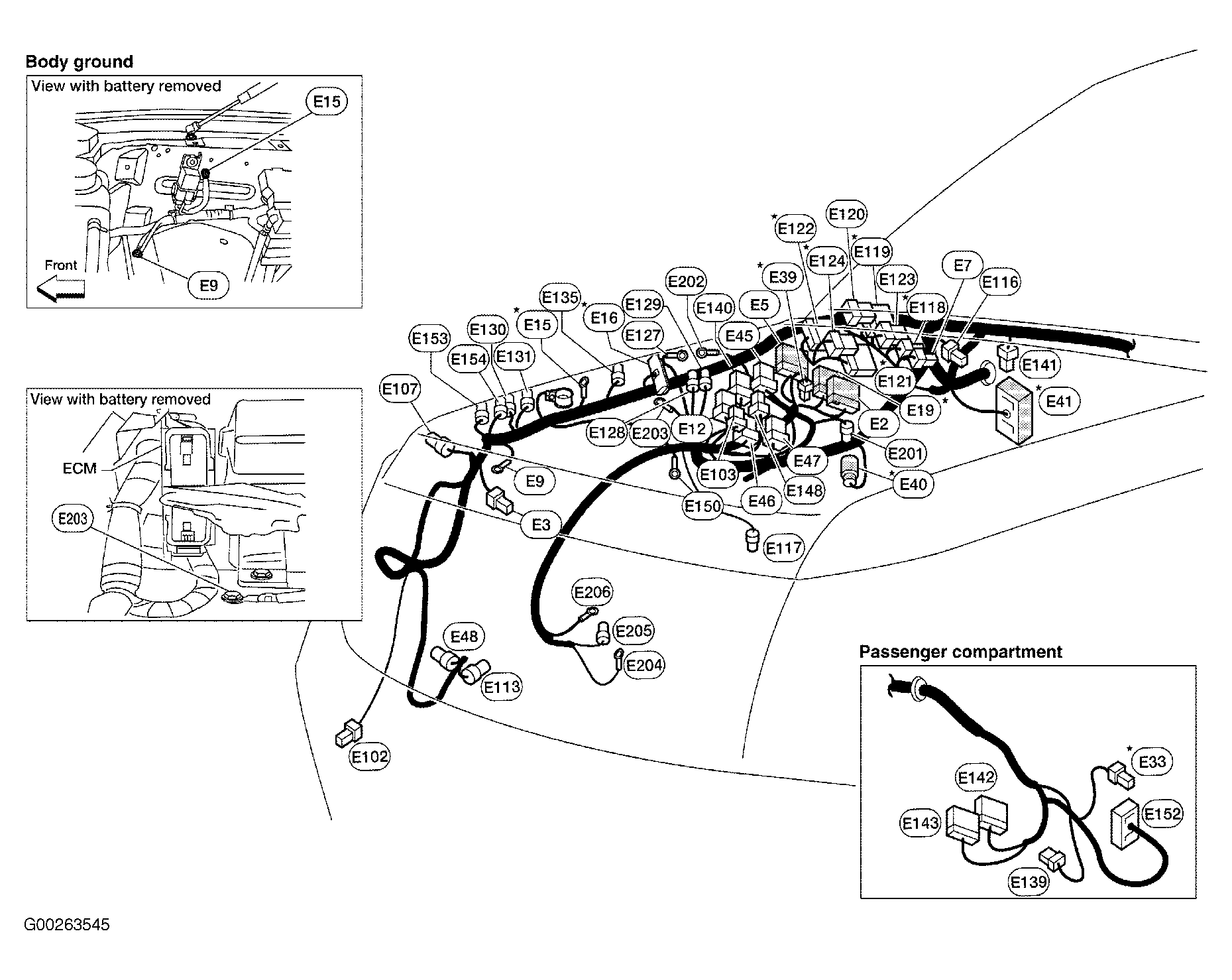

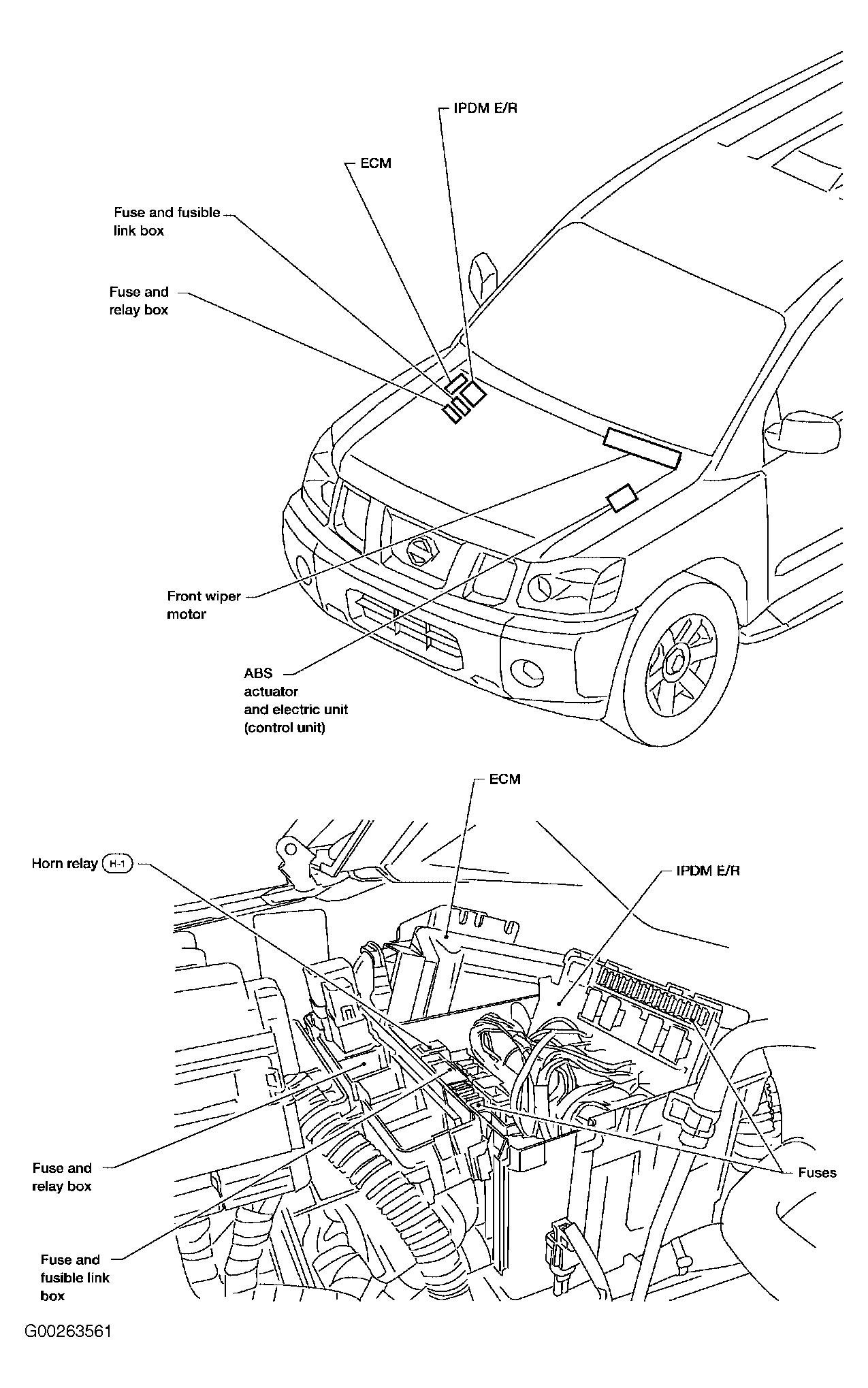

Fig 15: Engine Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

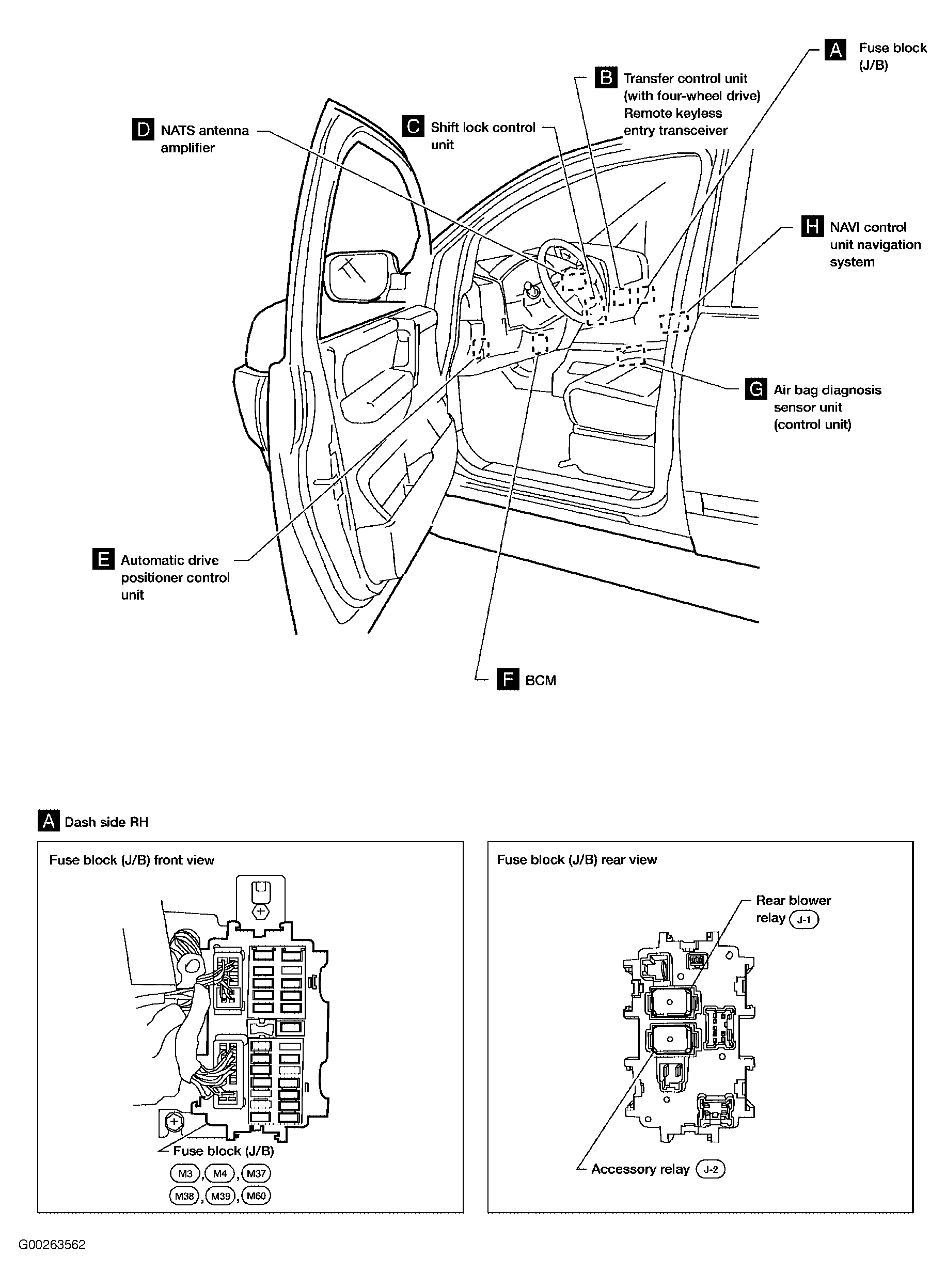

Fig 16: Dash Views (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

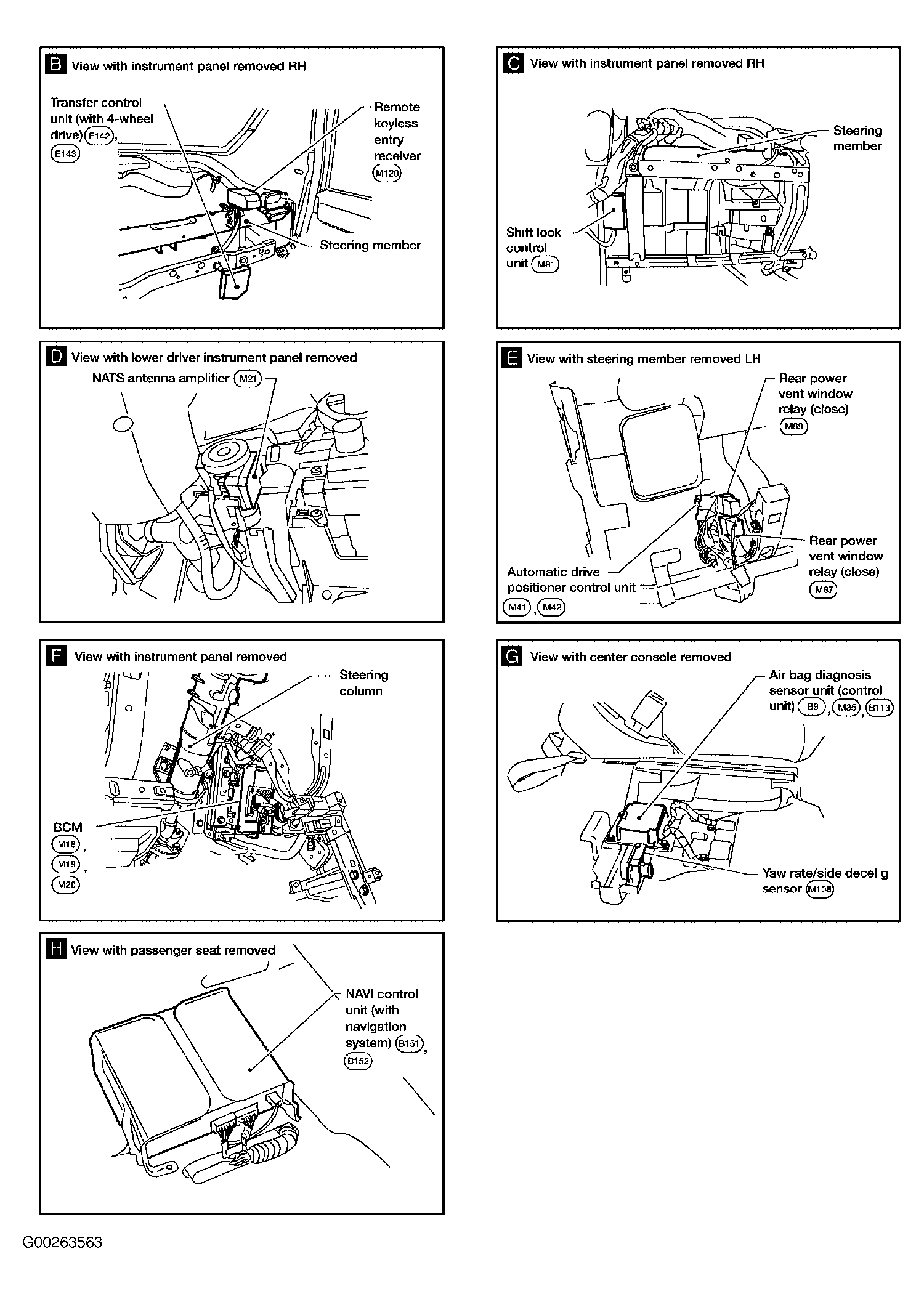

Fig 17: Dash Views (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

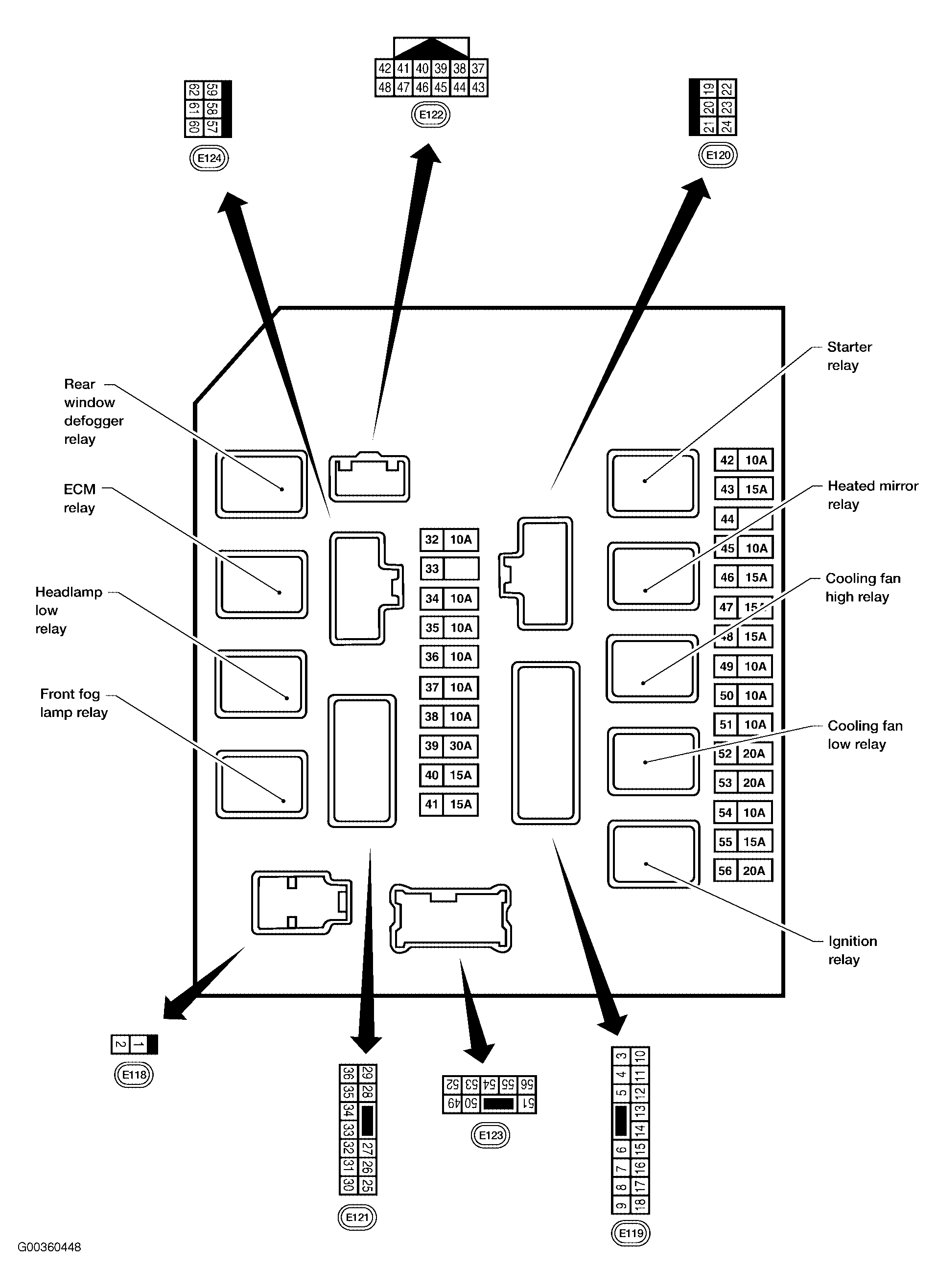

Fig 18: Fuse & Relay Box

Courtesy of NISSAN MOTOR CO., U.S.A.

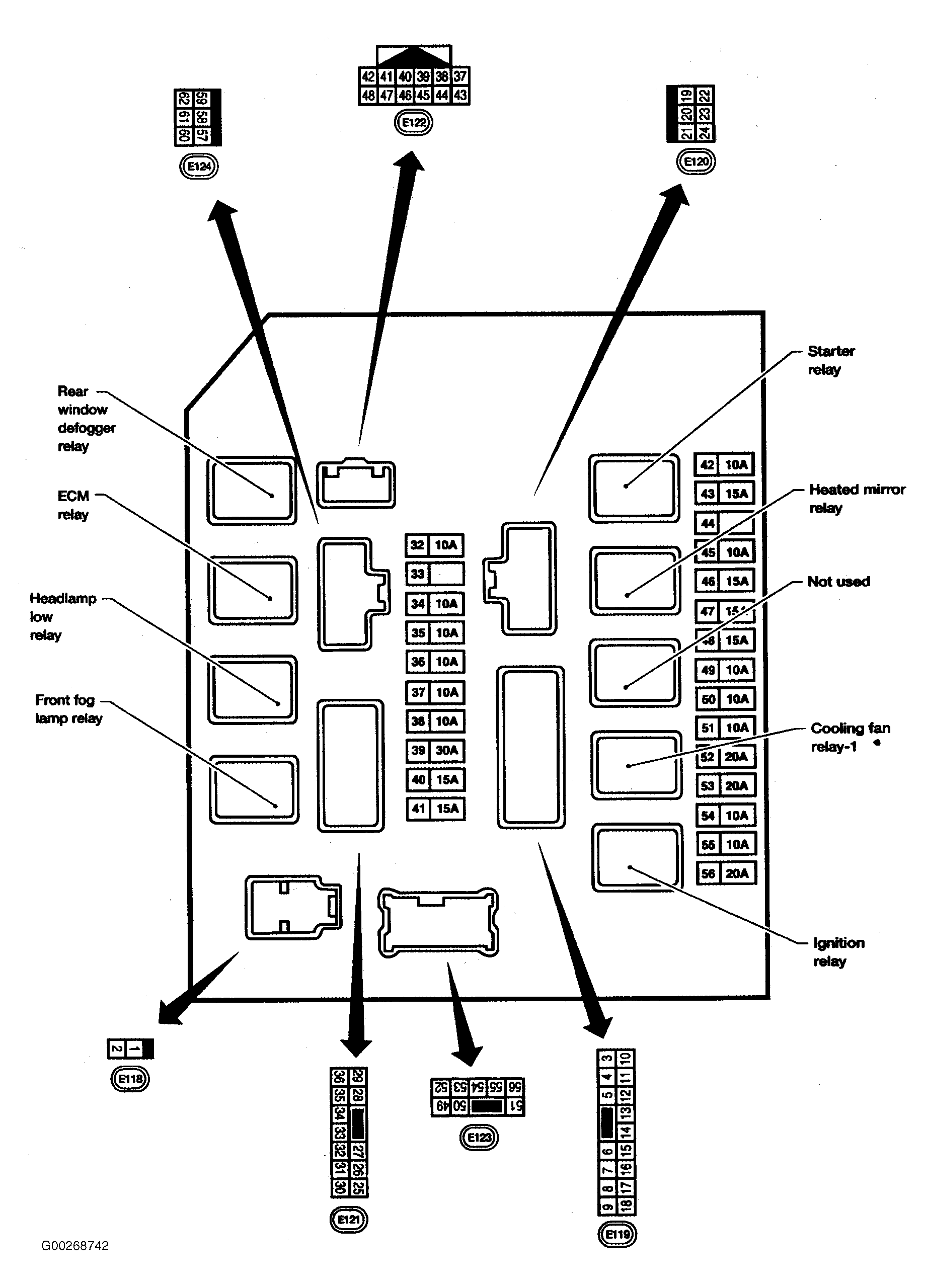

Fig 19: IPDM E/R (Intelligent Power Distribution Module Engine Room)

Courtesy of NISSAN MOTOR CO., U.S.A.
