Removal And Installation: Notes

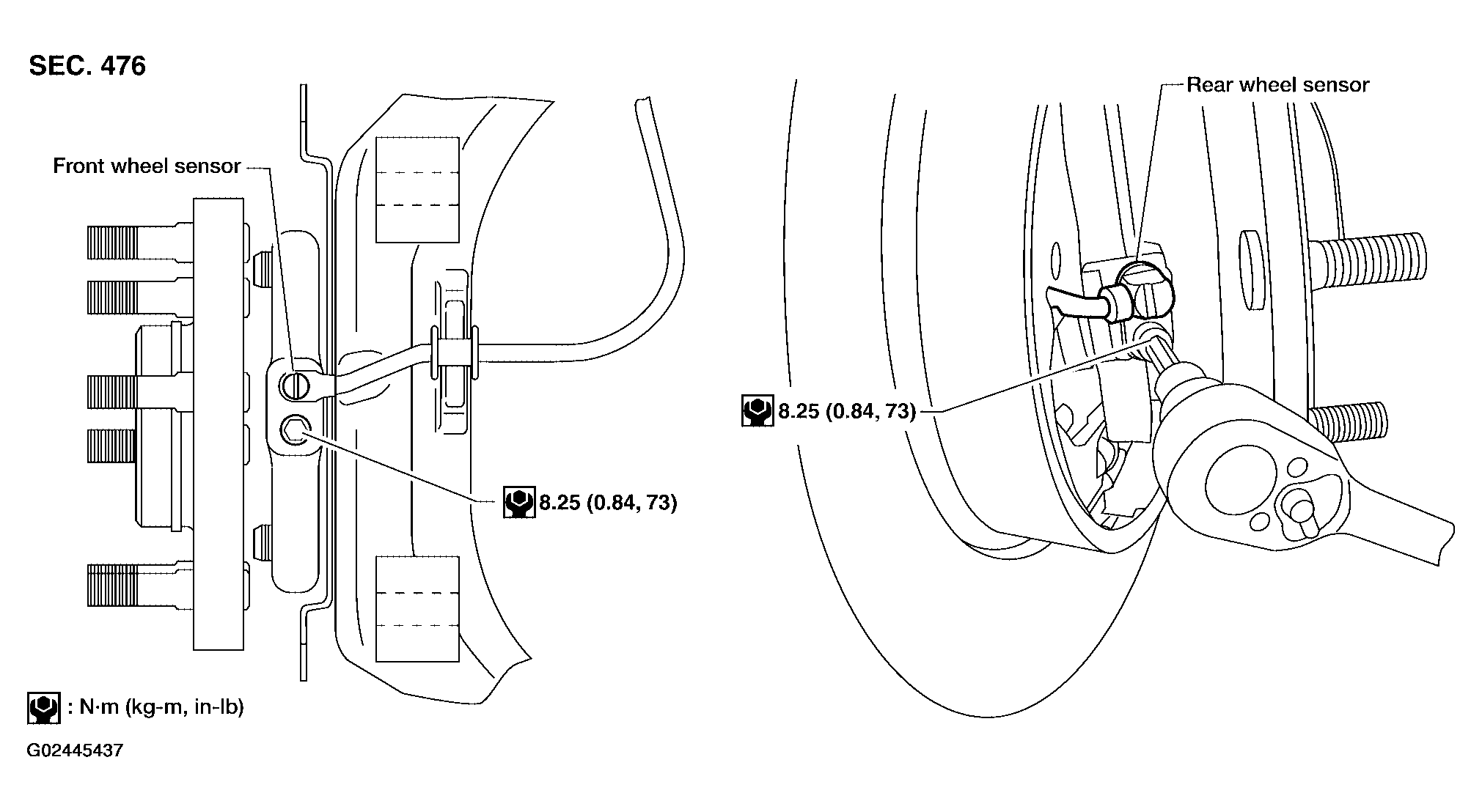

Fig 1: Wheel Sensor Bolts With Torque Specifications

G02445437

Courtesy of NISSAN MOTOR CO., U.S.A.
