Diagnostic Procedure

1. Remove the intake air duct.
2. Check if a foreign matter is caught between the throttle valve and the housing.

OK or NG

• OK: GO TO  2.
• NG: Remove the foreign matter and clean the electric throttle control actuator inside.

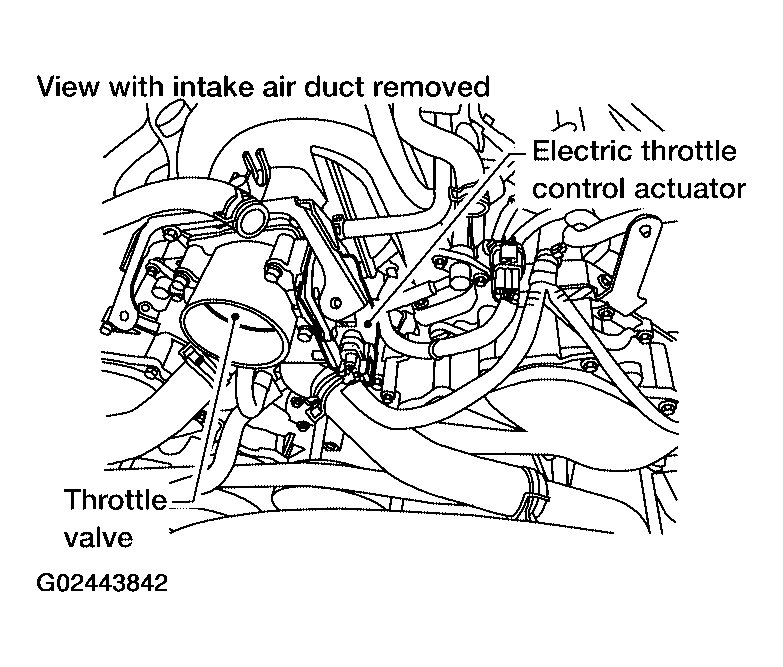

Fig 1: Removing Intake Air Duct

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Replace the electric throttle control actuator.
2. Perform THROTTLE VALVE CLOSED POSITION LEARNING .
3. Perform IDLE AIR VOLUME LEARNING .
   • INSPECTION END
