Specifications with CONSULT-II

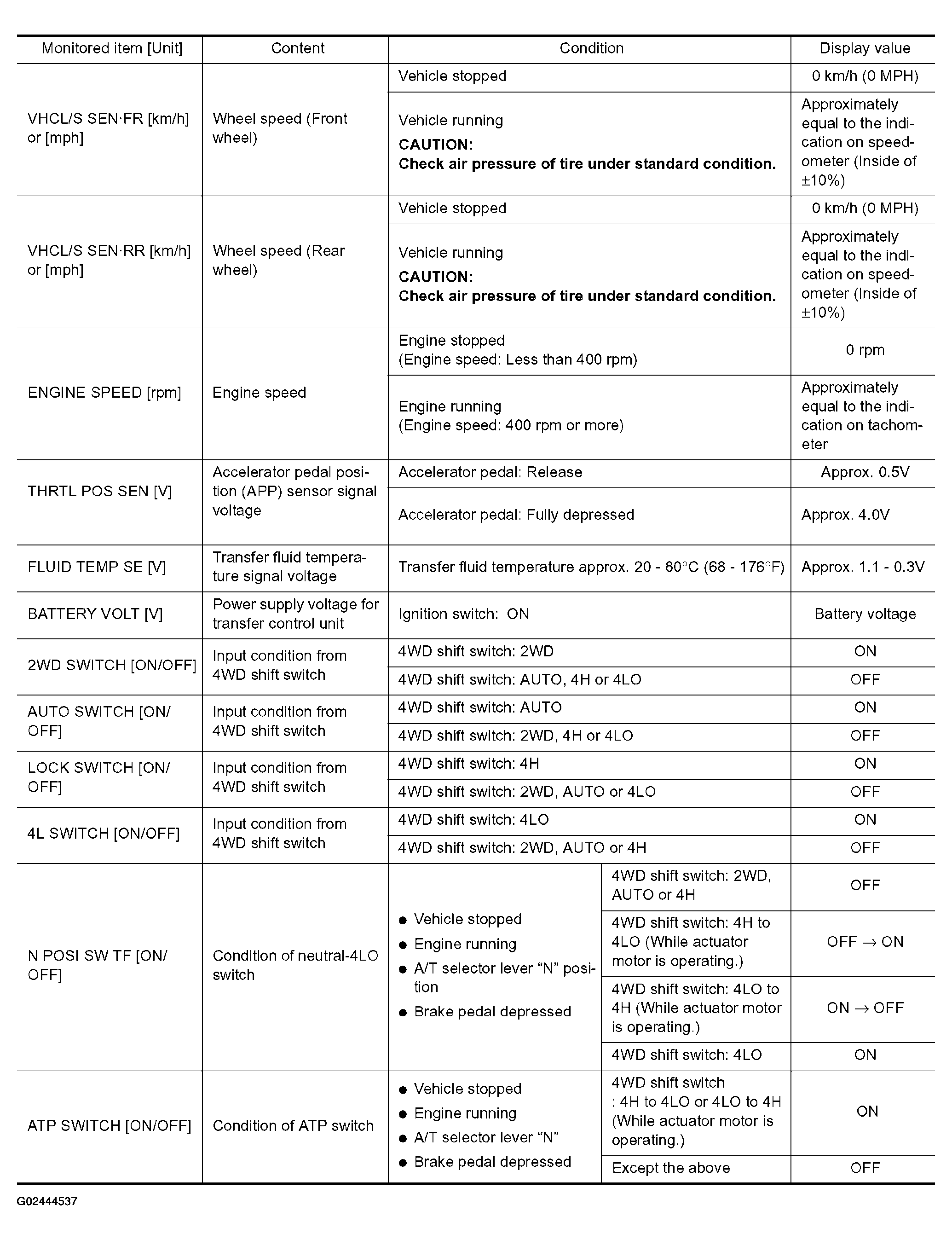

Fig 1: Transfer Control Unit Inspection Table (1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

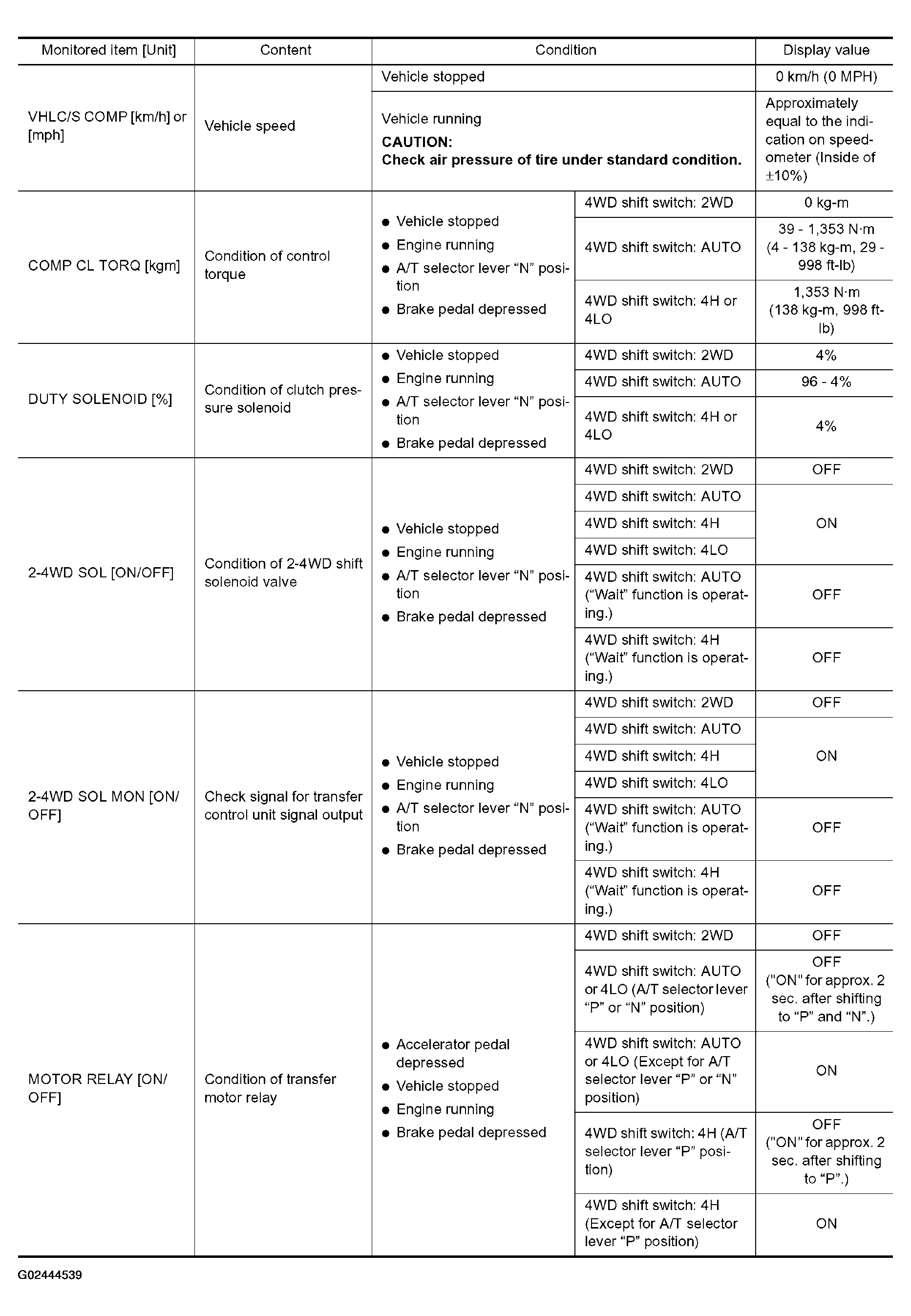

Fig 2: Transfer Control Unit Inspection Table (2 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

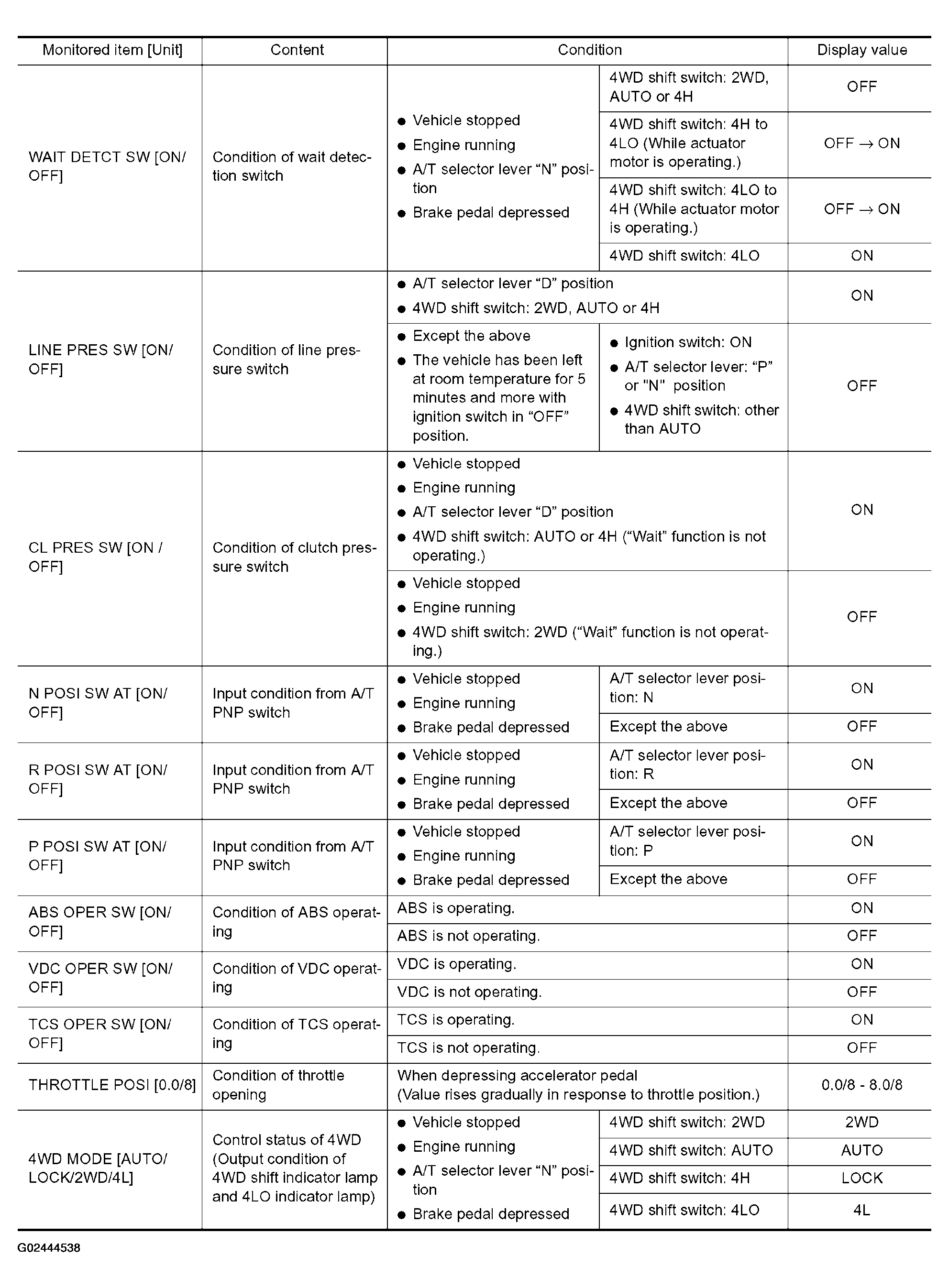

Fig 3: Transfer Control Unit Inspection Table (3 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

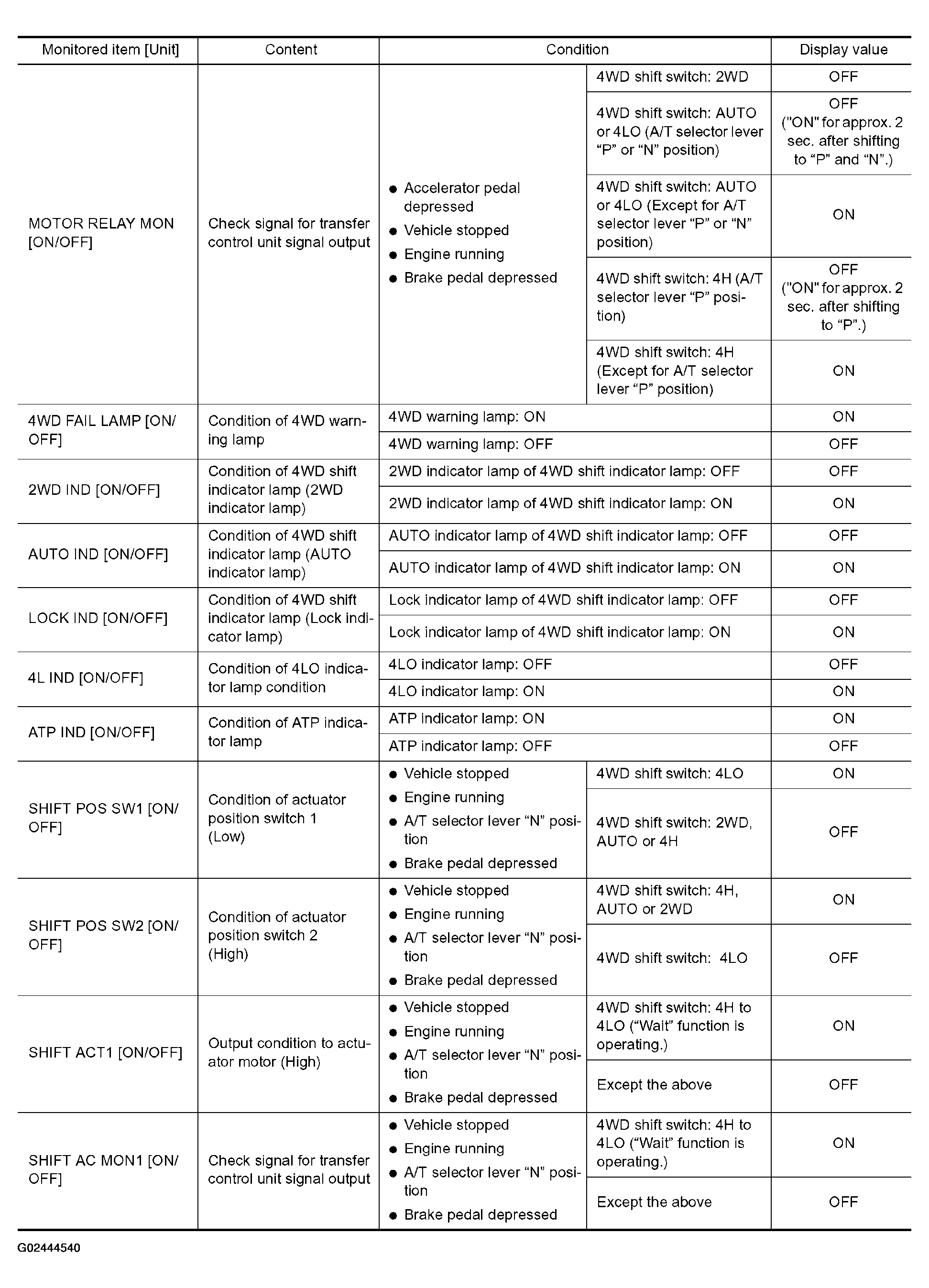

Fig 4: Transfer Control Unit Inspection Table (4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

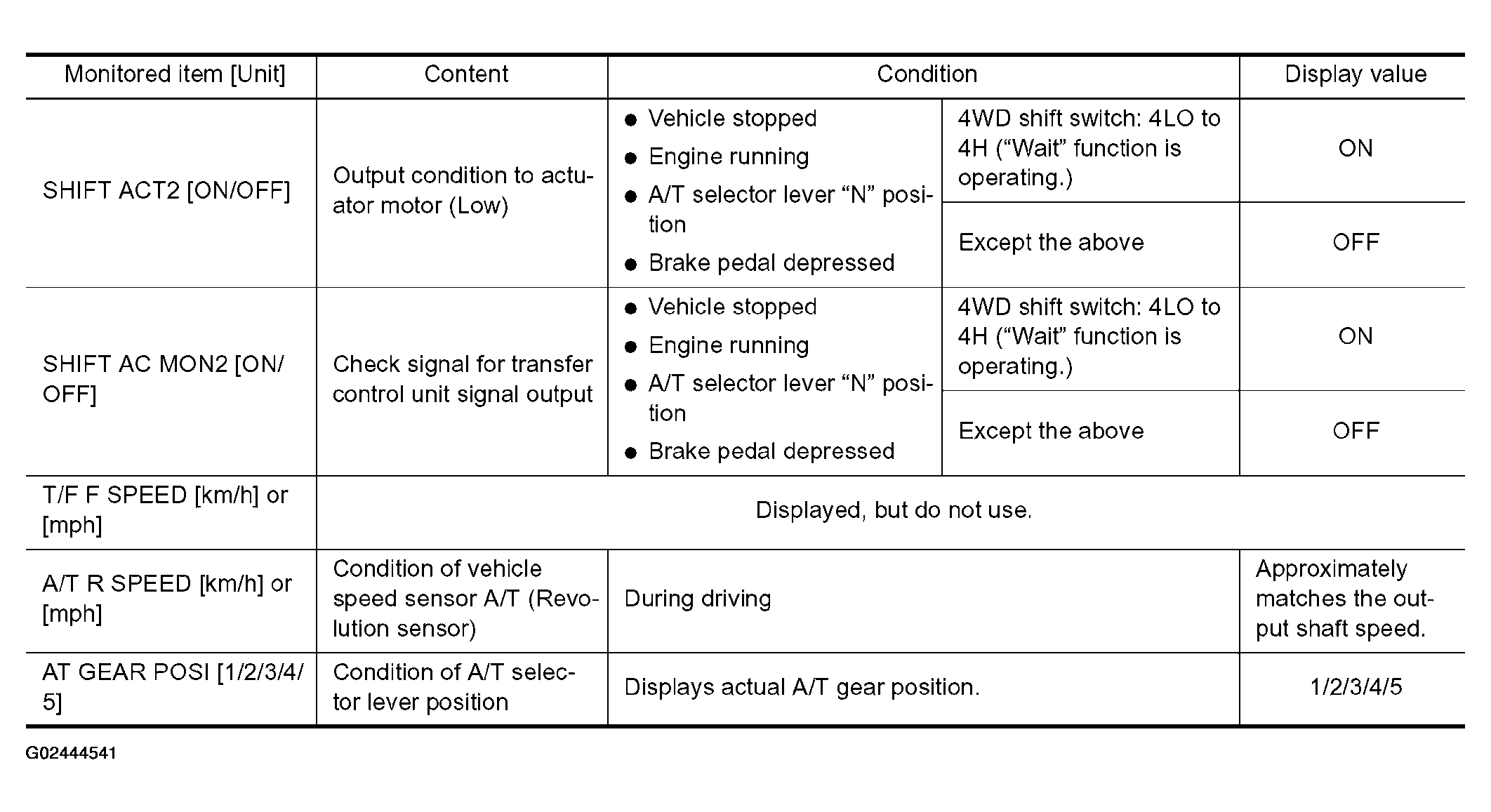

Fig 5: Transfer Control Unit Inspection Table (5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.
