Consult-II Reference Value In Data Monitor Mode

Data are reference value.

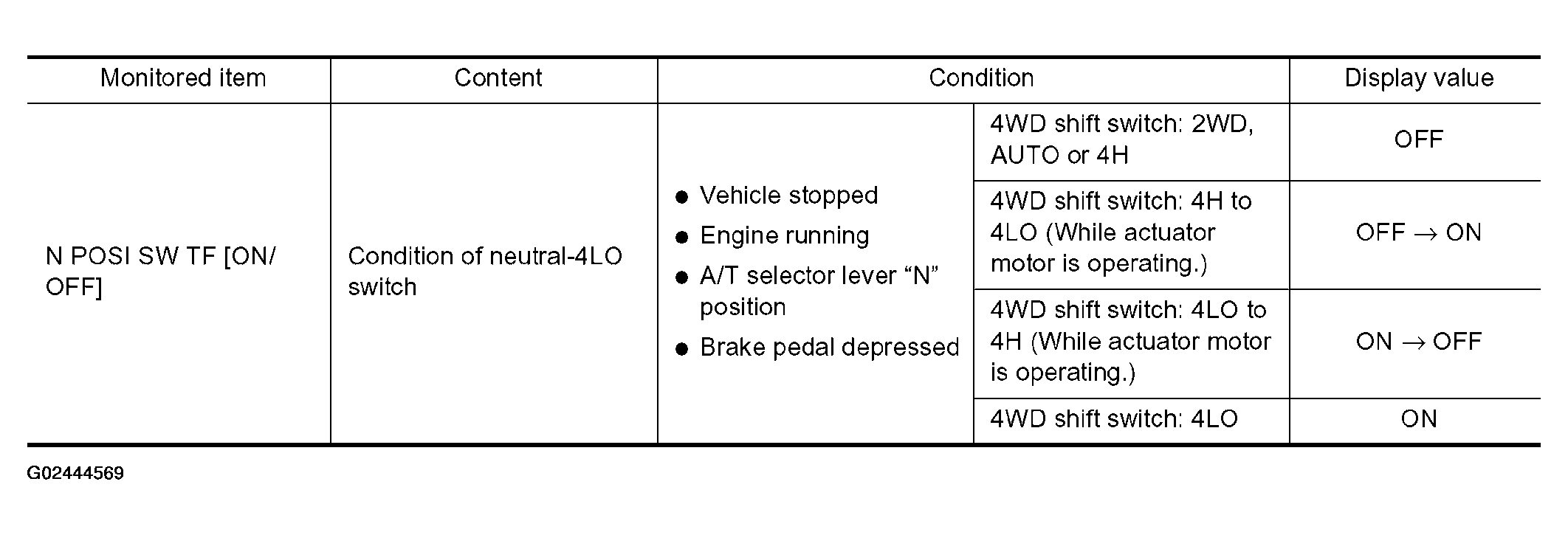

Fig 1: CONSULT-II Reference Value In Data Monitor Mode Chart

G02444569

Courtesy of NISSAN MOTOR CO., U.S.A.
