Disassembly and Assembly: Components

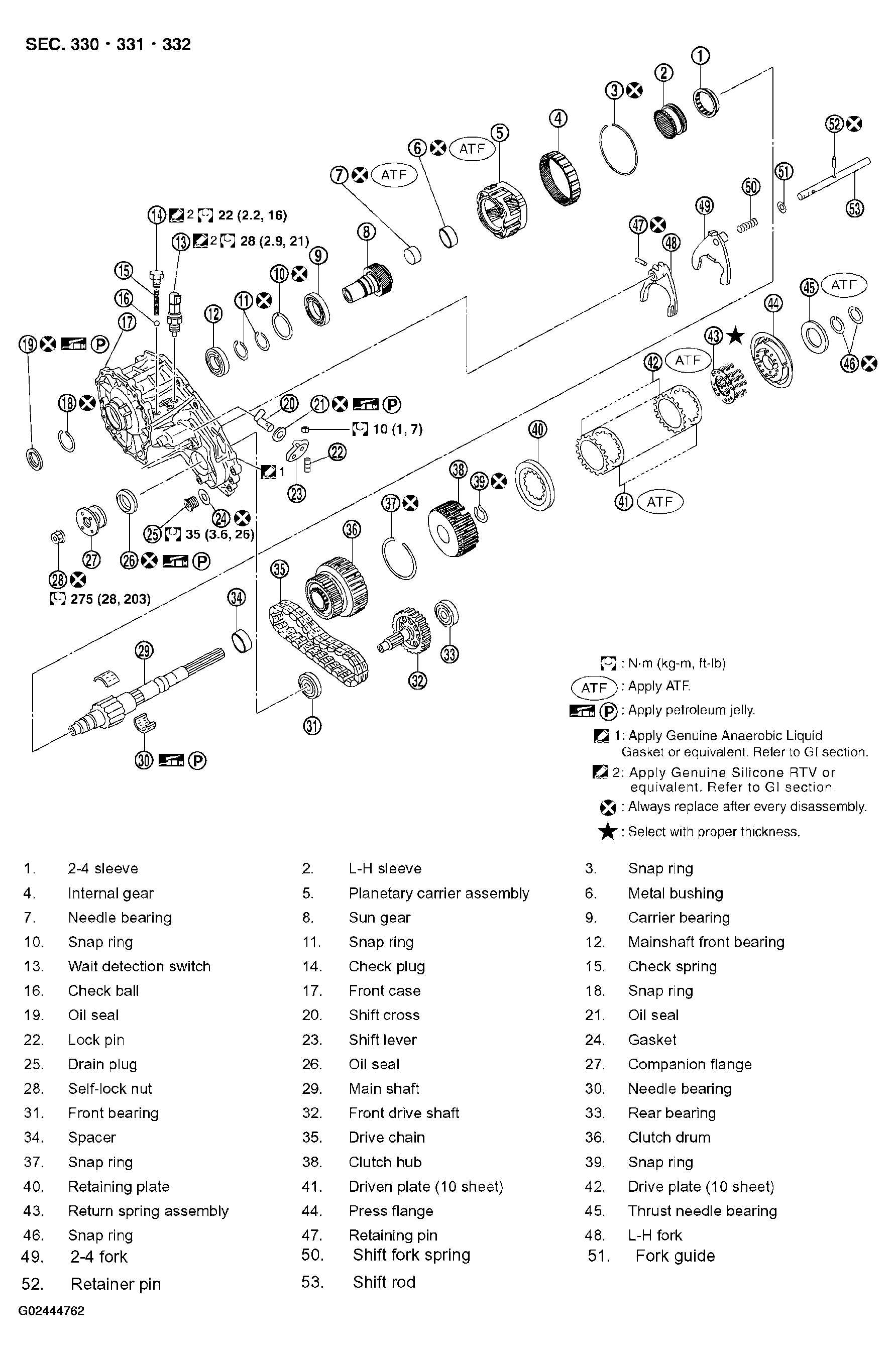

Fig 1: Transfer Assembly Components (1 Of 2) With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

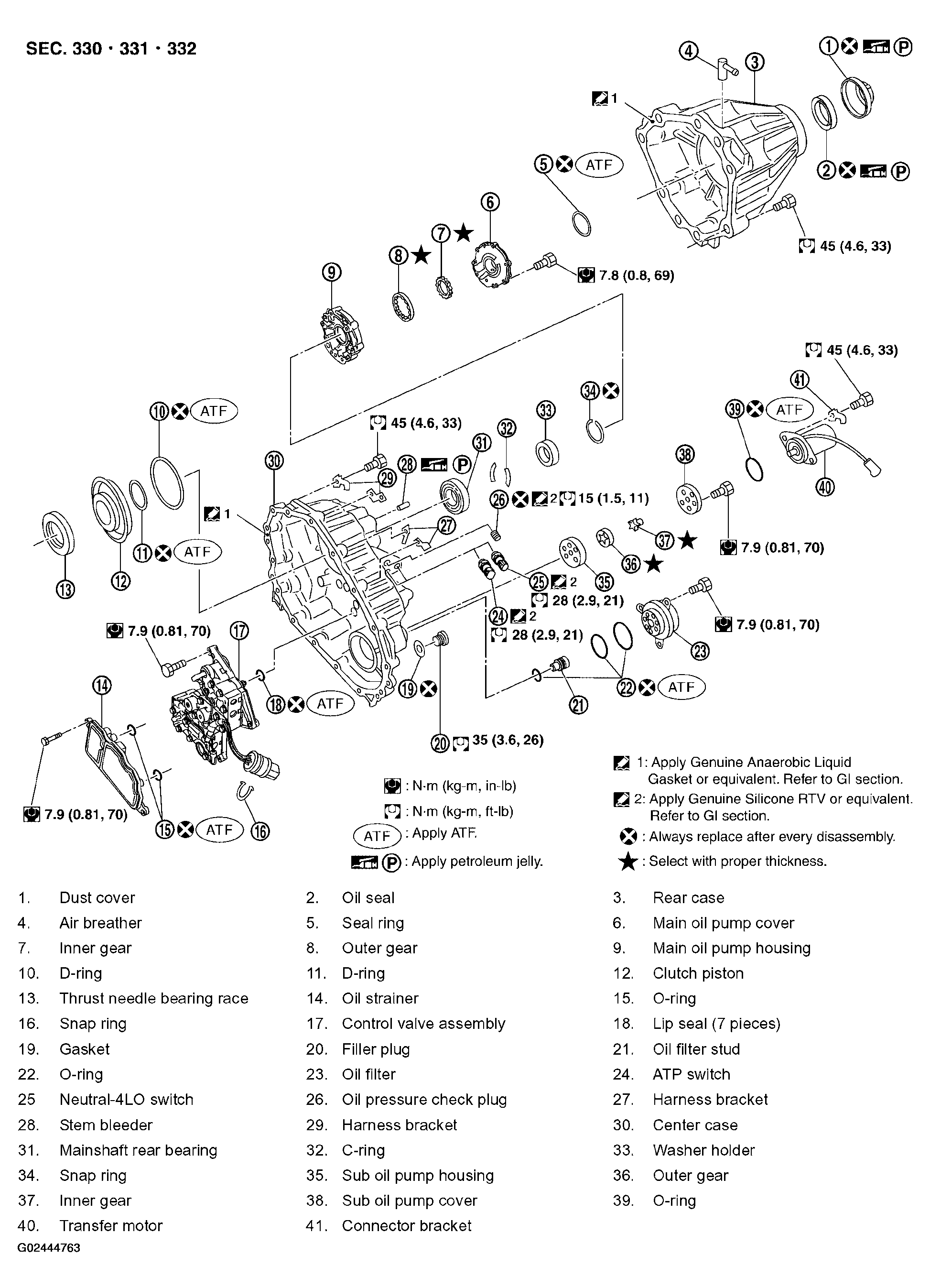

Fig 2: Transfer Assembly Components (2 Of 2) With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
