System Diagram: Notes

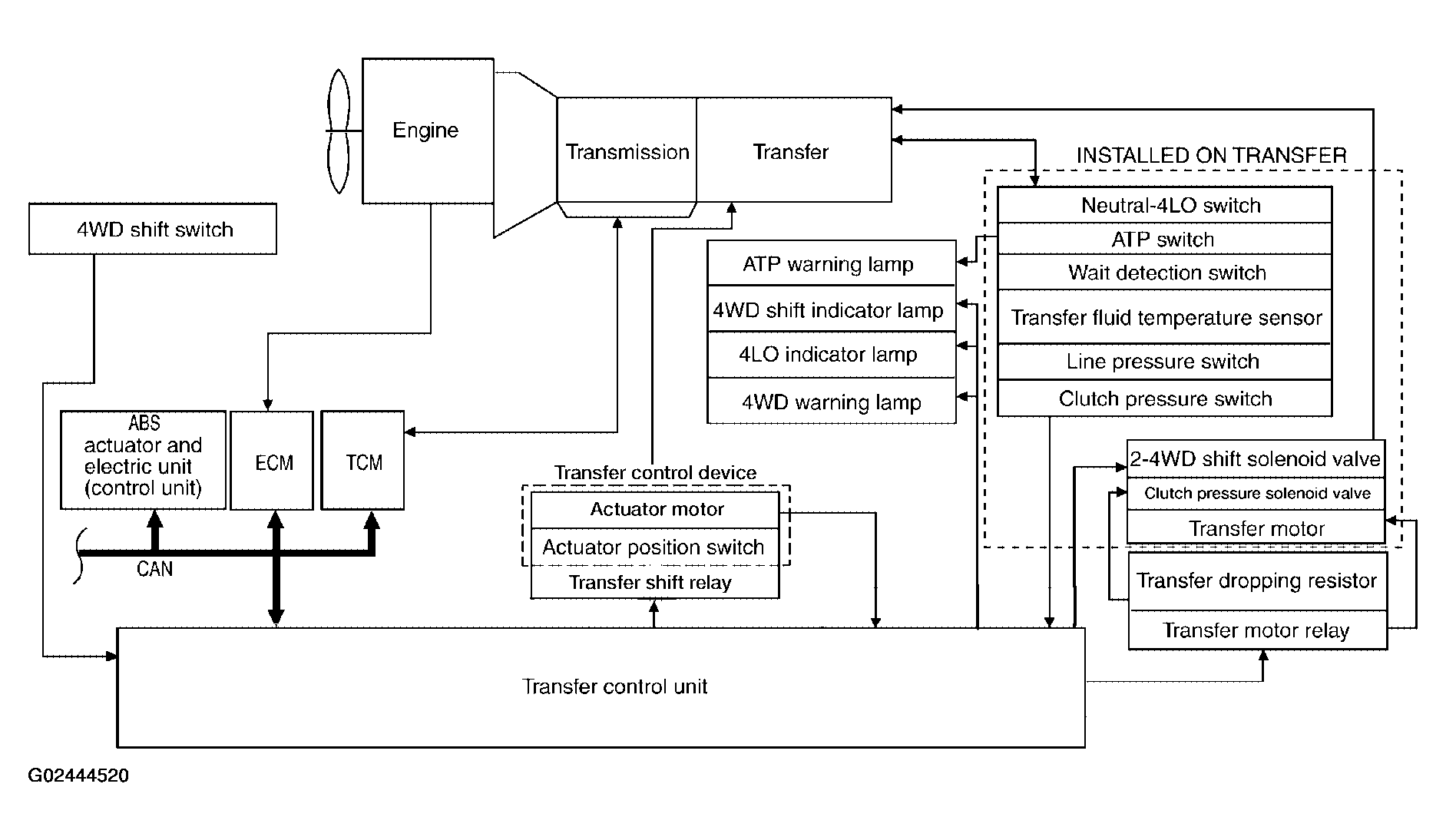

Fig 1: ATP Warning Lamp - System Diagram

G02444520

Courtesy of NISSAN MOTOR CO., U.S.A.
