Control System: Notes

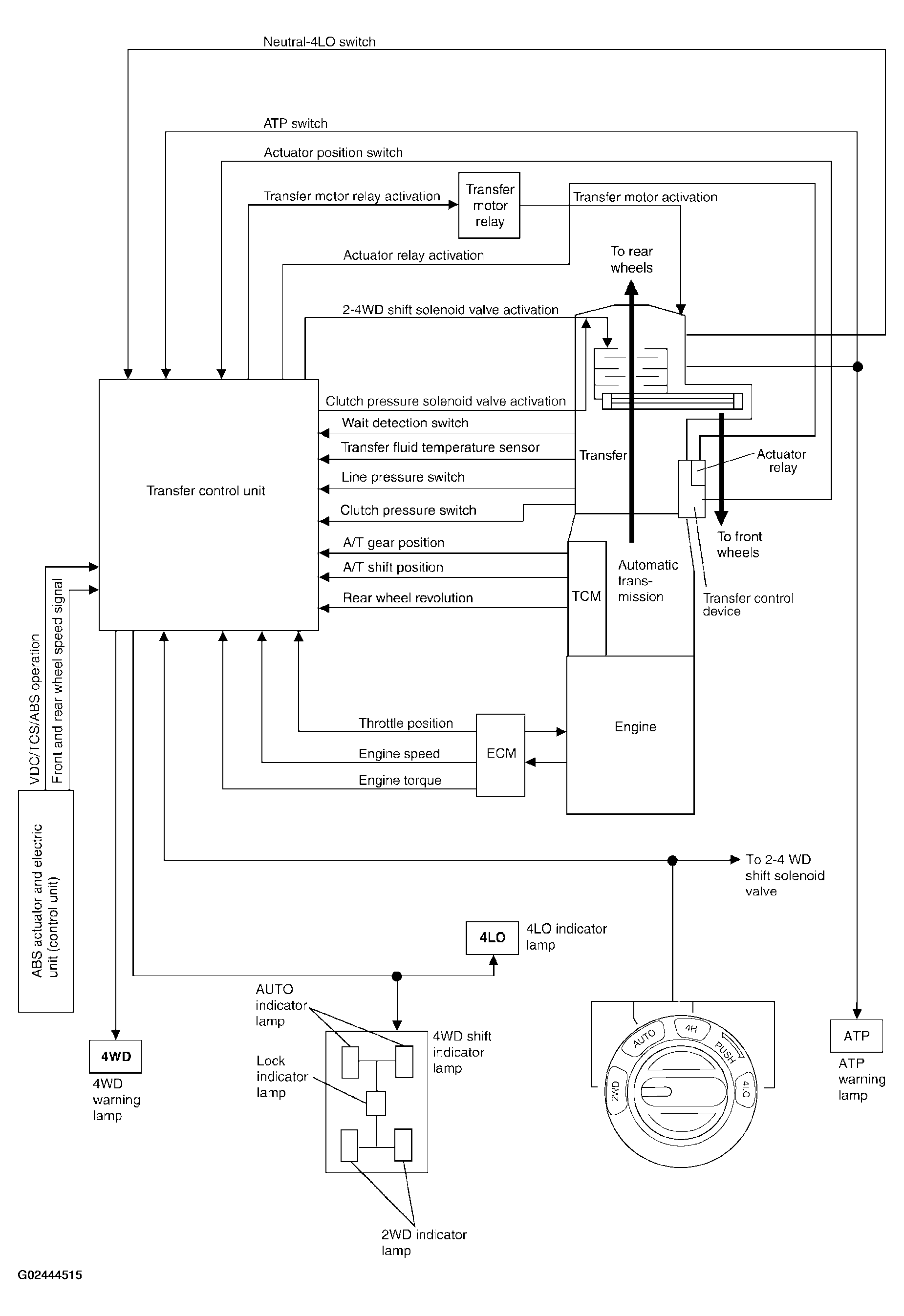

Fig 1: Control System Description Diagram

G02444515

Courtesy of NISSAN MOTOR CO., U.S.A.
