ALL-MODE 4WD Transfer Basic Control

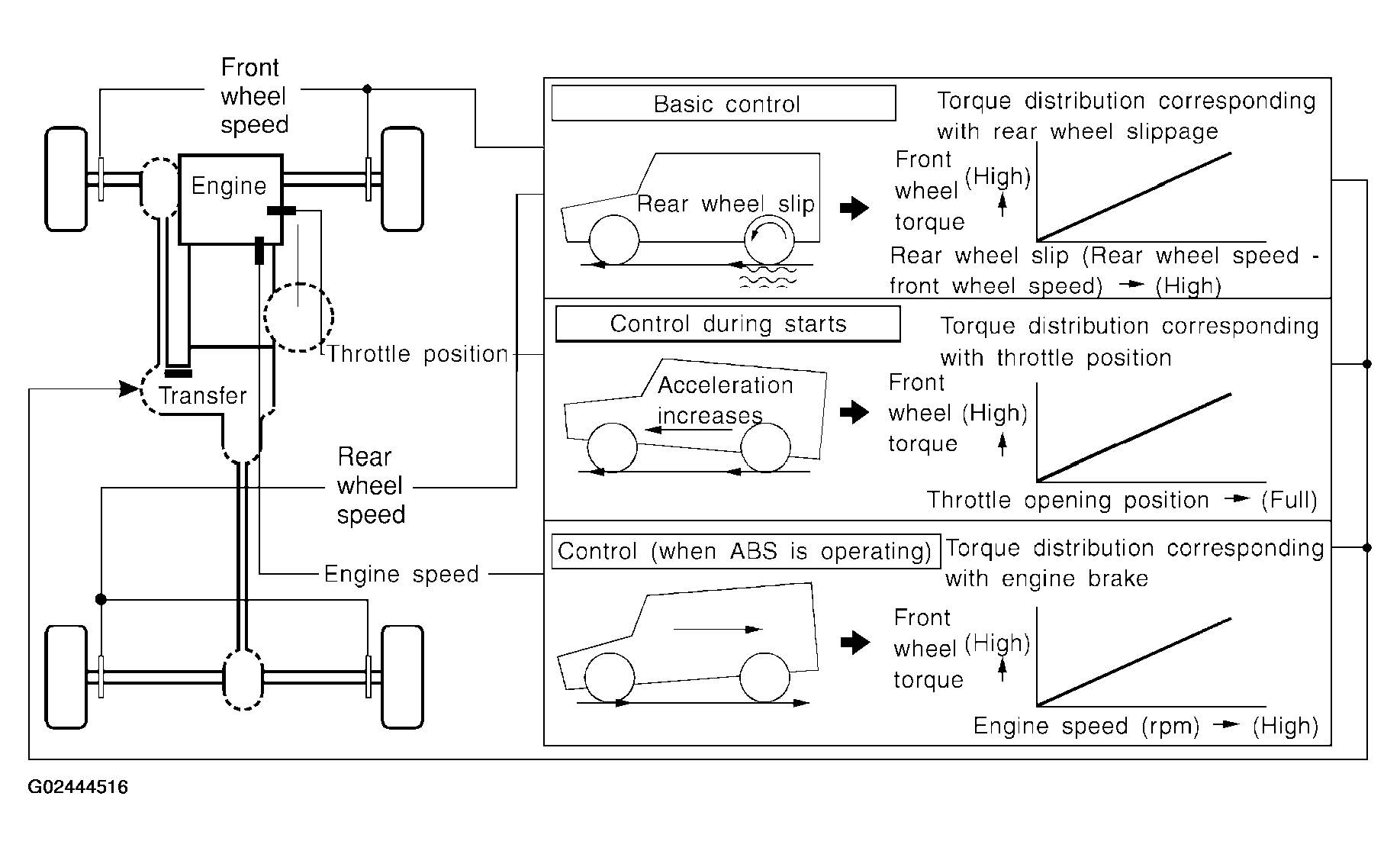

Fig 1: All-Mode 4WD Transfer Basic Control - Diagram

G02444516

Courtesy of NISSAN MOTOR CO., U.S.A.
