Removal And Installation: Notes

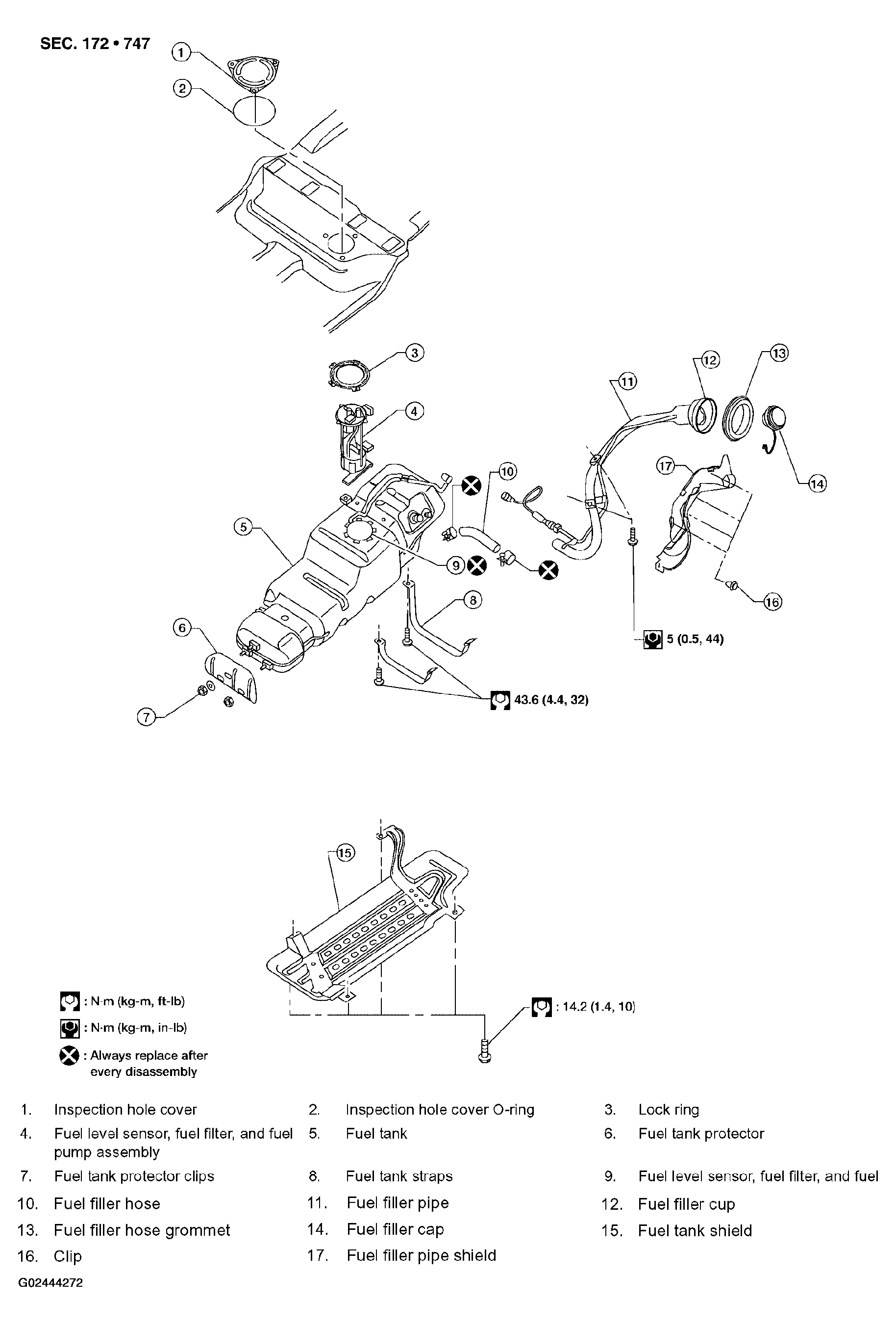

Fig 1: Fuel Tank Replacement Components With Torque Specifications

G02444272

Courtesy of NISSAN MOTOR CO., U.S.A.
