Overall Sequence
Overall Sequence

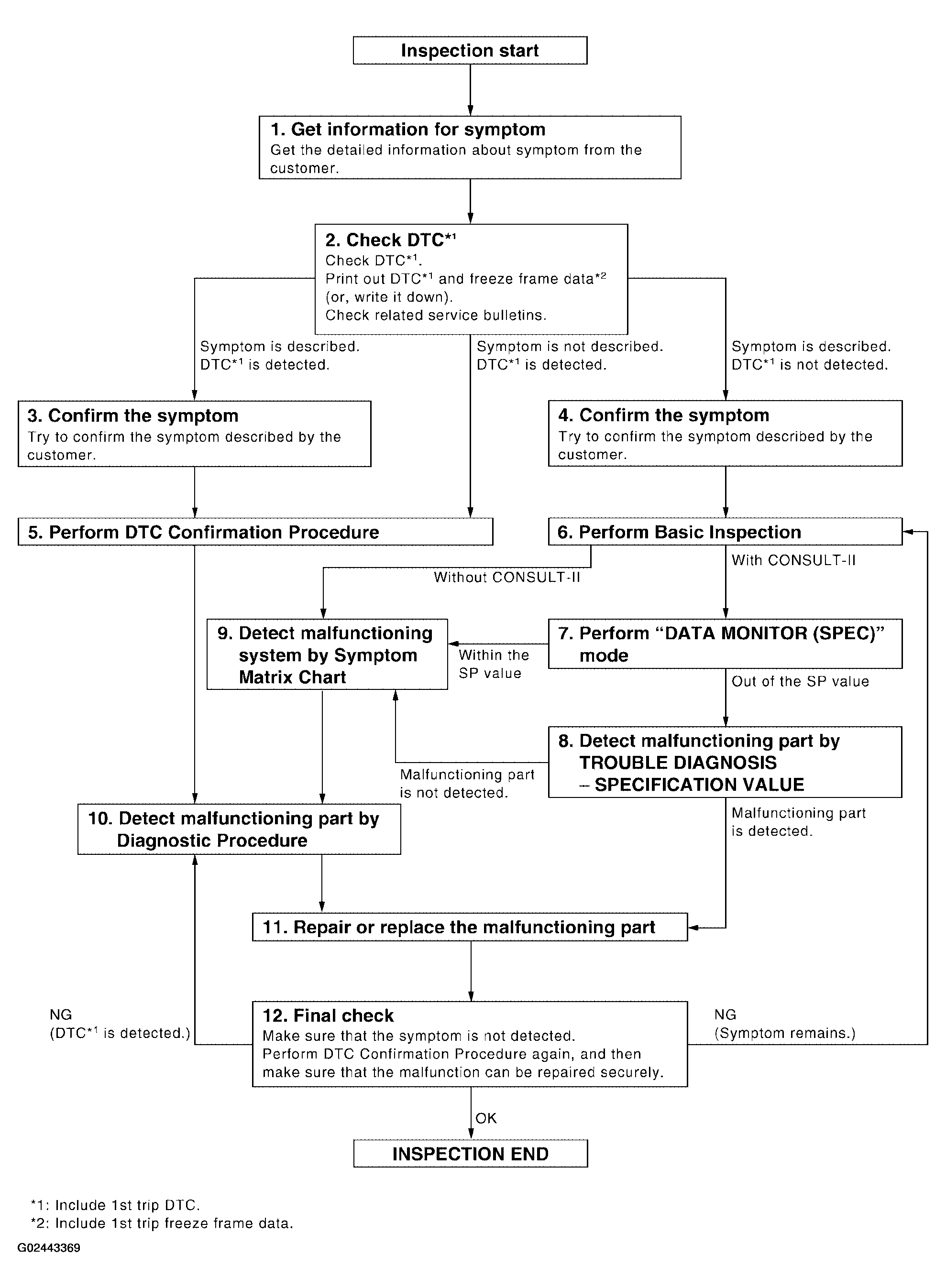

Fig 1: Troubleshooting Work Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
