Monitored Item

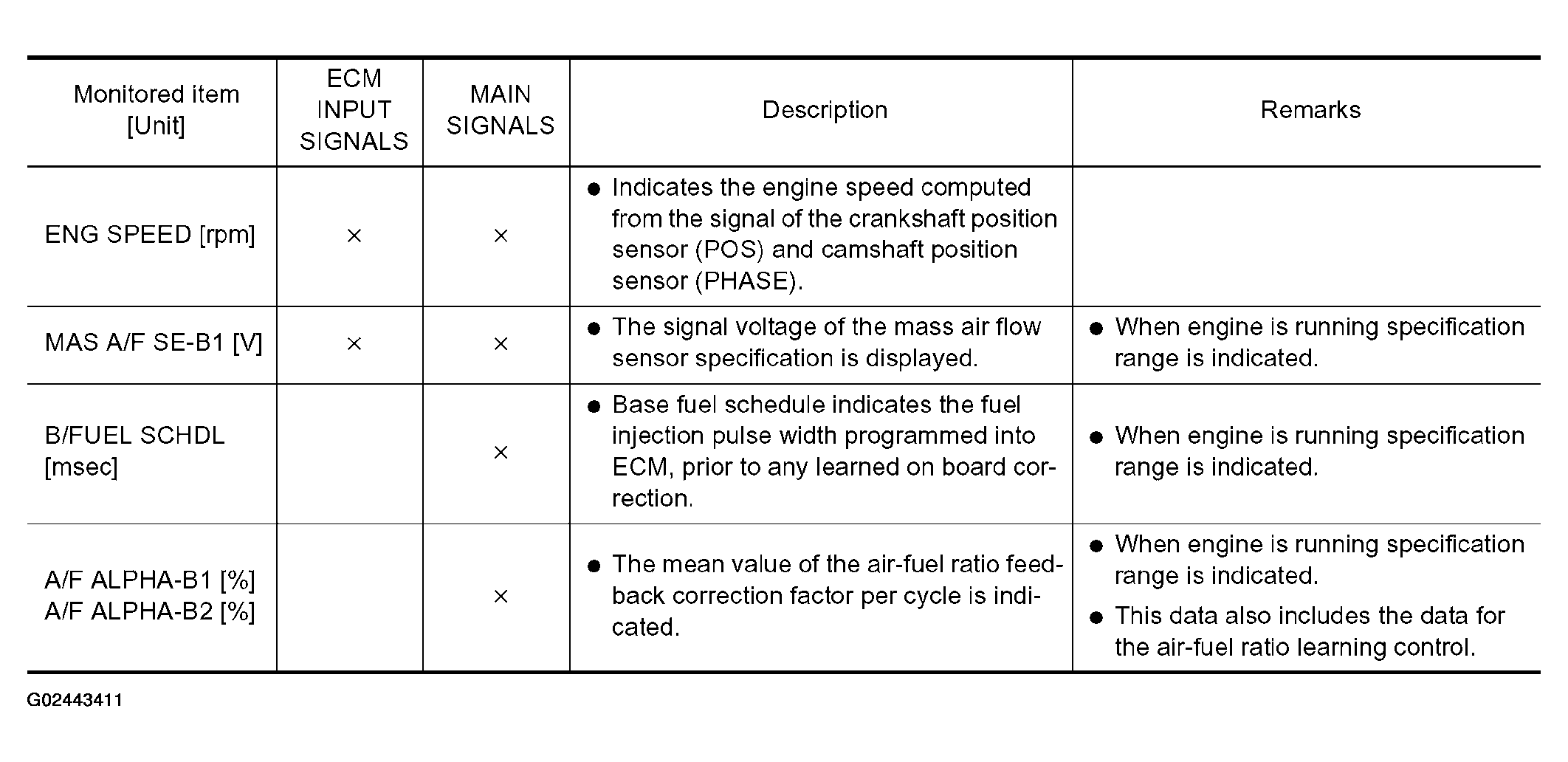

Fig 1: Data Monitor Mode Chart (SPEC)
G02443411Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
