With Consult-II

  1. Turn ignition switch ON.
  2. Select "P/N POSI SW" in "DATA MONITOR" mode with CONSULT-II. Then check the "P/N POSI SW" signal under the following conditions.
    SELECTOR LEVER SPECIFICATION

    Position (Selector lever) Known-good signal
    N or P position ON
    Except the above position OFF

    If NG, go to DIAGNOSTIC PROCEDURE .

    If OK, go to following step.

    Fig 1: CONSULT-II Display - "DATA MONITOR" Mode
    G02444124Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Select "DATA MONITOR" mode with CONSULT-II.
  4. Start engine and warm it up to normal operating temperature.
  5. Maintain the following conditions for at least 60 consecutive seconds.
    ENGINE SPEED SPECIFICATION

    ENG SPEED More than 1, 000 rpm
    COOLAN TEMP/S More than 70°C (158°F)
    B/FUEL SCHDL More than 2.0 msec
    VHCL SPEED SE More than 64 km/h (40 MPH)
    Selector lever Suitable position

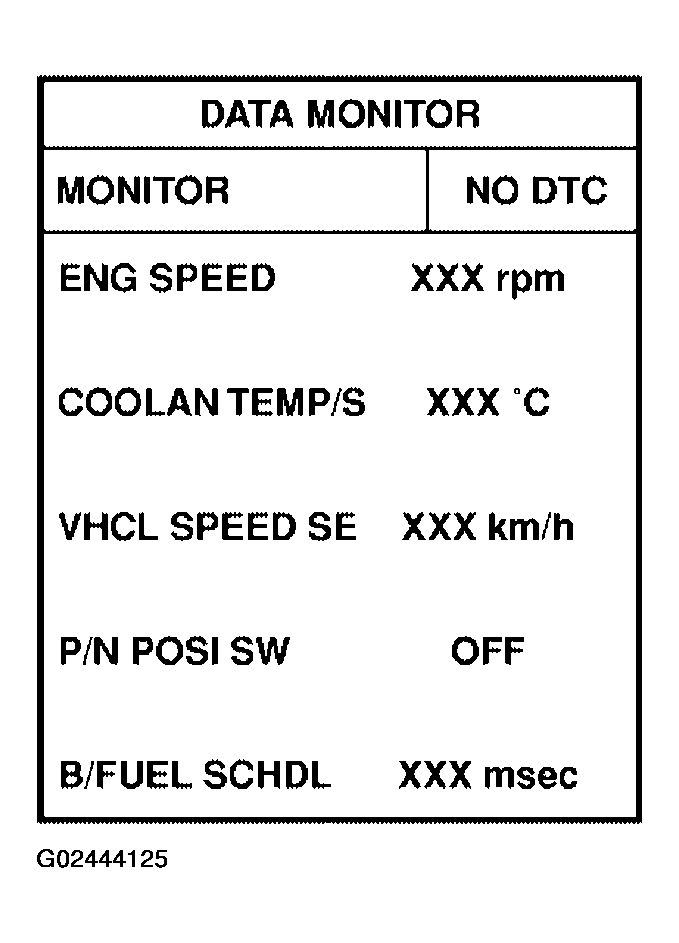

    Fig 2: CONSULT-II Display - "DATA MONITOR" Mode
    G02444125Courtesy of NISSAN MOTOR CO., U.S.A.
  6. If 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE .
