DTC P0506: ISC System
>>
On Board Diagnosis Logic
On Board Diagnosis Logic

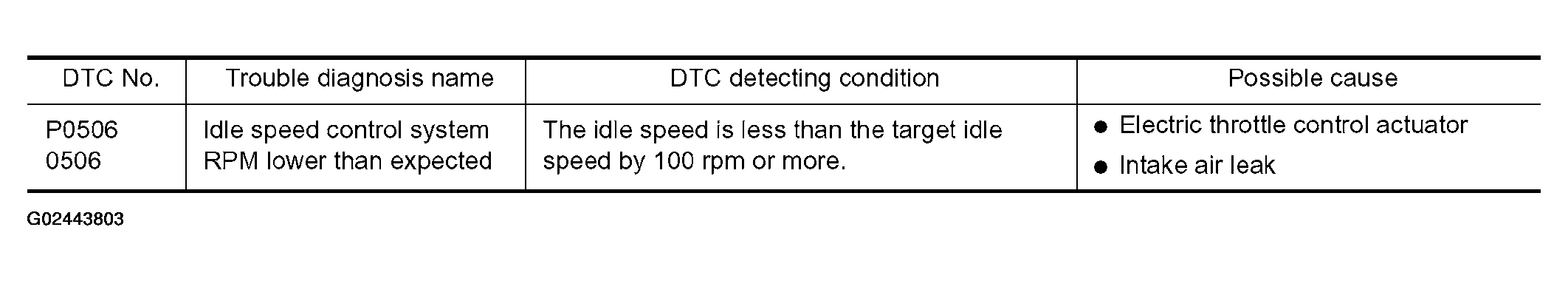

Fig 1: DTC Condition Detecting Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
