Armada LE, 4WD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control System
>>
DTC P0171, P0174: Fuel Injection System Function
>>
Wiring Diagram
>>
Bank 1
Bank 1

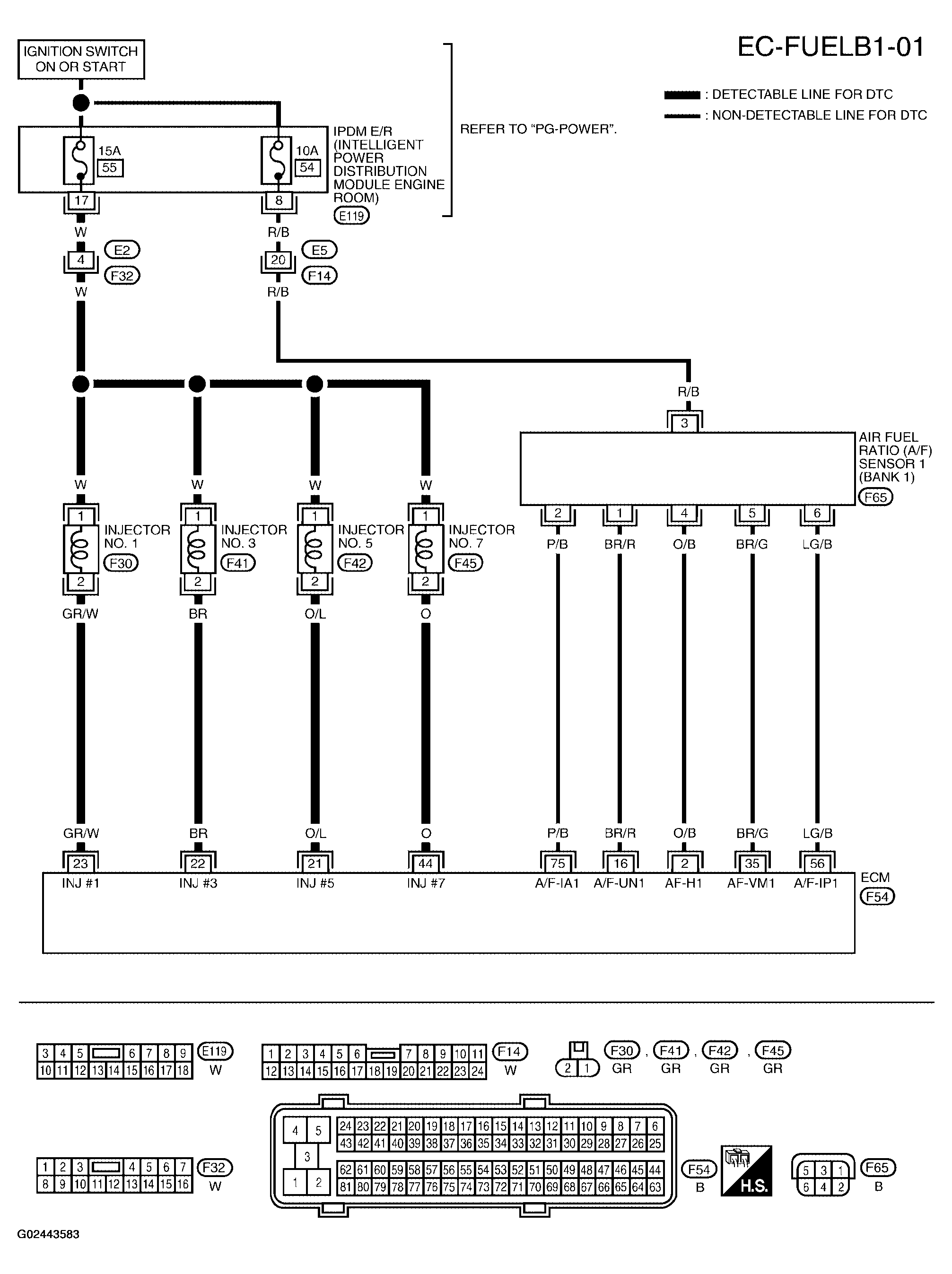

Fig 1: Wiring Diagram - (EC-FUELB1-01)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
