Armada LE, 4WD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control System
>>
DTC P0117, P0118: ECT Sensor
>>
Wiring Diagram
DTC P0117, P0118: ECT Sensor: Wiring Diagram
For references to PG-POWER, see
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS

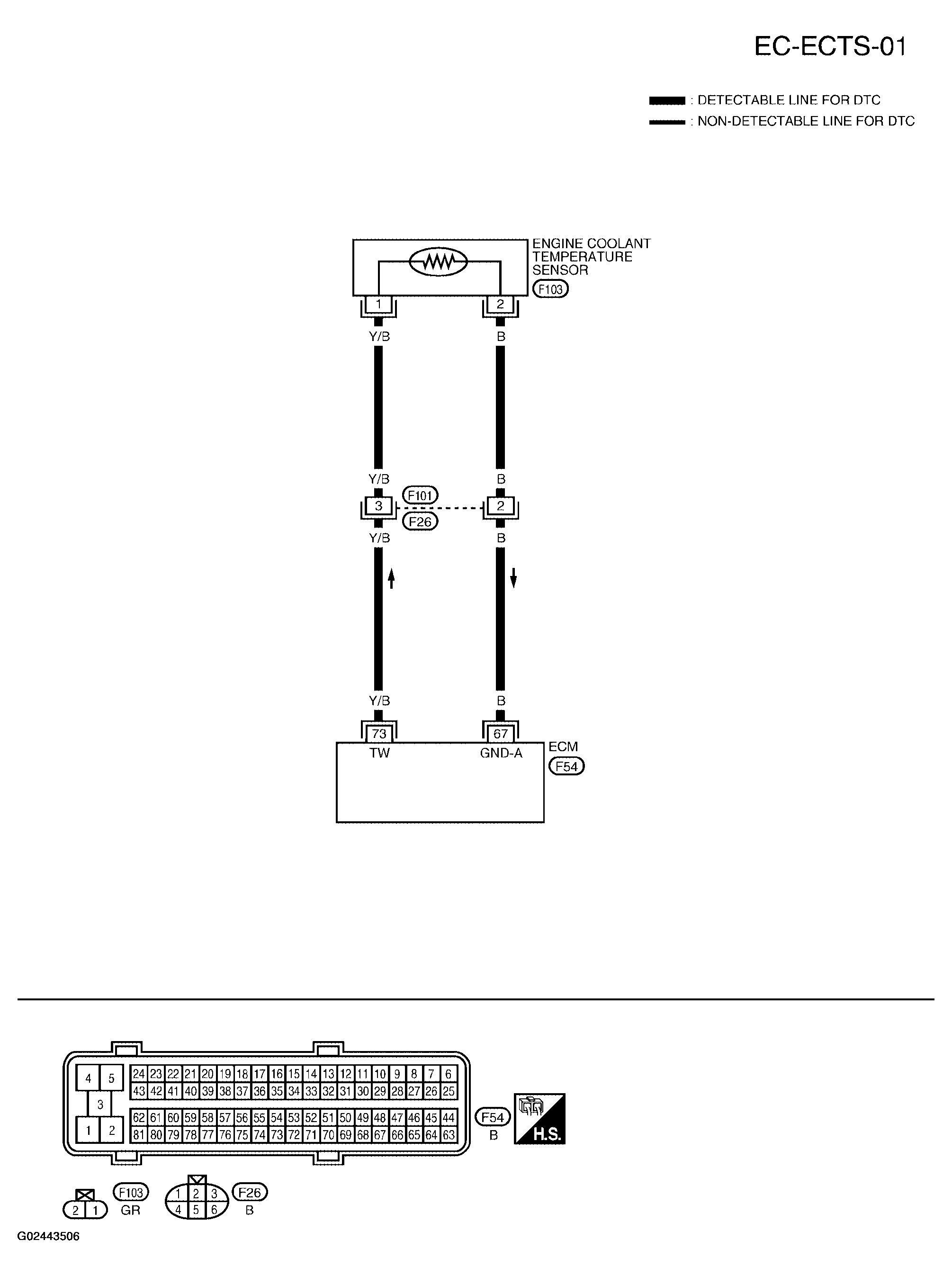

Fig 1: Wiring Diagram - (EC-ECTS-01)
Courtesy of NISSAN MOTOR CO., U.S.A.
