ASCD Indicator: Wiring Diagram

For references to PG-POWER, see POWER SUPPLY, GROUND & CIRCUIT ELEMENTS

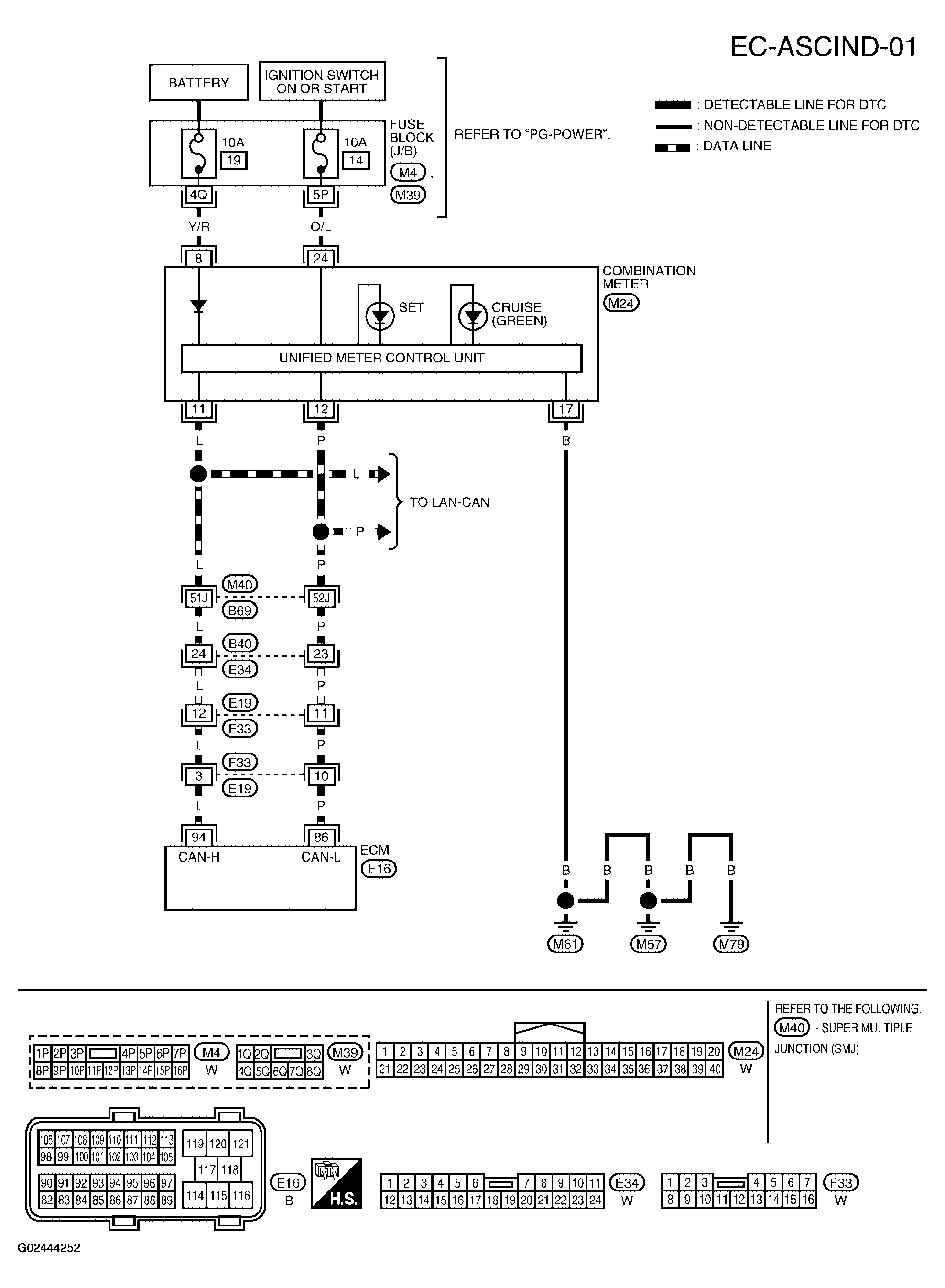

Fig 1: Wiring Diagram - (EC-ASCIND-01)

G02444252

Courtesy of NISSAN MOTOR CO., U.S.A.
