Home >> Nissan-Datsun >> 2005 >> Altima SE-R, Standard >> Repair and Diagnosis >> Transmission >> Clutch >> Clutch Pedal >> Components

Clutch Pedal: Components

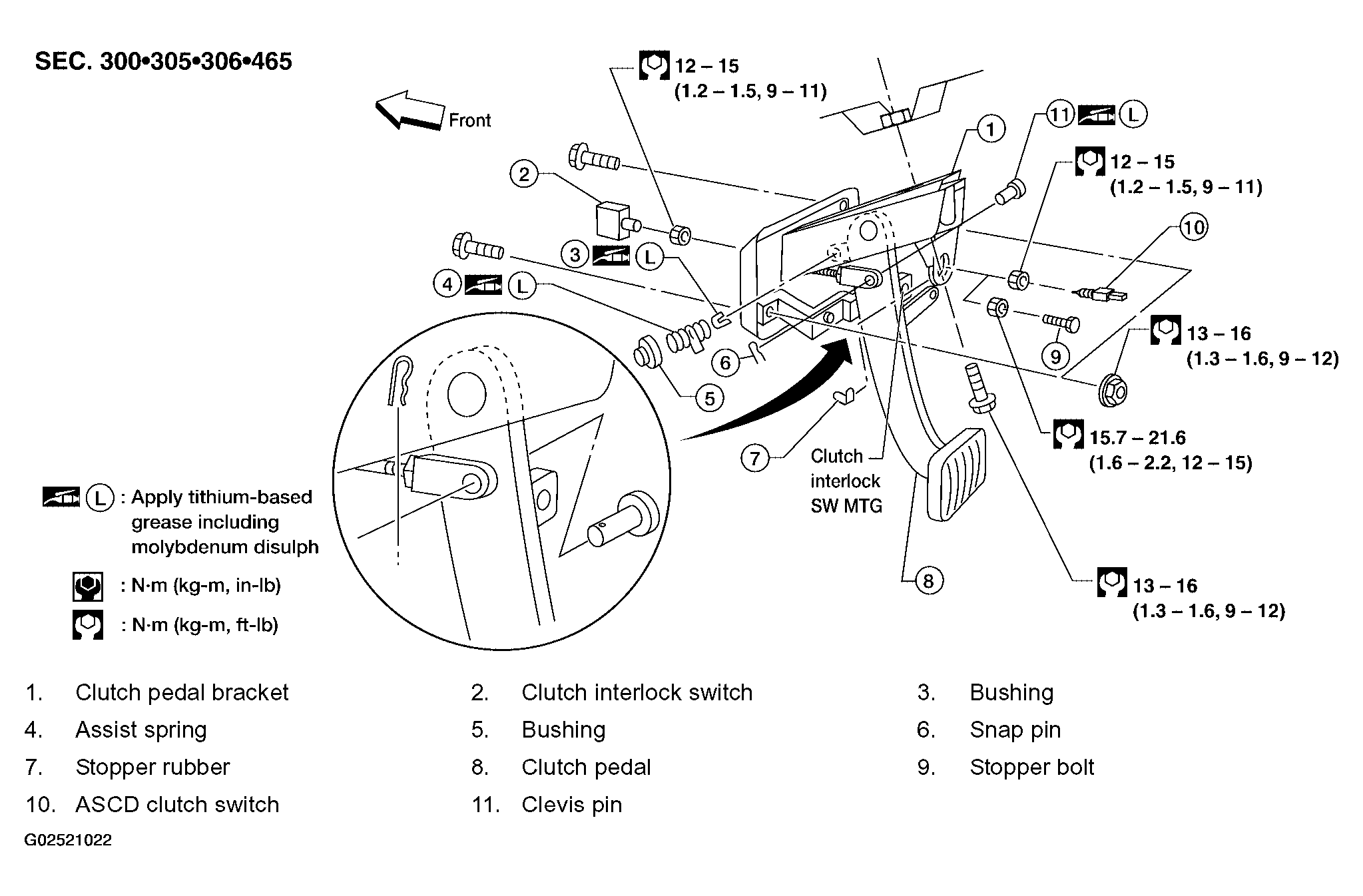

Fig 1: Identifying Clutch Pedal Components

G02521022

Courtesy of NISSAN MOTOR CO., U.S.A.
