Home >> Nissan-Datsun >> 2005 >> Altima SE-R, Standard >> Repair and Diagnosis >> Suspension >> Wheel Alignment >> Front Suspension >> Stabilizer Bar >> Removal and Installation >> Notes

Removal and Installation: Notes

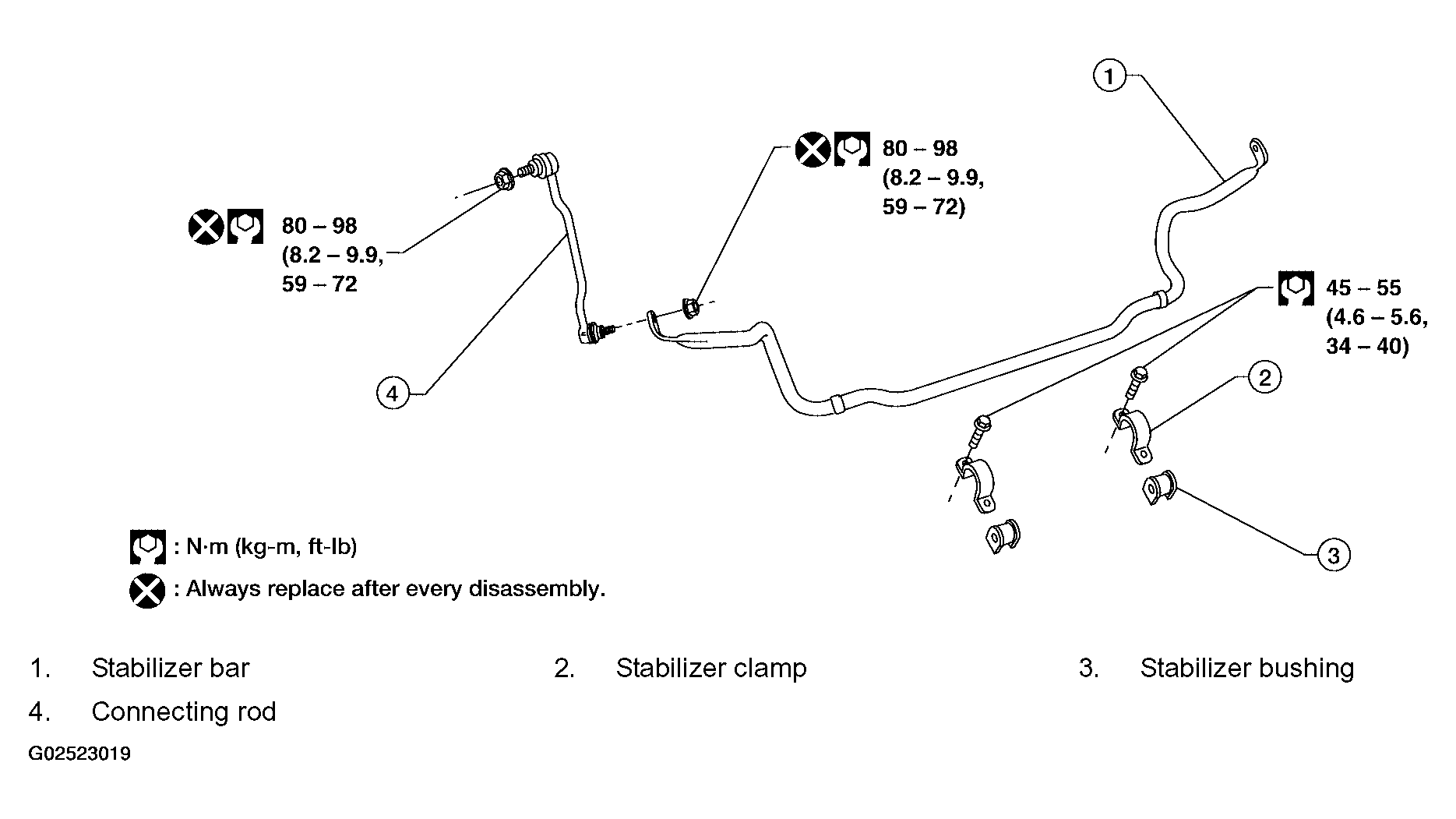

Fig 1: Identifying Stabilizer Bar Components

G02523019

Courtesy of NISSAN MOTOR CO., U.S.A.
