Disassembly And Assembly: Assembly
Assembly is in the reverse order of disassembly, noting the following instructions.
- Install new O-rings and make sure they are properly installed.
- Install new oil seal using a drift, and make sure oil seal direction is as shown in the illustration.
- Cam ring, rotor and vanes must be replaced as a set if necessary.
- Coat each part with Genuine NISSAN PSF when assembling.
- Pay attention to the direction of rotor.

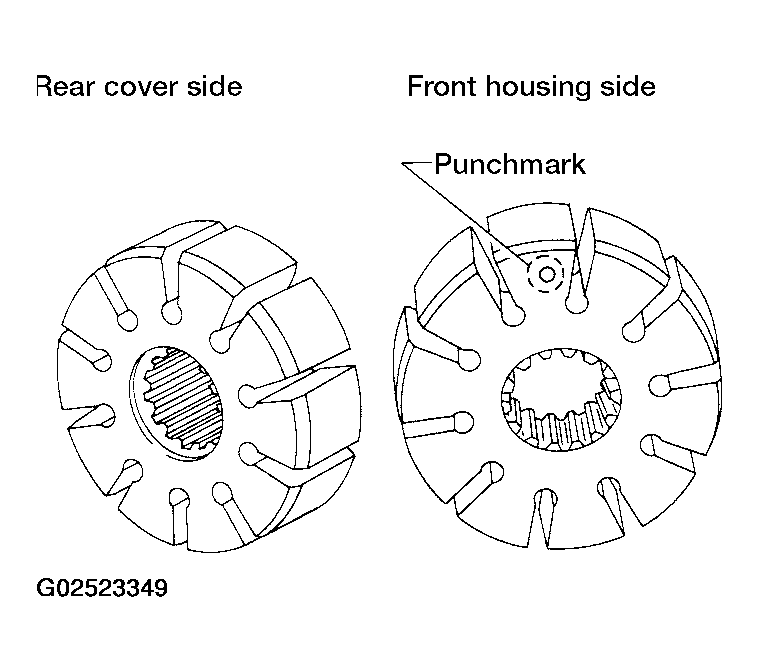

- When assembling vanes to rotor, rounded surfaces of vanes must face cam ring side.

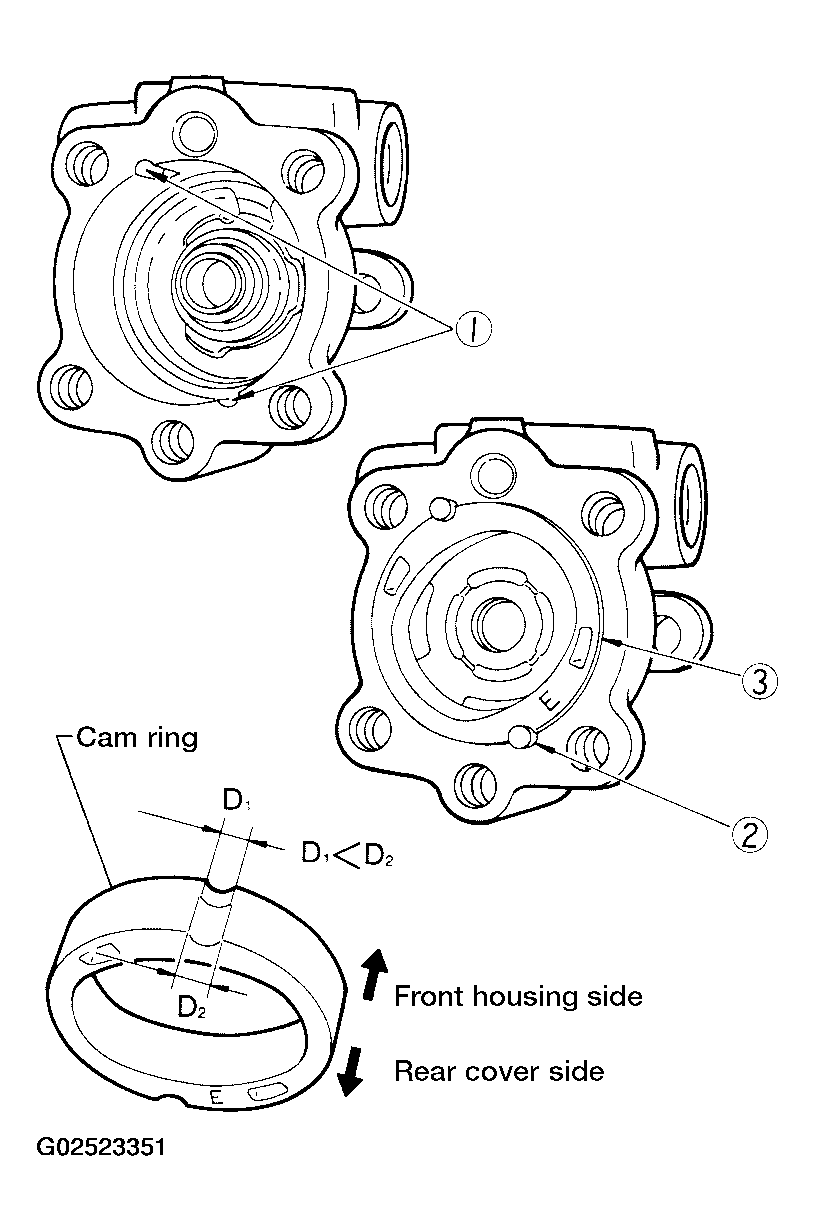

- Insert pin 2 into pin groove 1 of front housing and front side plate. Then install cam ring 3 as shown in the illustration.
Cam ring : D1 is less than D2
