Home >> Nissan-Datsun >> 2005 >> Altima SE-R, Standard >> Repair and Diagnosis >> Steering >> Power Steering System >> Power Steering Gear And Linkage >> Removal And Installation >> Notes

Removal And Installation: Notes

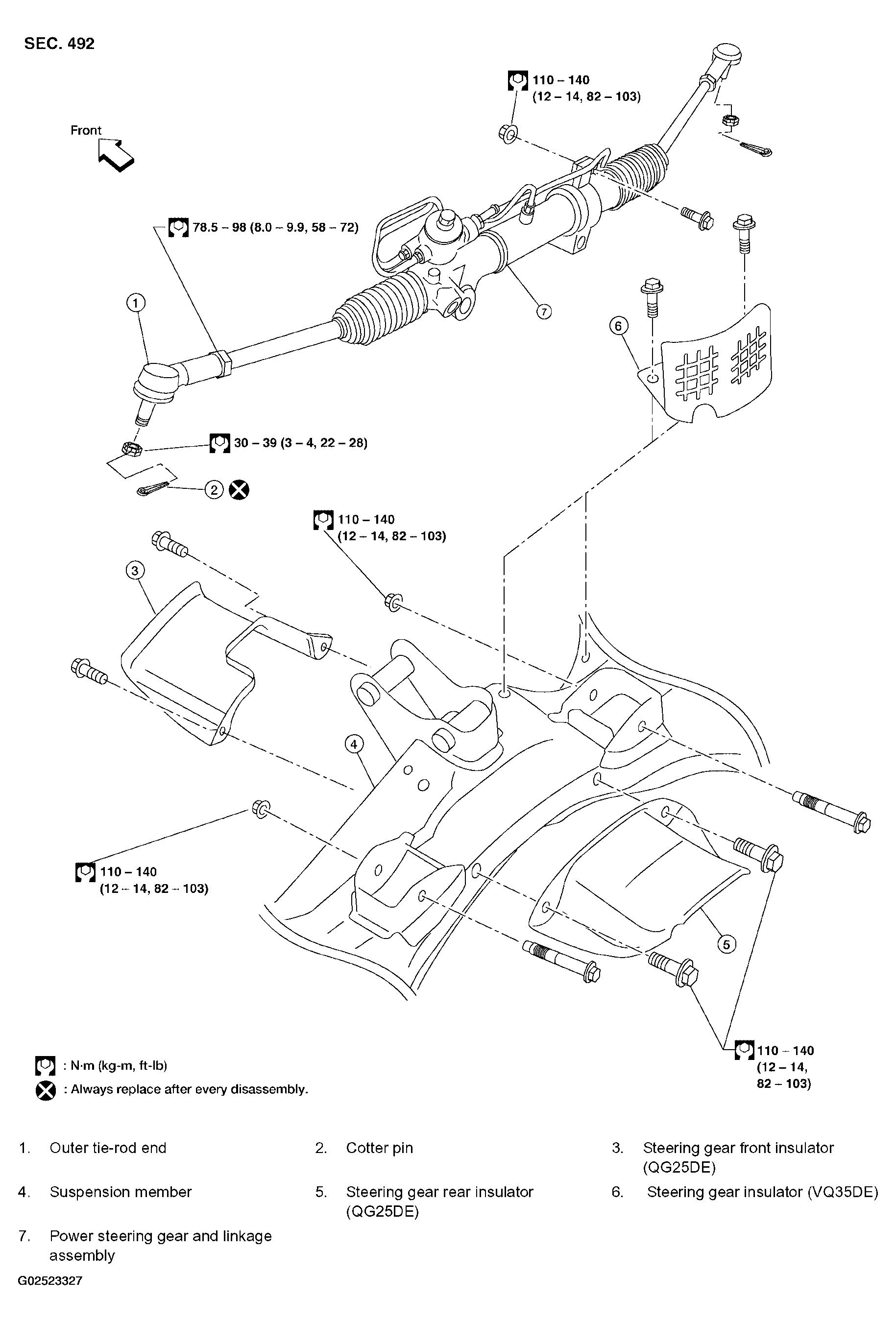

Fig 1: Identifying Rack Assembly

G02523327

Courtesy of NISSAN MOTOR CO., U.S.A.
