Removal And Installation

Refer to the illustration for hydraulic line routing. Remove any components to access lines.

CAUTION: Be careful not to kink or bend lines.

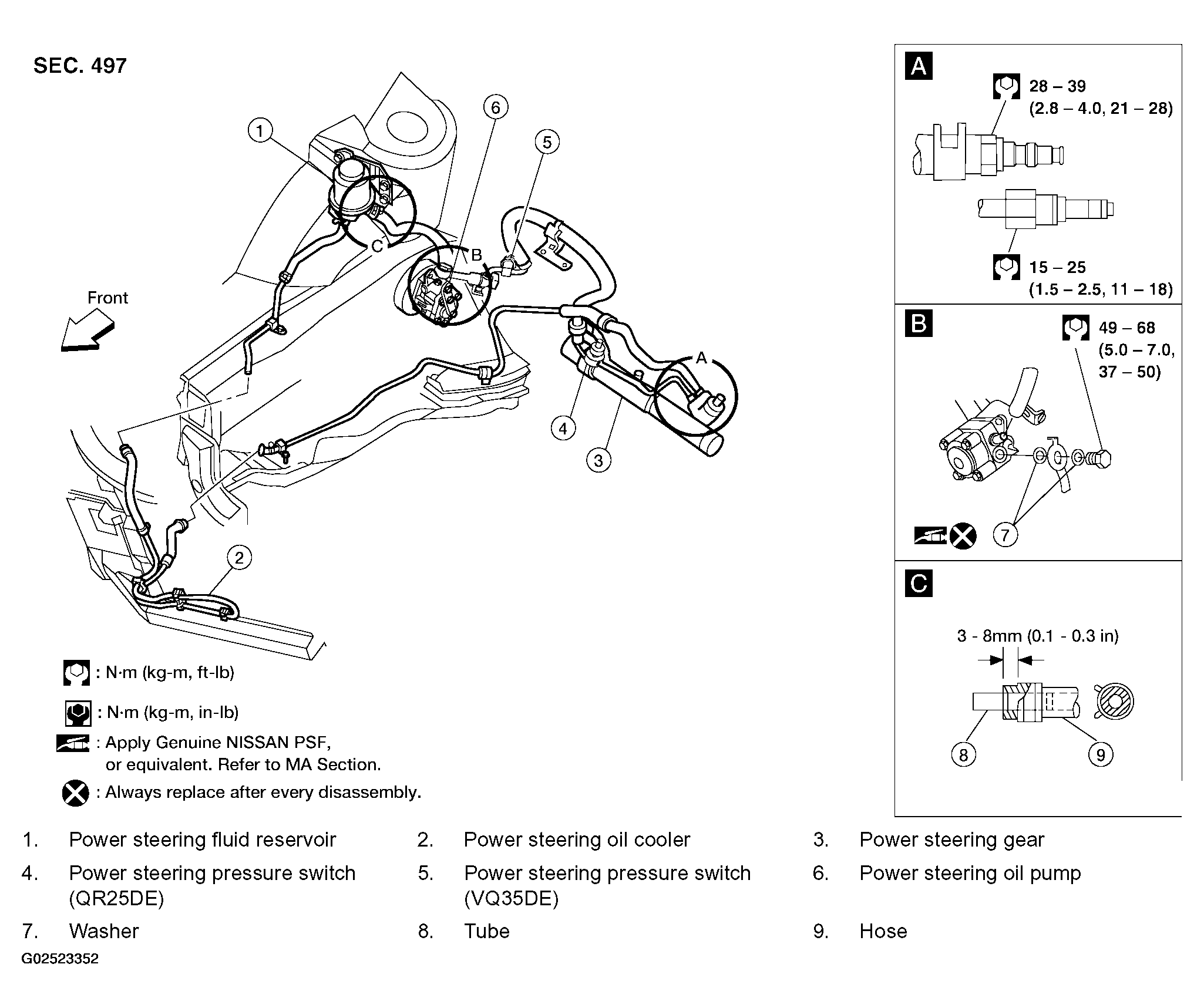

Fig 1: Identifying Hydraulic Line

Courtesy of NISSAN MOTOR CO., U.S.A.
