Altima SE-R, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control System - VQ35DE
>>
Trouble Diagnosis
>>
CONSULT-II Function (ENGINE)
>>
Active Test Mode
>>
Test Item
Test Item

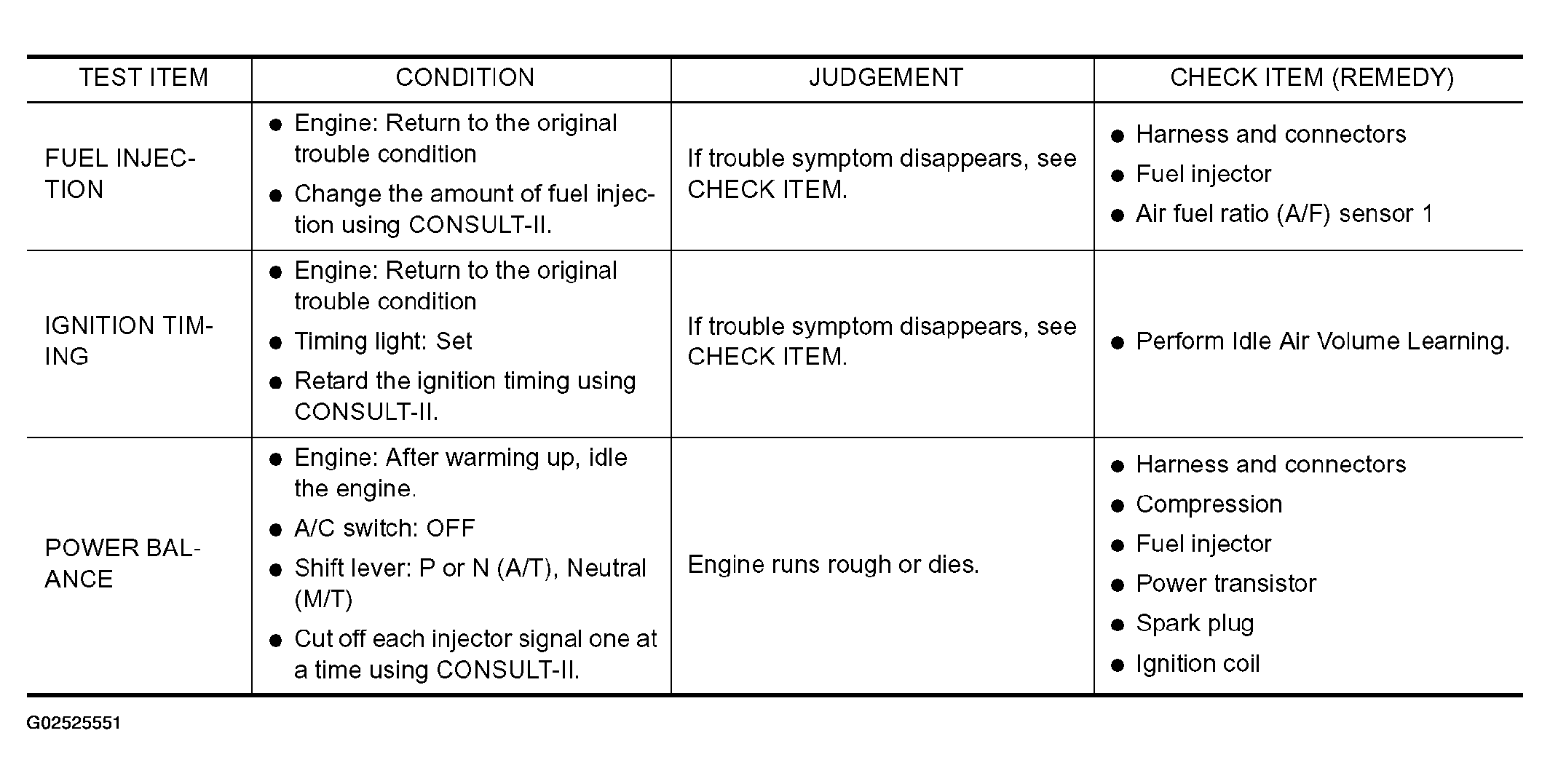

Fig 1: Test Item Reference Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

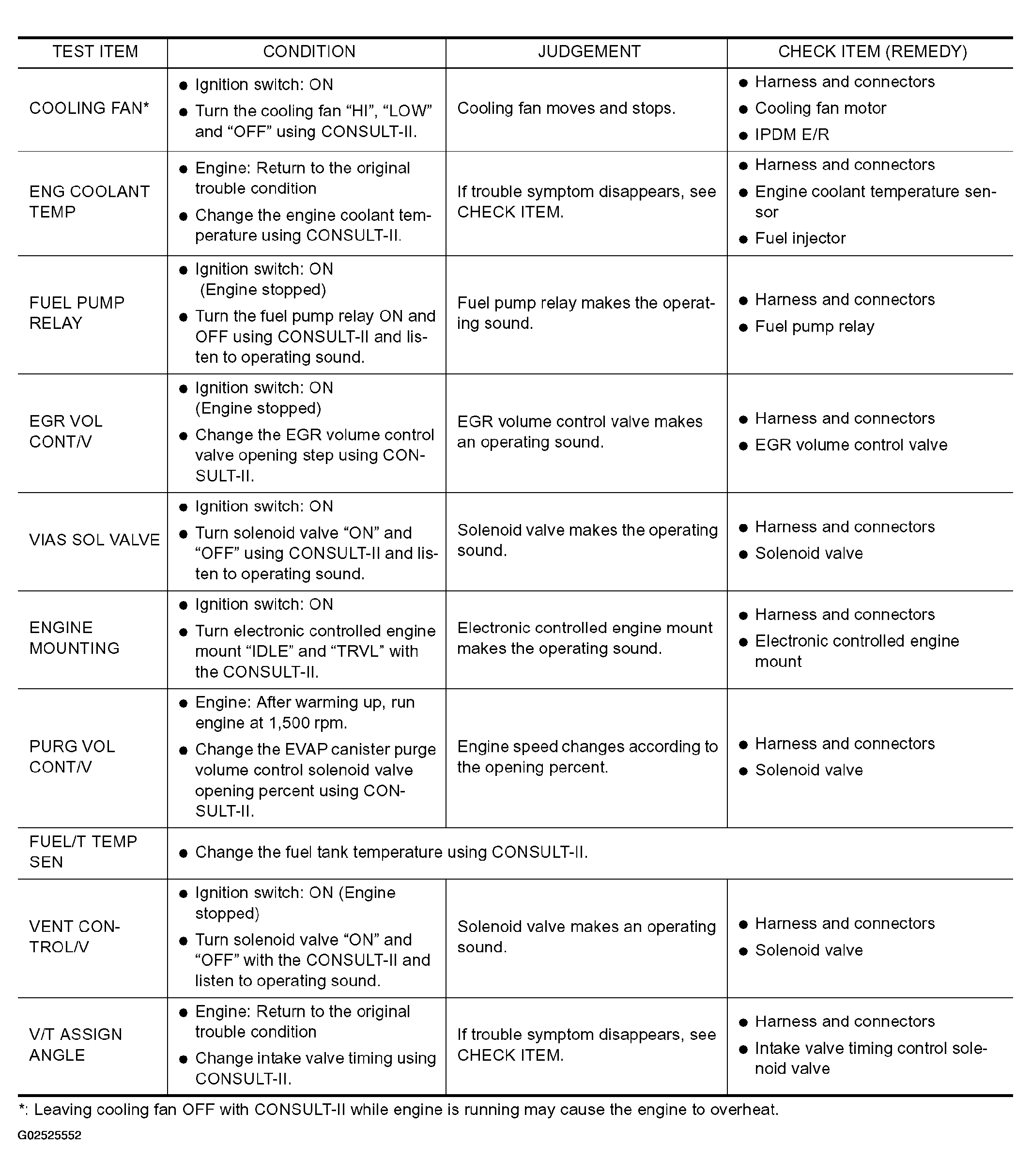

Fig 2: Test Item Reference Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
