Fuel Pump

  1. Disconnect "fuel level sensor unit and fuel pump" harness connector.
  2. Check resistance between "fuel level sensor unit and fuel pump" terminals 1 and 3.

    Resistance: Approximately 0.2 - 5.0Ω [at 25°C (77°F)]

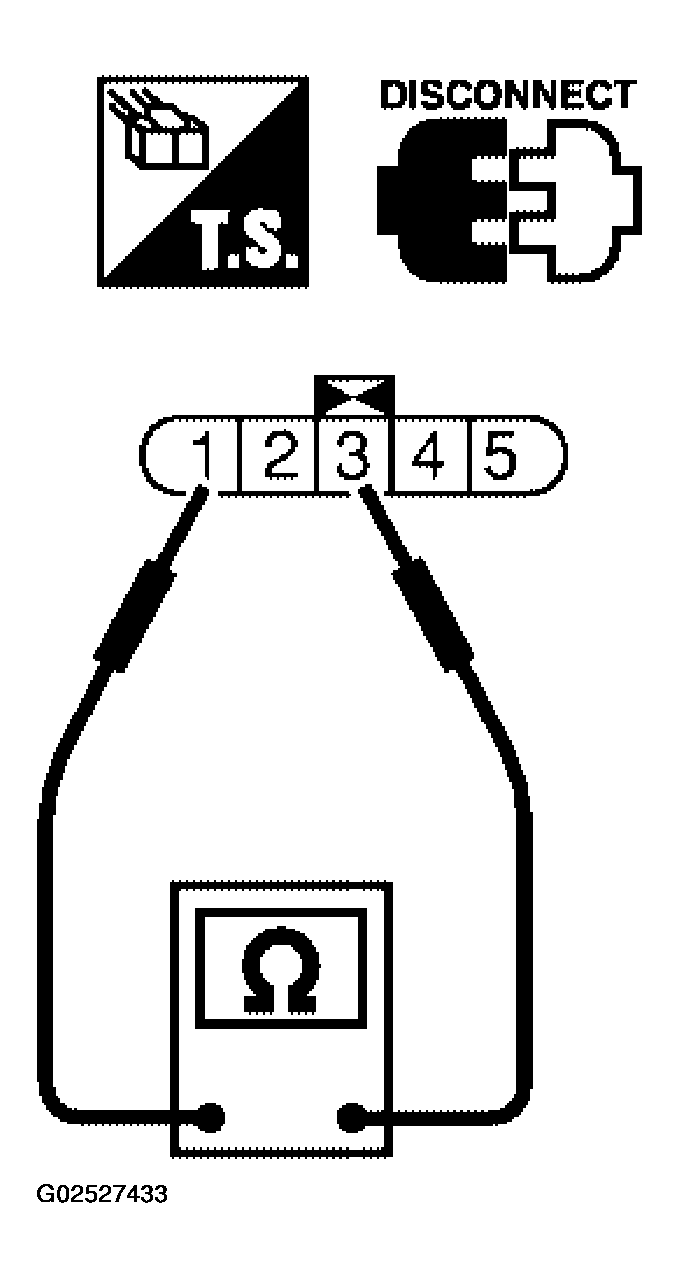

Fig 1: Checking Resistance Between "Fuel Level Sensor Unit And Fuel Pump" Terminals 1 And 3
G02527433Courtesy of NISSAN MOTOR CO., U.S.A.
