On Board Diagnosis Logic

If the EGR temperature sensor detects EGR flow under the condition that does not call for EGR, a high-flow malfunction is diagnosed.

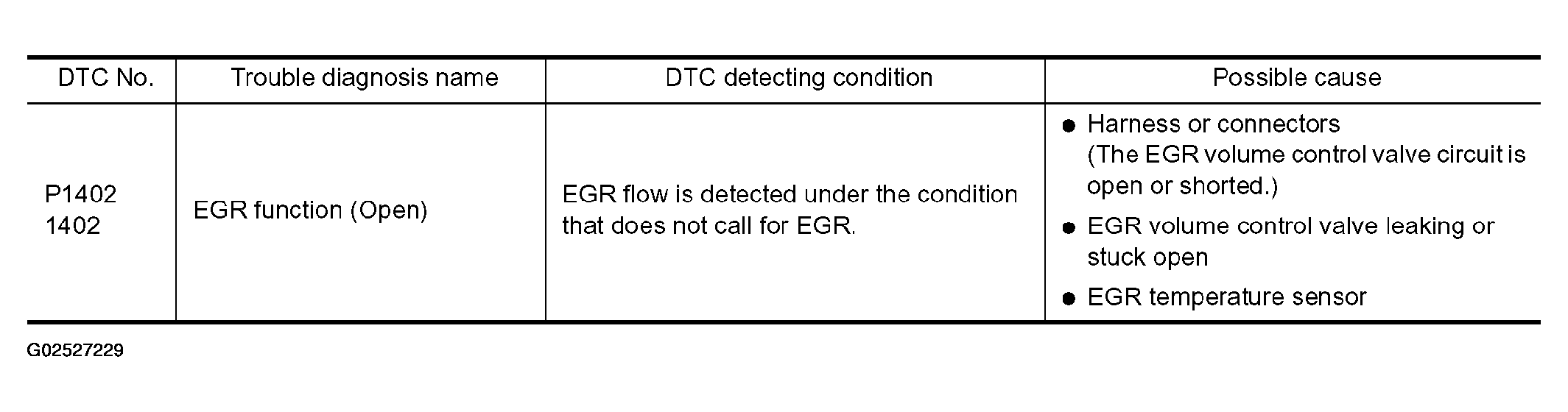

Fig 1: DTC P1402 Detecting Condition Possible Cause Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
