DTC P1217: Engine Over Temperature: Wiring Diagram

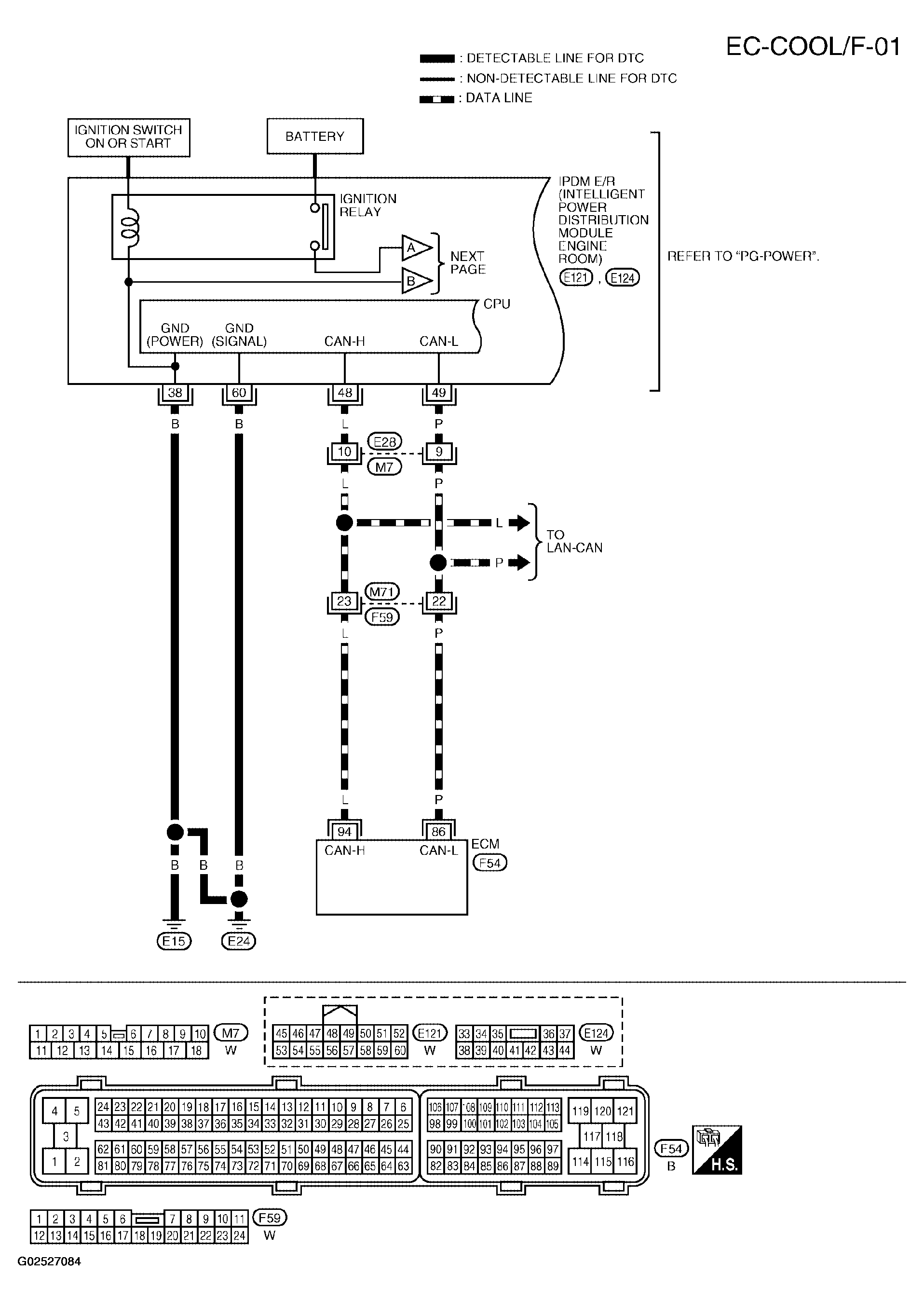

Fig 1: Wiring Diagram - EC-COOL/F-01

G02527084

Courtesy of NISSAN MOTOR CO., U.S.A.

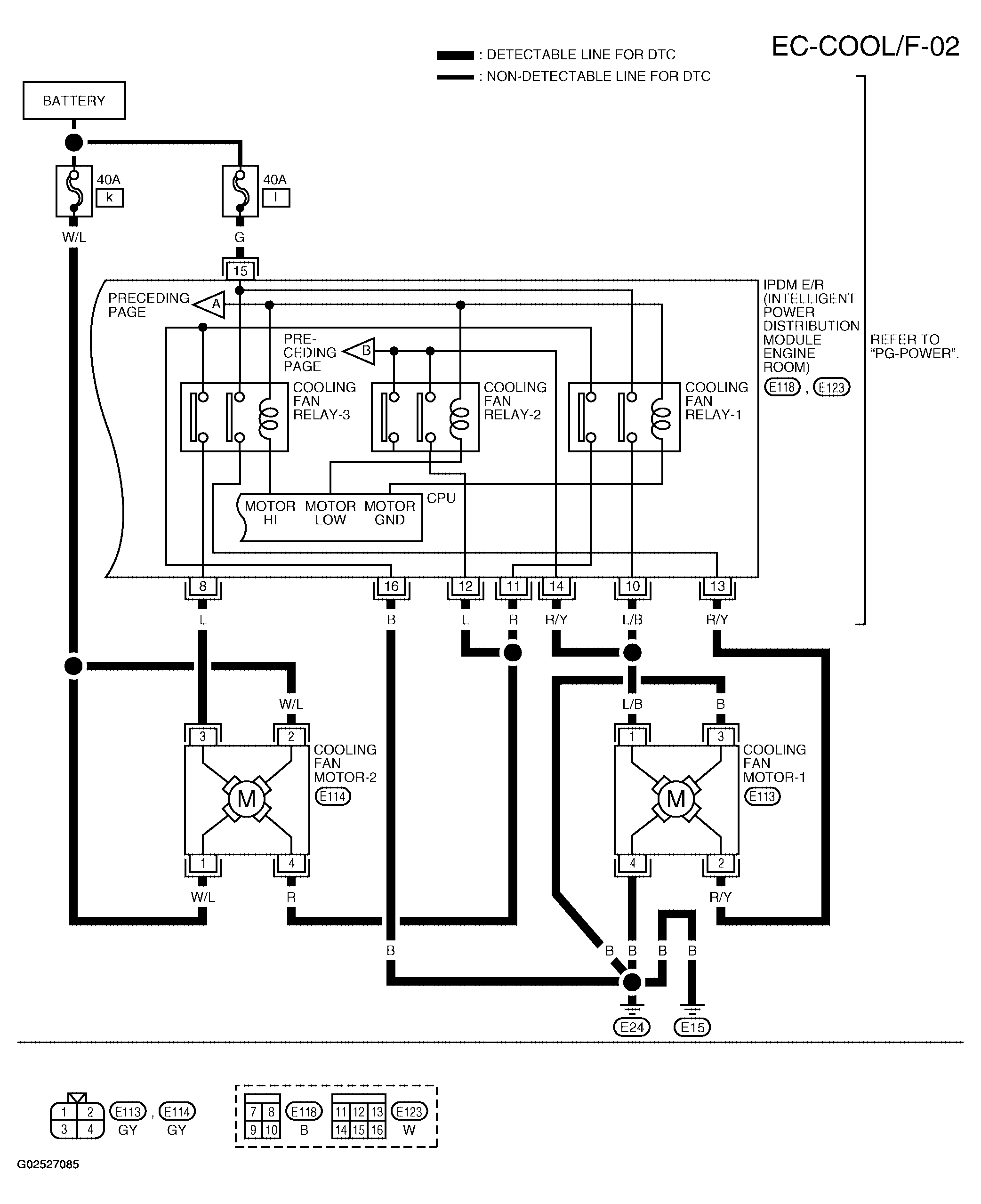

Fig 2: Wiring Diagram - EC-COOL/F-02

G02527085

Courtesy of NISSAN MOTOR CO., U.S.A.
