On Board Diagnosis Logic

NOTE: If DTC P0461 is displayed with DTC U1000 or U1001, first perform the trouble diagnosis for DTC U1000, U100Refer to "DTC U1000, U1001 CAN COMMUNICATION LINE ".

Driving long distances naturally affect fuel gauge level.

This diagnosis detects the fuel gauge malfunction of the gauge not moving even after a long distance has been driven.

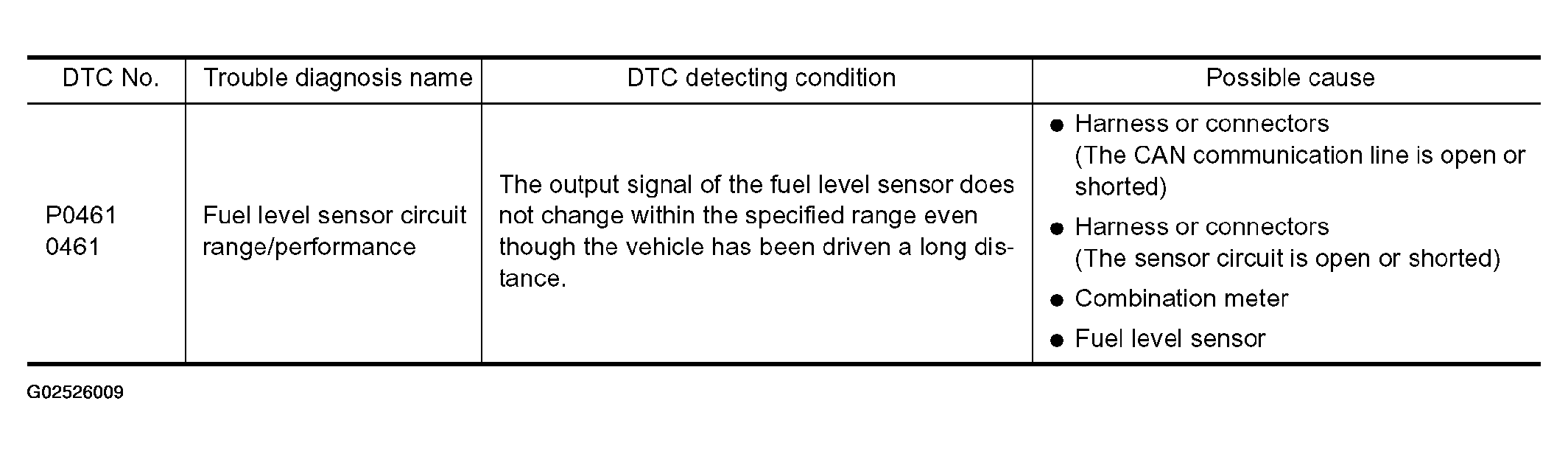

Fig 1: Diagnostic Chart
G02526009Courtesy of NISSAN MOTOR CO., U.S.A.
