Terminals and Reference Value for Combination Meter

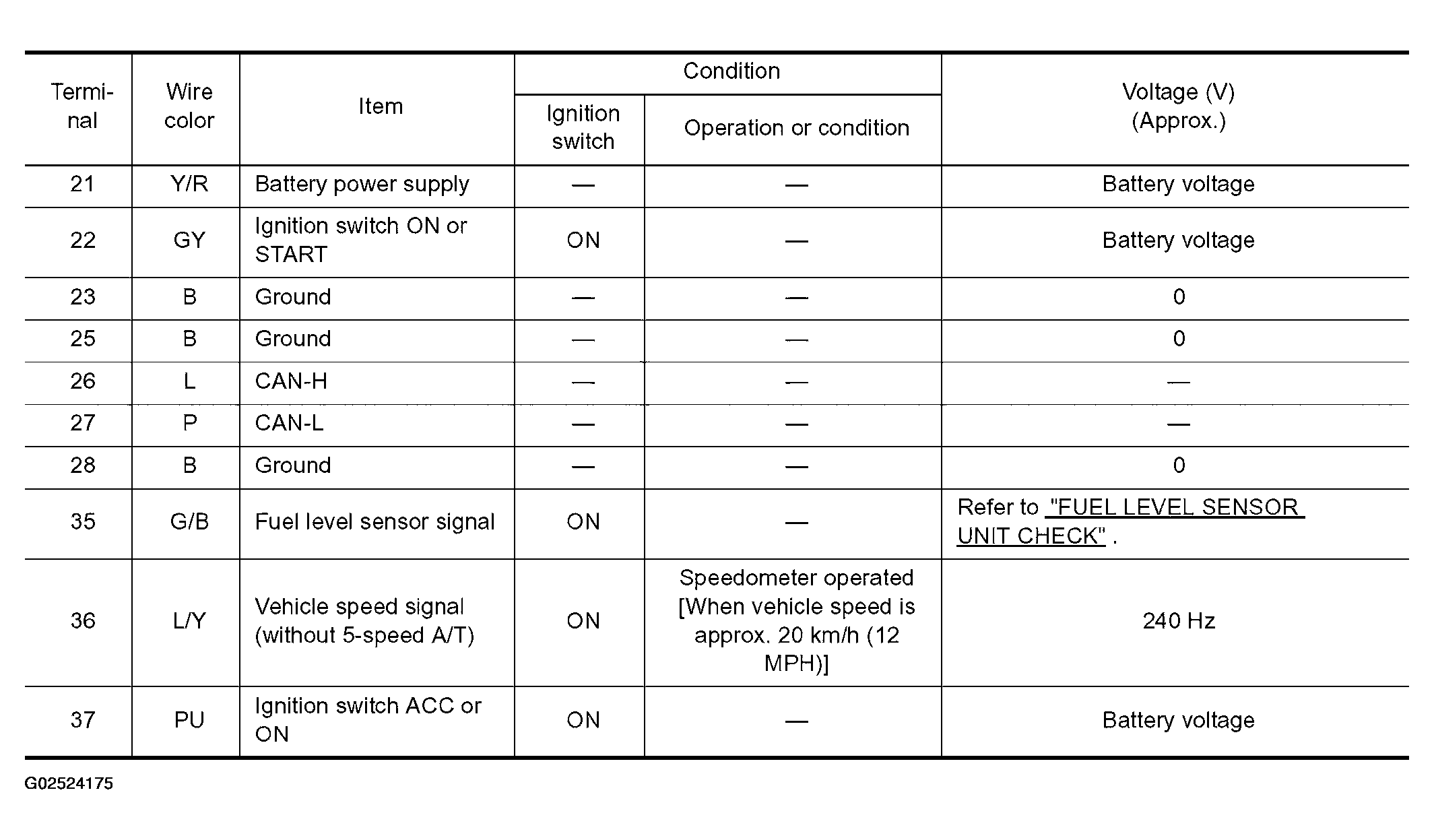

Fig 1: Combination Meter Terminals And Reference Value Chart

G02524175

Courtesy of NISSAN MOTOR CO., U.S.A.
