Preliminary Check

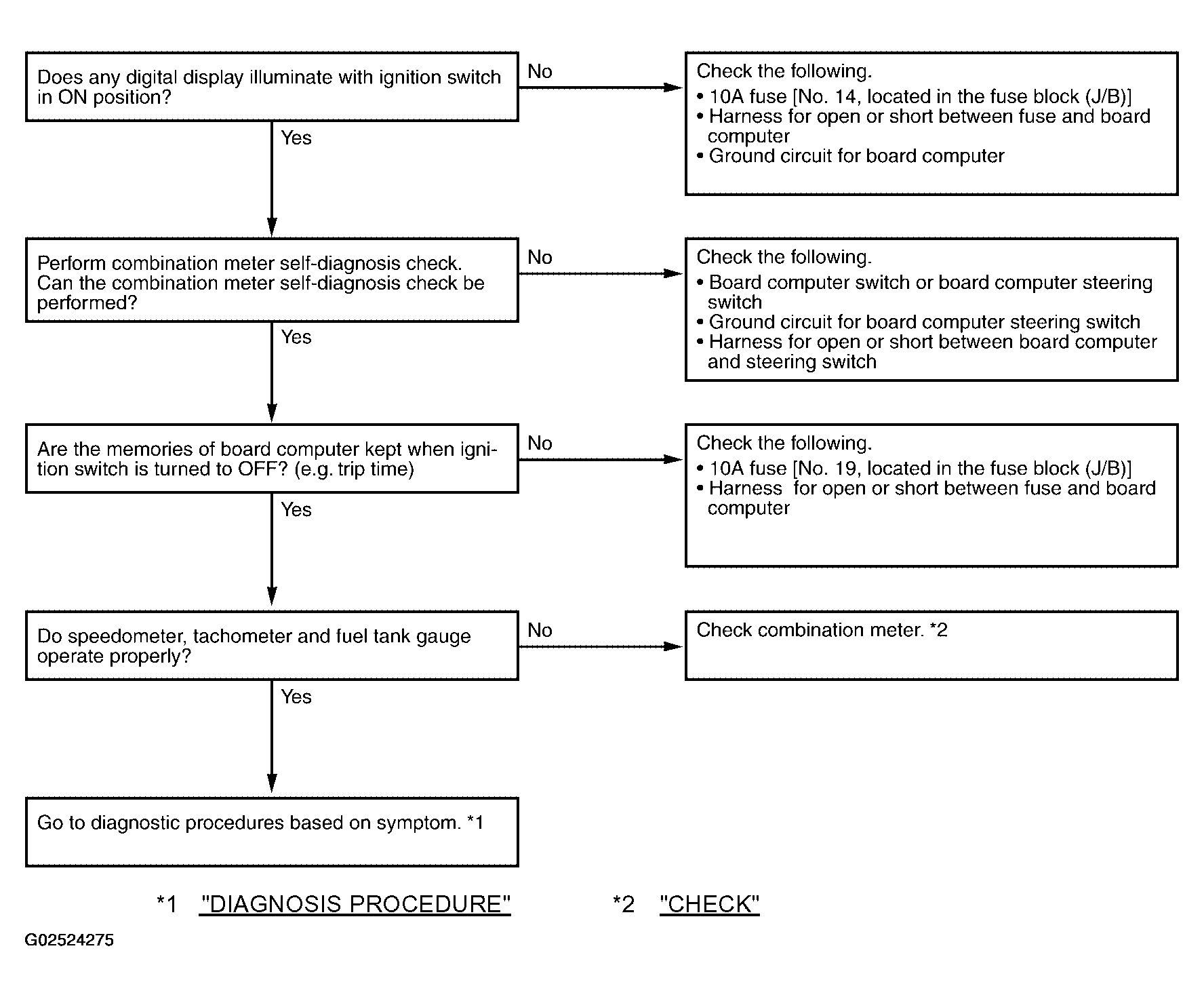

Fig 1: Trouble Diagnoses Flow Chart (Preliminary Check)

G02524275

Courtesy of NISSAN MOTOR CO., U.S.A.
