Instrument Panel Junction & Relay Blocks

NOTE: For instrument panel electrical unit locations, see Fig 1.

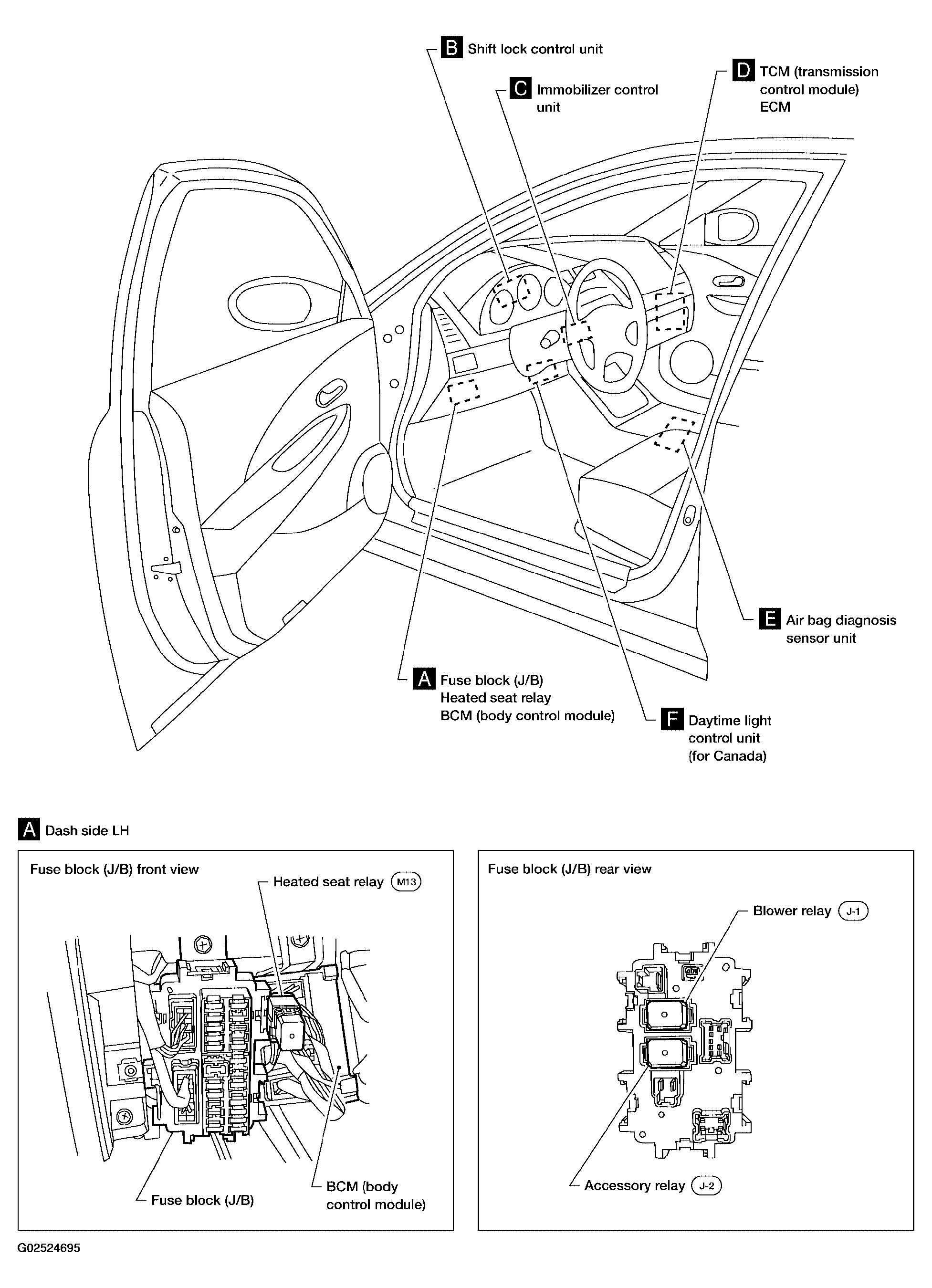

Fig 1: Locating Instrument Panel Control Units & Fuse Block
G02524695Courtesy of NISSAN MOTOR CO., U.S.A.

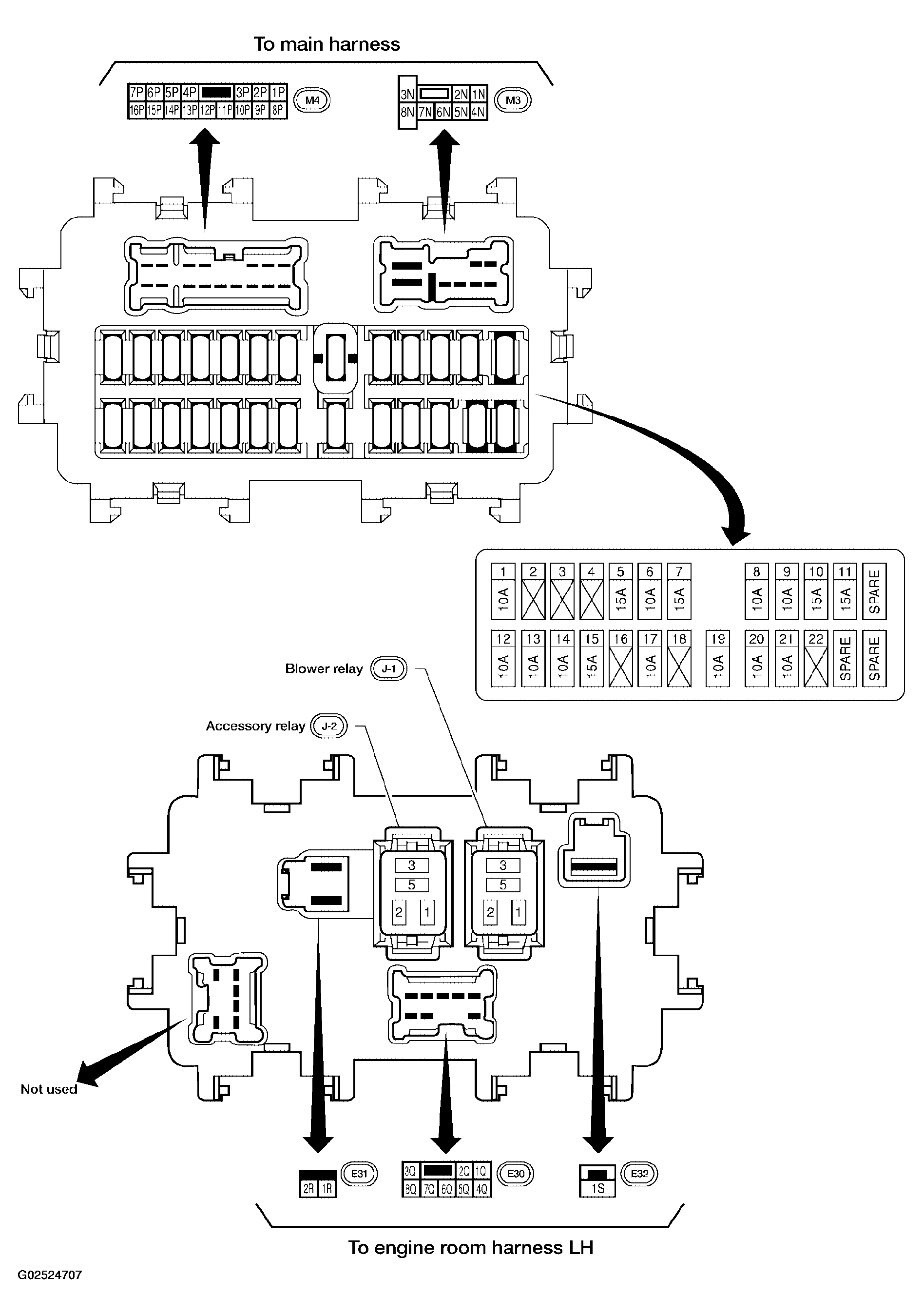

Fig 2: Identifying Instrument Panel Control Fuse Block Components
G02524707Courtesy of NISSAN MOTOR CO., U.S.A.
