Engine Compartment Junction & Relay Blocks

NOTE: For engine compartment electrical unit locations, see Fig 1.

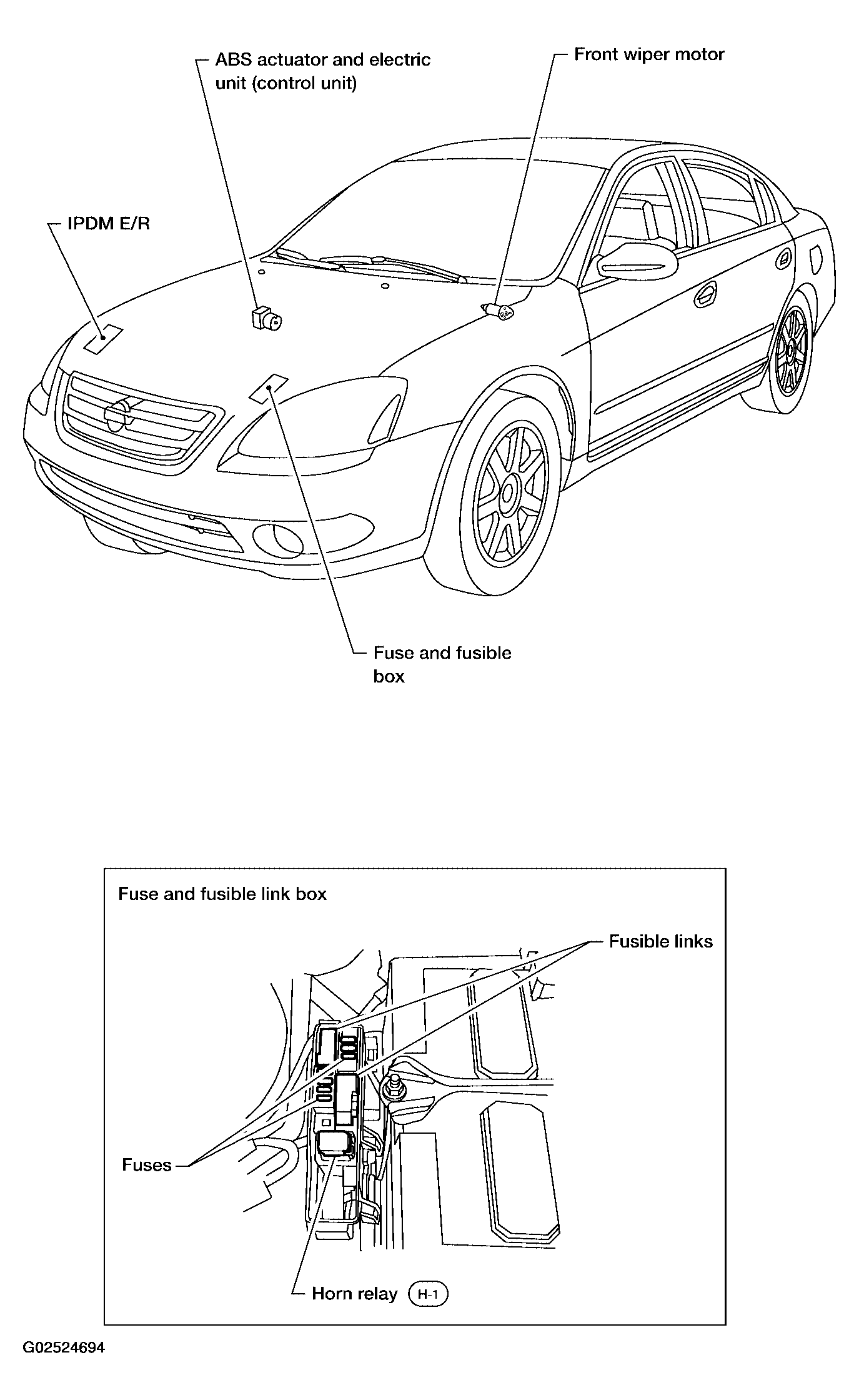

Fig 1: Locating Engine Compartment Fuse Link Holder & Fusible Link Box

Courtesy of NISSAN MOTOR CO., U.S.A.

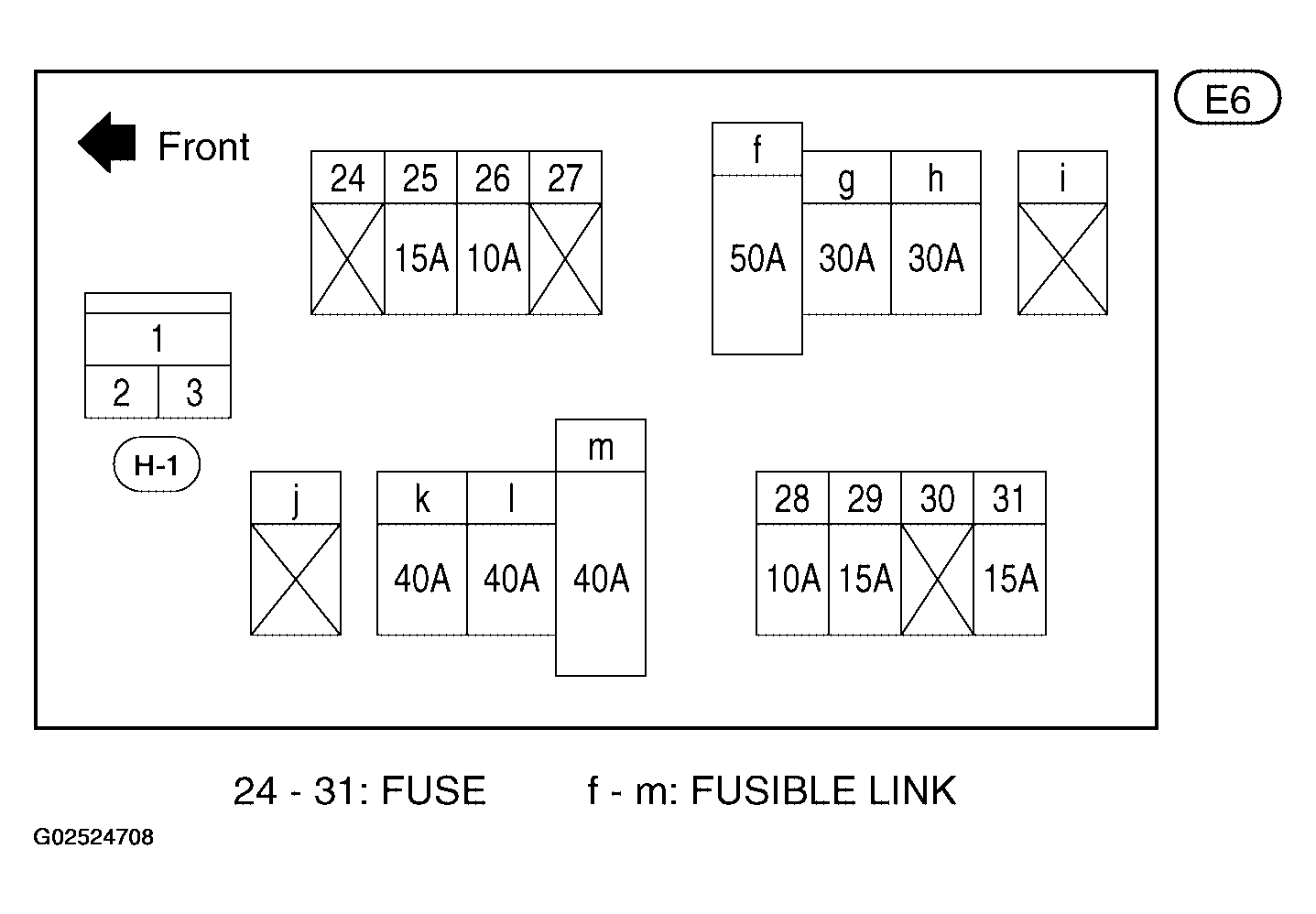

Fig 2: Identifying Fuse & Fusible Link Box Components

Courtesy of NISSAN MOTOR CO., U.S.A.

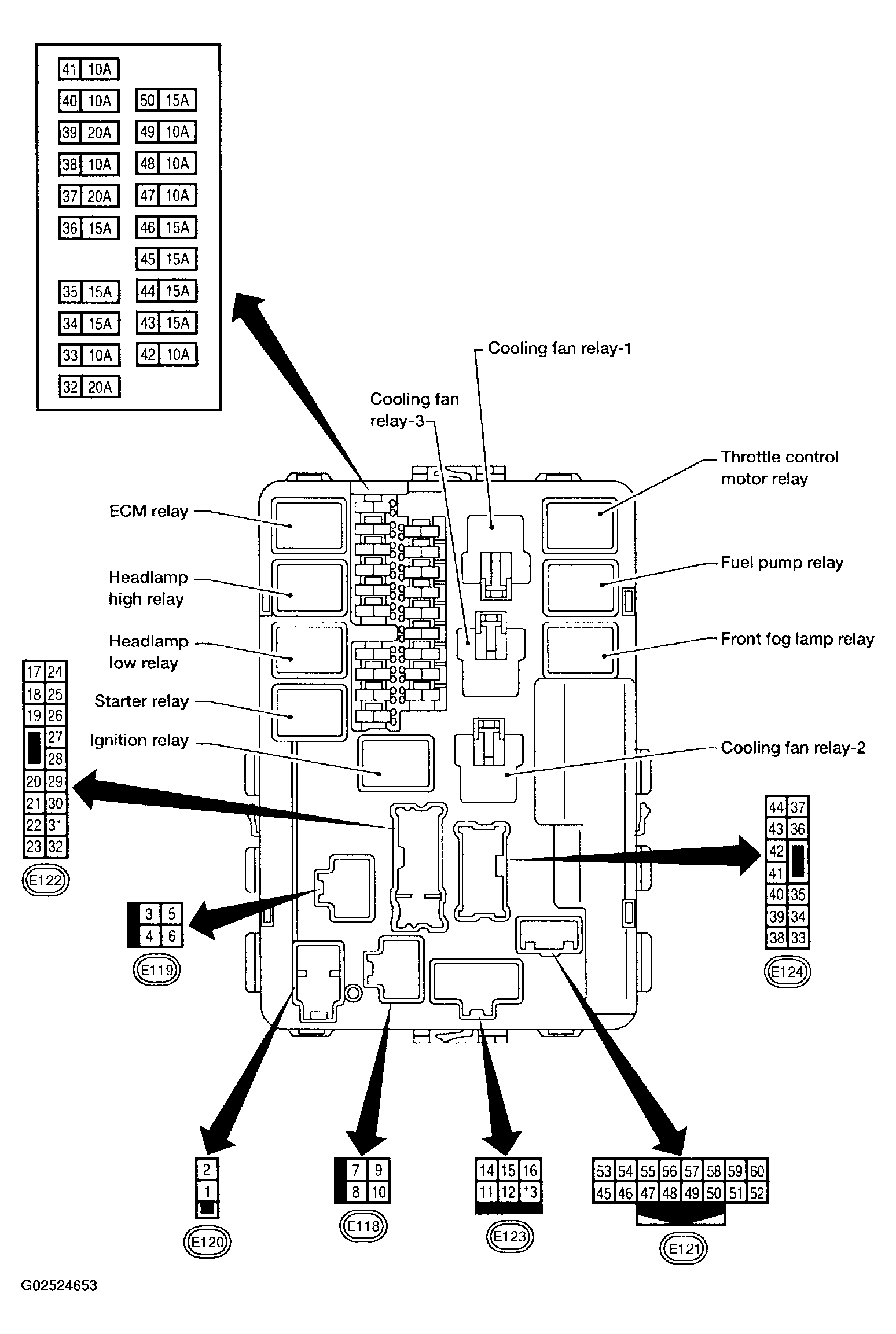

Fig 3: Locating & Identifying Intelligent Power Distribution Module Relays & Fuses

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: IPDM Relays (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

IPDM E/R RELAY IDENTIFICATION

RELAY DESCRIPTION
A/C Relay
Throttle Control Motor Relay
Tail Lamp Relay
CAUTION: IPDM E/R Integrated Relays Cannot Be Removed.

Fig 5: IPDM Relays (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

IPDM E/R RELAY IDENTIFICATION

RELAY DESCRIPTION
Front Wiper Relay
Front Wiper Hi Relay
Front Fog Lamp Relay
CAUTION: IPDM E/R Integrated Relays Cannot Be Removed.
