Wheel Hub: Installation

Installation is in the reverse order of removal.

• Check that the wheel bearings operate smoothly.
• Check that the wheel hub bearing axial end play is within specification.

  Axial end play : 0.1 mm (0.004 in) or less

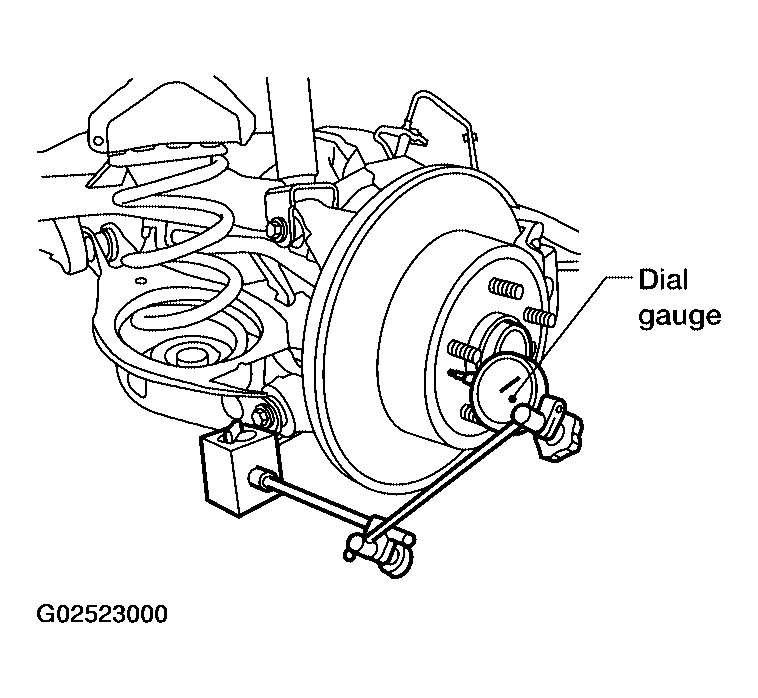

Fig 1: Checking Wheel Hub Bearing Axial End Play

Courtesy of NISSAN MOTOR CO., U.S.A.
