Trouble Diagnosis: Schematic

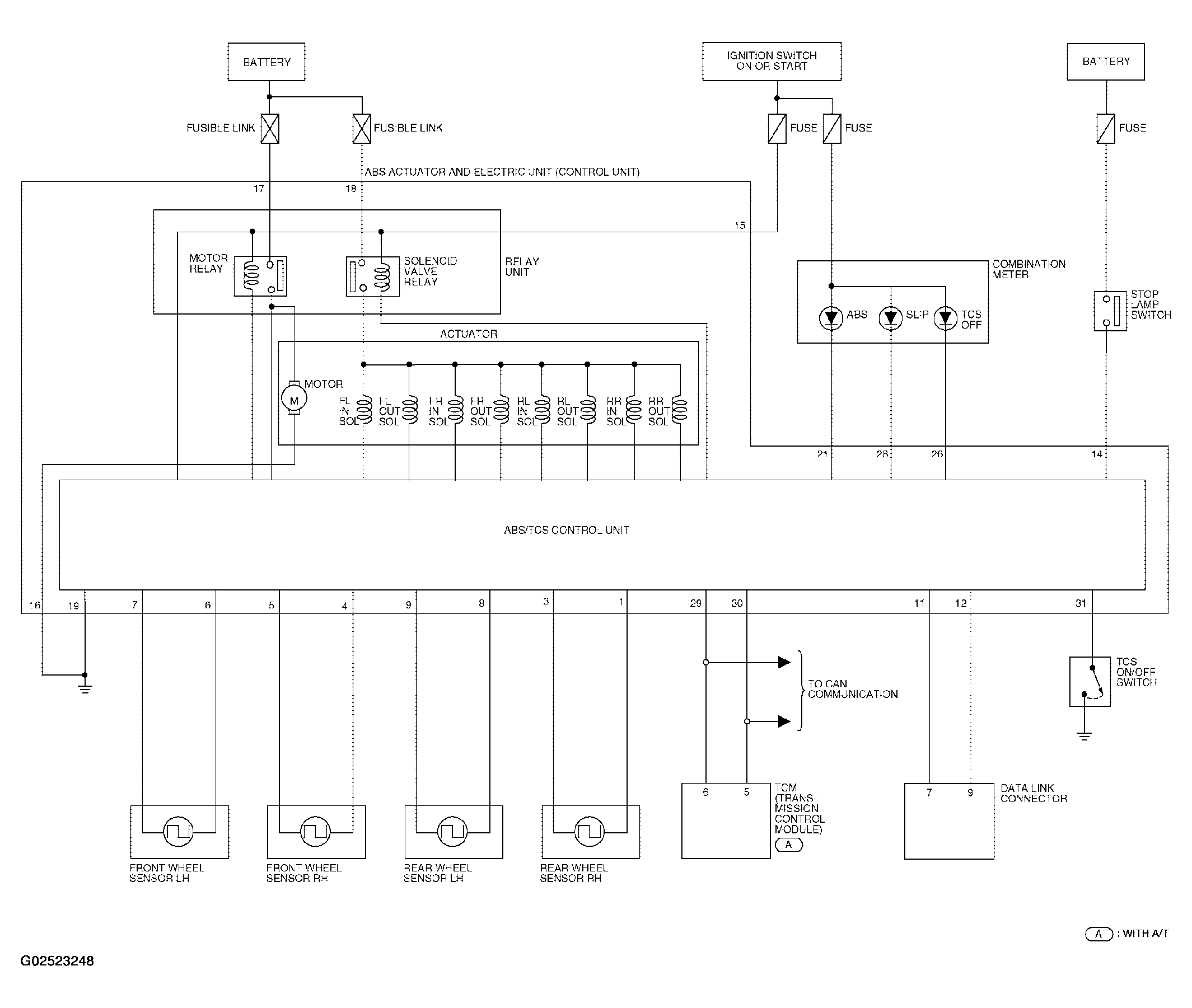

Fig 1: Schematic Diagram

G02523248

Courtesy of NISSAN MOTOR CO., U.S.A.
