Nissan-Datsun
>>
2005
>>
Altima SE-R, Automatic
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission (Re5F22A)
>>
Trouble Diagnosis
>>
Work Flow Chart
>>
Notes
Work Flow Chart: Notes

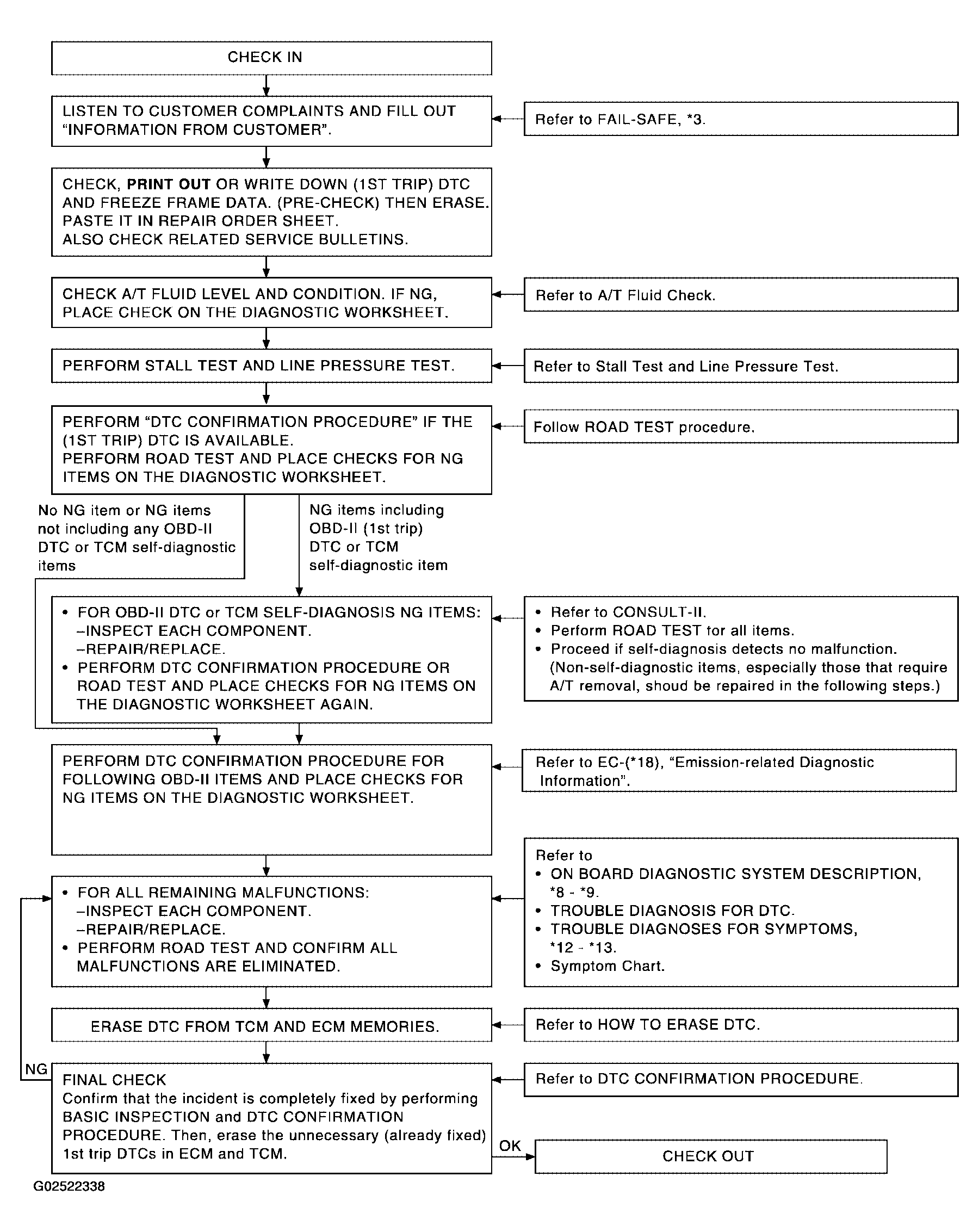

Fig 1: A/T Troubleshooting Work Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
