TCM Inspection Table

Data are reference value and are measured between each terminal and ground.

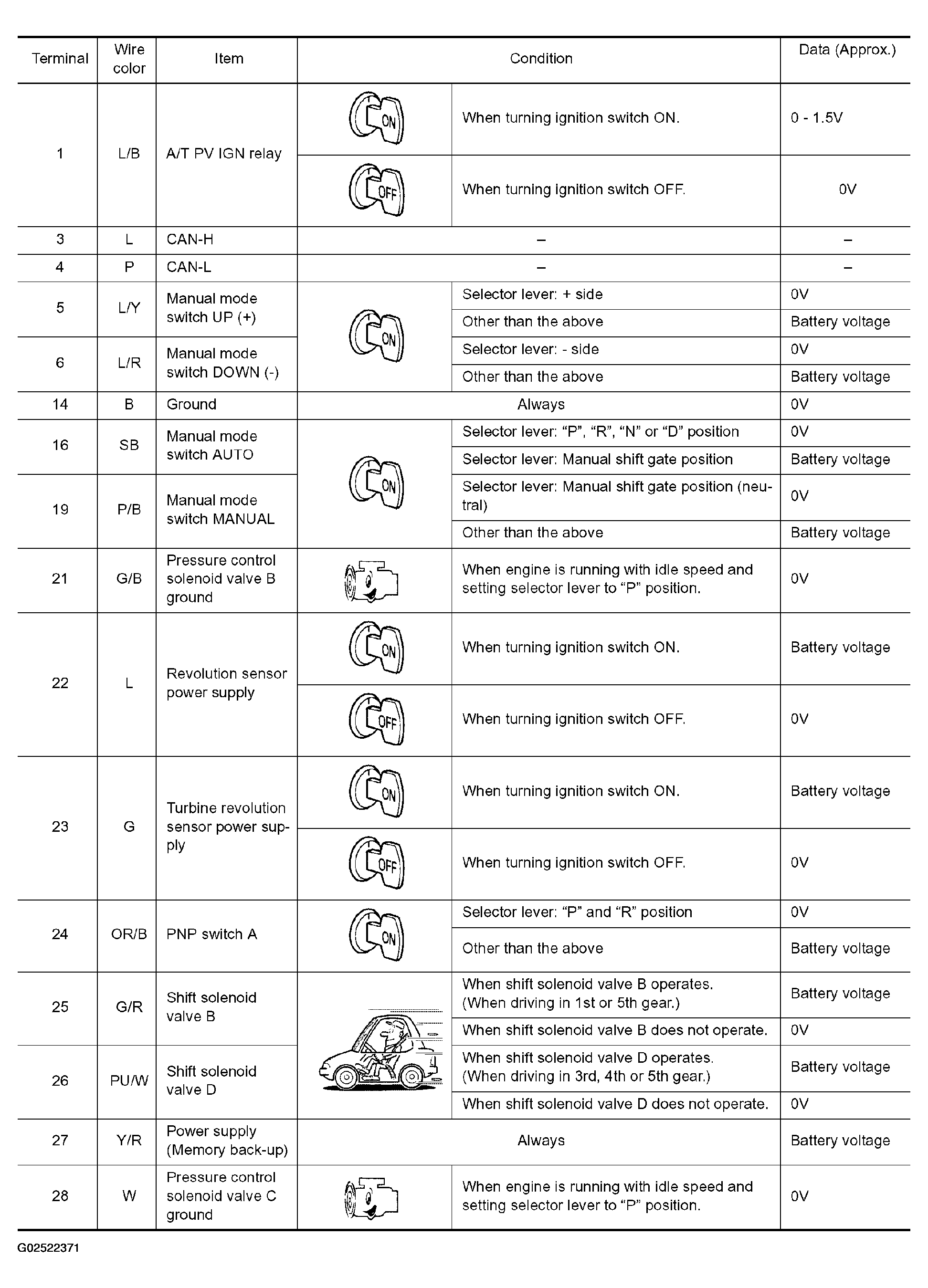

Fig 1: TCM Terminals Voltage And Resistance Chart (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

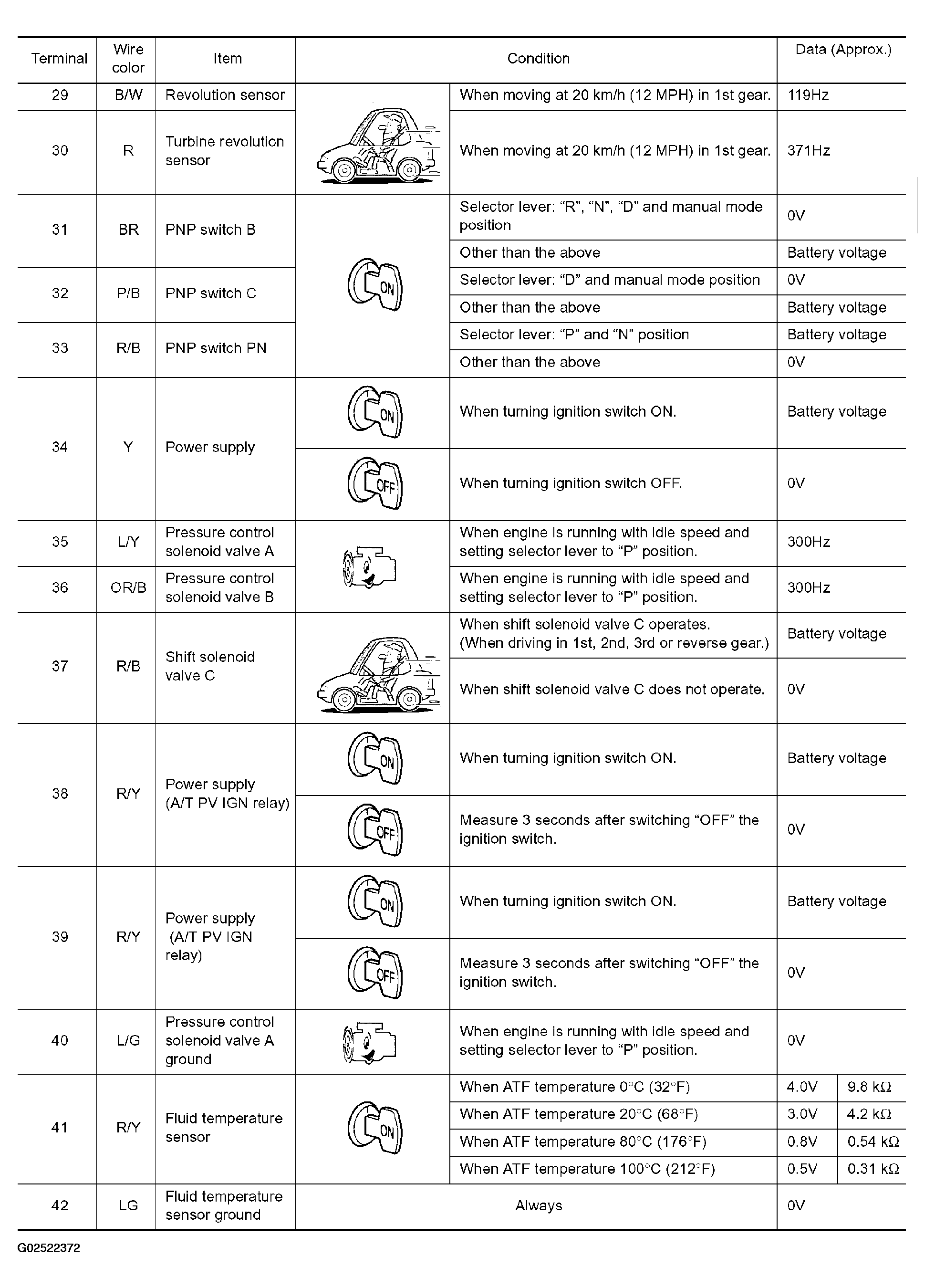

Fig 2: TCM Terminals Voltage And Resistance Chart (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

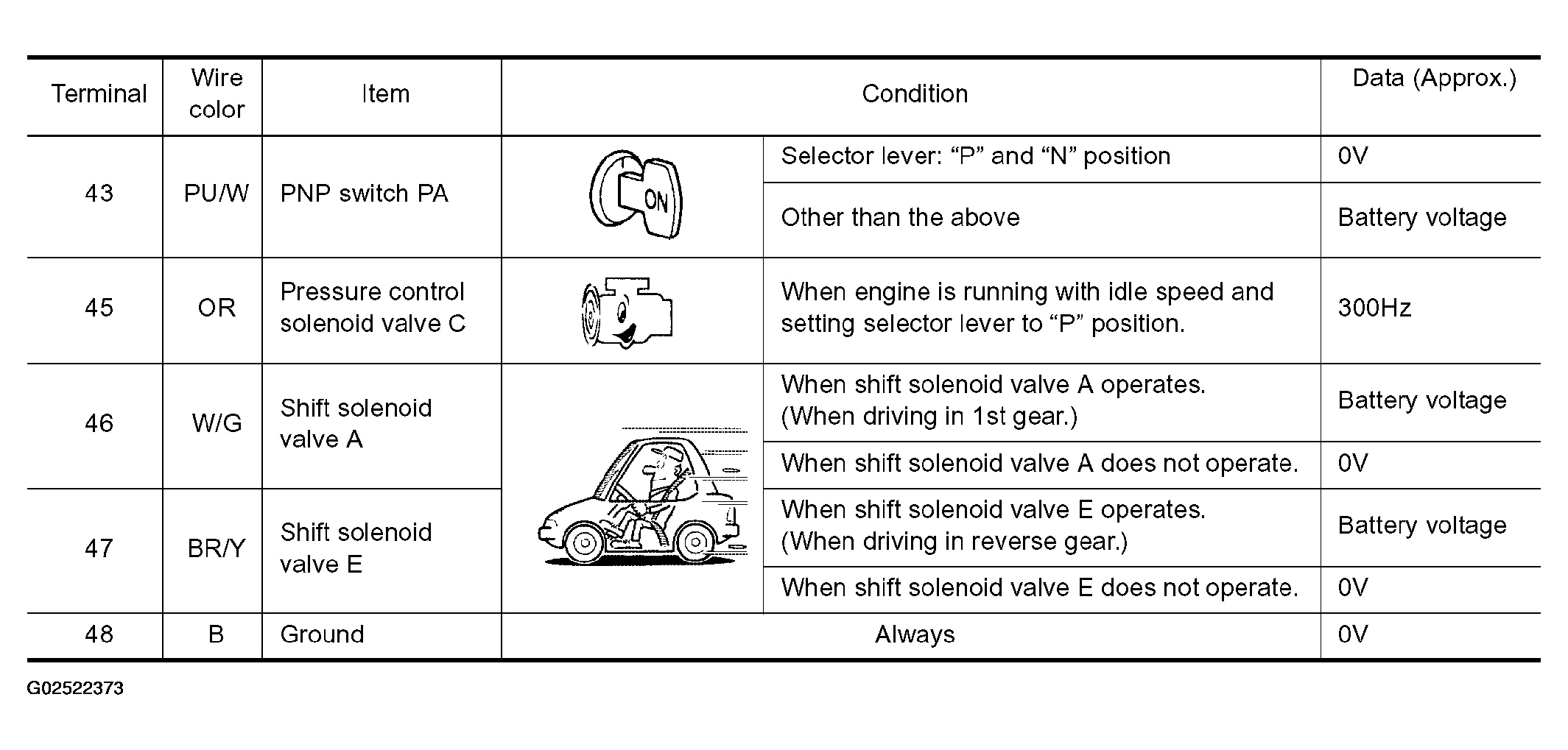

Fig 3: TCM Terminals Voltage And Resistance Chart (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
