Nissan-Datsun
>>
2005
>>
Altima SE-R, Automatic
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission (Re5F22A)
>>
Shift Control System
>>
Control Cable
Control Cable

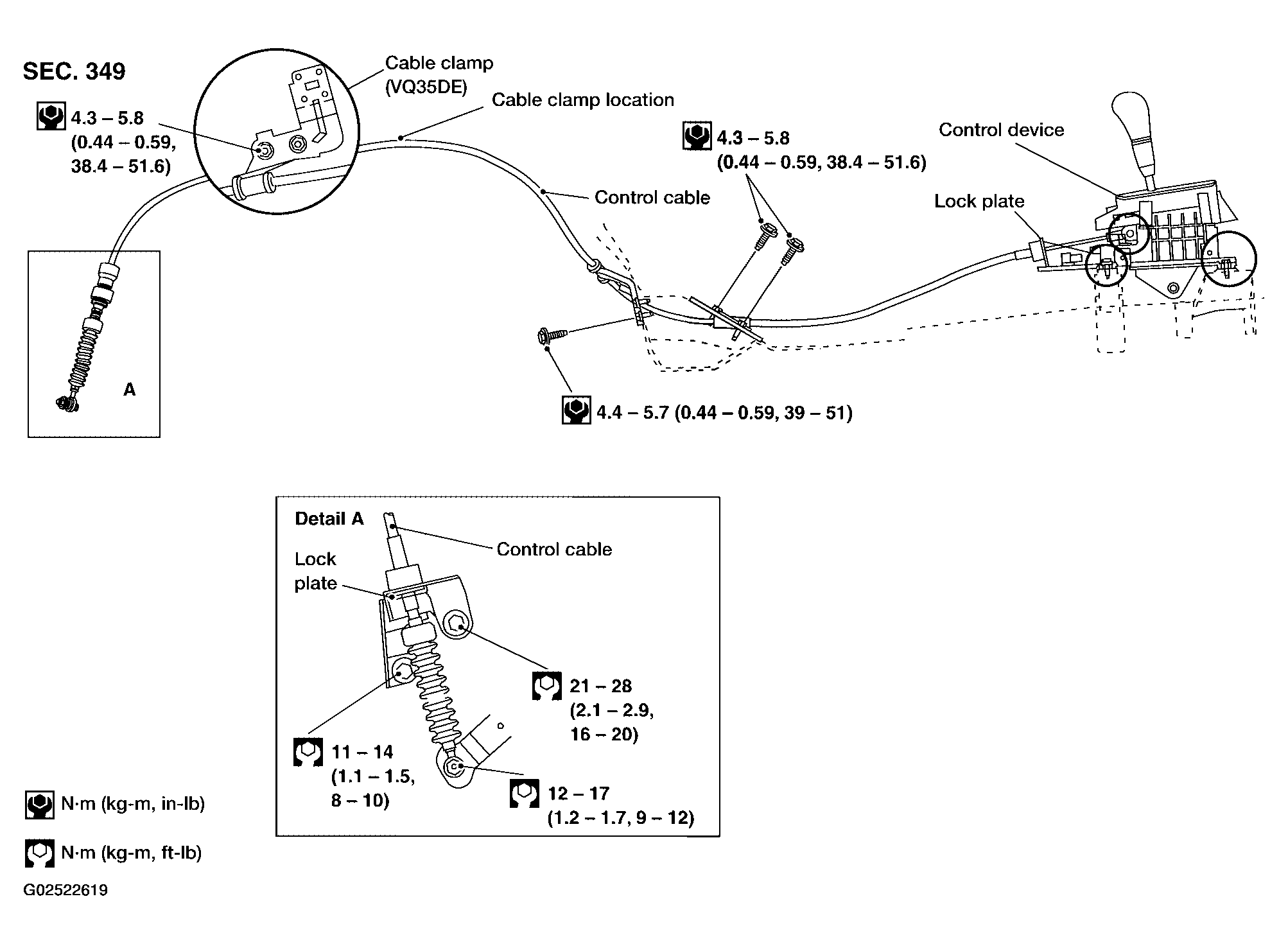

Fig 1: Control Cable -- With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
