Line Pressure

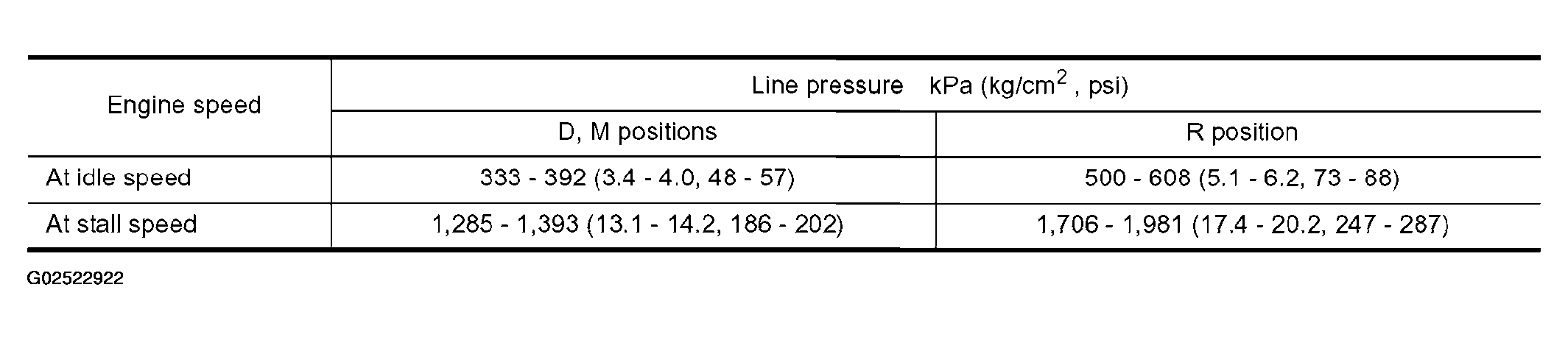

Fig 1: Line Pressure Specification Chart
G02522922Courtesy of NISSAN MOTOR CO., U.S.A.
